Adapters

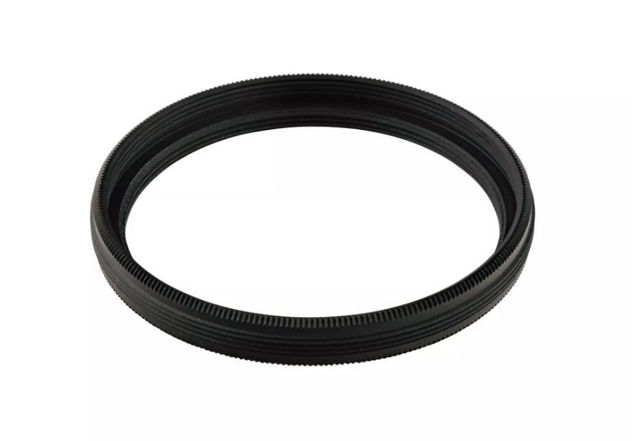

This adapter ring enables you to take colour and nebula filters with M48 and M52 thread

• Vixen M56 Filteradapter für M48mm und M52mm Filtergewinde
• Adapted to M52 thread for photo filters
• Adapted to M48 thread for astronomical nebula filters
• Can be used with the 60mm Wide Photo Adapters
• Female thread M48 x 0.75mm
• Female thread M52 x 0.75mm
• Male thread M56 x 0.75mm
• Dimension: 56 x 7 mm
• Weight: 7g
• High manufacturing quality "Made in Japan

New materials and improved design ensure greater precision and resilience with the Wide Photo Adapter

• Increased material strength for additional stability
• 6 screws hold the camera in position
• Screw tips with Delrin inserts prevent the camera from tilting
• Large interior diameter prevents shadowing
• 2 screw sets prevent scratches on the camera housing
• Black interior prevents scattered light
• Compatible with 60 mm accessories

The Altair M48 tilt adjuster is designed to give the perfect image field by making the CCD or DSLR camera sensor completely orthogonal to the telescope's optical axis.

The T2i-M28i TS adapter is only 10 mm long and allows eyepieces to be quickly adapted to the T2 external thread.

• Connection at telescope end: T2 (M42x0.75) female thread - widely used or easy to fit
• Eyepiece side mount: M28x0.6 internal thread - on some eyepieces the 1.25" filter thread is also used to connect to the barrel.
• The 10mm length saves valuable optical path
• The second image shows the use of the adapter between ORIR12 and TSOAG27 (eyepiece, illumination and off-axis guide not included).

With this adapter, you can precisely set the correct backfocus without the tedious experimentation with tuning rings.

• Simplifies setting the correct backfocus. M54x0.75 female thread on the telescope side
• M48x0.75 male thread on camera side optical length continuously
• adjustable from 16 to 20 mm

• Fixation with three M4 grub screws
• For reproducible focus position of 3" correctors on focusers with 3" clamping
• Simply slide over the 3" sleeve of the corrector and clamp

TS-Optics Adaptor with female T2 thread and male M48x0,75 filter thread

The adapter extends a male T2 thread to M48x0.75 (2") filter thread without increasing the length.

• Female thread: continuous T2 - M42x0.75
• Male thread: continuous 2" filter thread - M48x0.75
• Length: 4 mm - the mechanical length is optically not effective, as the adapter is completely sunken in the connection adapter

Allows you to fine-tune the backfocus without bending

•  Higher precision than with fine tuning rings
•  Adjustment range of 3 mm
•  Optical path of 15 to 18 mm
•  Reliably locked with 3 grub screws

Short adapter from 2" SC thread to T2 - length approx. 10 mm - for focal photography with Schmidt-Cassegrain telescopes.

• Telescope side connection: SC thread, female;
• Camera side connection: T2-thread (M42x0.75), male;
• Extremely short with only 10 mm length;
• Fits to all SC threads from Celestron, Meade, Sky-Watcher, Orion and to all construction types, like Schmidt-Cassegrain, Edge-HD, ACF;
• With this adapter and an optional T2 ring, you can attach your SLR directly to the telescope for doing focal photography.

The short adapter allows using 1.25" filters directly in front of the sensor.

• Male thread: T2-thread (male)
• Female thread: M28 filter thread / 1.25" filter thread (female)
• The adapter is so short that the female T2 thread of the ASI camera can be fully used for connection - see image at left

This adapter is necessary for connecting the full-frame 3" corrector from TS to the 2.5" focuser with M63x1 female thread.

• Thread at the telescope side: M63x1 thread (male)
• Thread at camera side: M92x1 (female)
• For focuser: 2,5" R&P focuser from TS and 2,5" Feather Touch focuser from Starlight Instruments

The adapter allows for example the connection of correctors with M63x1 thread to telescopes with M54x0.75 internal thread on the camera side

• Thread Extraction side: M54x0.75 external thread
• Thread camera side: M63x1 female thread - suitable for many correctors with the corresponding male thread

The digiscoping adapter BW-T2 allows attaching of cameras to BW spotting scopes from TS Optics.

• Suitable for, amongst others, all older TS BW spotting scopes, and also to all eyepieces with 37 mm connection thread
• Easy adaption - instead of the eyecup, the adapter is screwed to the eyepiece
• Suitable for SLR, mirrorless system cameras and also cameras with fixed lenses
• Connection adapters can be found in the "recommended accessories" section below

Two adapters in one

The projection and focal adapter consists of two parts - the projection part and the focal adapter. The projection part is used with an eyepiece for achieving a long focal length with small objects, e.g. for individual craters. Use the focal adapter without the use of an eyepiece so employing the focal length of your telescope - for taking photos of the entire Moon, gas nebula or galaxy.

• projection adapter for 1.25-inch eyepieces of up to 38mm outside diameter
• can be used as a focal adapter with a T2 thread
• continuous zoom - magnify the image by sliding the adapter further out

• Connection telescope side: M74x1 female thread
• Connection camera side: M54.075 female thread
• Length of the adapter: 11 mm
• Ideal for connecting M54 rotation adapters or reducers with M54x0.75 male thread to Skywatcher ESPRIT telescopes

Baader # 2954250 Hyperion / Morpheus M43 Extension for distance increase in astrophotography with Morpheus and Hyperion eyepieces

• Female thread M43x0.75 fits to the male thread on the eye side of the Morpheus and Hyperion eyepieces
• External thread M43x0.75 and APM Superzoom Okular
• Optical path 7.5 mm without external thread
