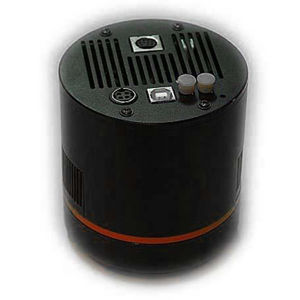

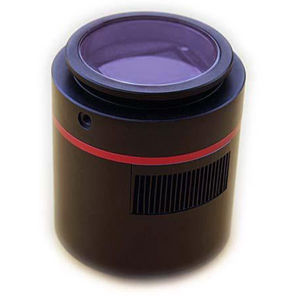

ALCCD11 Monochrome Astronomy CCD Camera

ALCCD11 Monochrome Astronomy CCD Camera

ALccd11 Monochrome Astronomy CCD Camera with full Format Kodak KAI11002 Sensor.
Manufacturer : Astrolumina
SKU : ALCCD11
Price: 4595.00 € incl tax 19% (Germany)
Delivery date : 1-4 days
Product description
ALCCD11 Monochrome Astronomy CCD Camera with Kodak KAI11002 Chip

Leading optics needs extraordinary cameras. The ALCCD is one of the top models and perfect for getting best results. It´s equipped with the best known full format sensor Kodak KAI11002.

This camera is a price sensitive alternativeto top-of-the-line CCD systems. But it offers the same image quality!

With its body weight of 21 oz. only the camera puts no stress to the focuser and allows easy framing with its rotatable M54 adapter.

Receive unparalleled true fields of view with the huge full format sensor, especially when combined with a short focal length astro camera!

Cooling:
  • 2-Stage regulated Peltier-Cooling, -40°C below ambient Temperature
  • separate Sensor Chamber
  • Refrigerant Finger, large heat conducting Strips and large special beared fan


Delivery contains:
  • Camera Head with M54 Rotation Adapter
  • Power Supply Box DC-201 and Connection Cable
  • USB-Cable
  • Software and Driver
Products specifications
ConnectionsUSB2
Backfocus17 mm
ADC16 bit
Sensor typeKodak KAI 11022 monochrome
Horizonal Resolution4008 Pixel
Vertical Resolution2672 Pixel
Pixel10709376 Pixel
Pixel size9 mµ
Pixel fullwell capacity60.000 electrons
Anti blooming gate1000 x
Sensor TypeFront illuminated
Power SupplyPower Supply Box DC-201
AccessoryUSB2.0 Cable, Software
Binning1x1 , 2x2 , 4x4
Weight21 oz.
Diameter105 mm
Dimension80 mm Hight
Sensor size45.26 mm diagonal
Cooling2-Stage Peltier Cooling, 40°C below ambient Temperature
QE46 % (blue), 46 % (green), 30 % (H-alpha)
Readout noise typical12 e
Readout timeca. 11 Seconds each Frame
Connection to telescopeM54 Adapter
