Focus your telescope accurately and quickly using this powerful universal motor focus kit.

Compatible with all major astronomy software via the Altair ASCOM driver interface.

USB power source means only one cable connection. No external motor controller required.

Comes with mounting bracket, fasteners, temperature sensor, and hardware, plus hand controller for rapid setup.

The CNC machined universal mounting bracket has a slot and hole pattern to fit most telescope focusers. Can also be attached to a telescope dovetail plate or bar by means of the bracket.

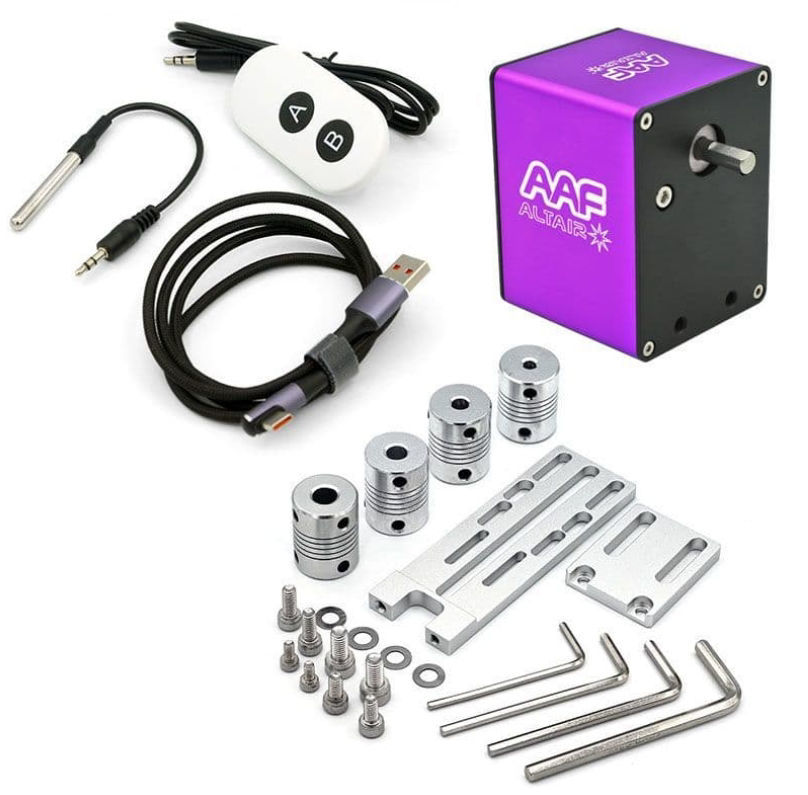

What the Motor Focus Kit package includes:

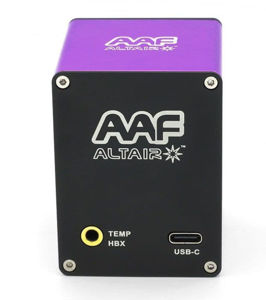

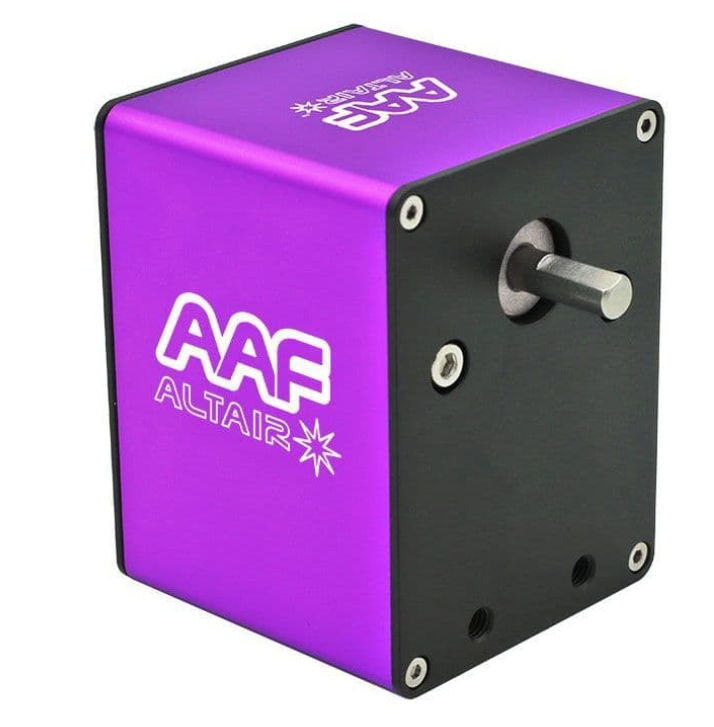

• Motor focuser body.
• Universal mounting bracket with screws and washers.
• 4x motor shaft couplers (fits focuser spindles from 5mm to 7mm range). 4mm, 5mm (most common), 6mm and 7mm.

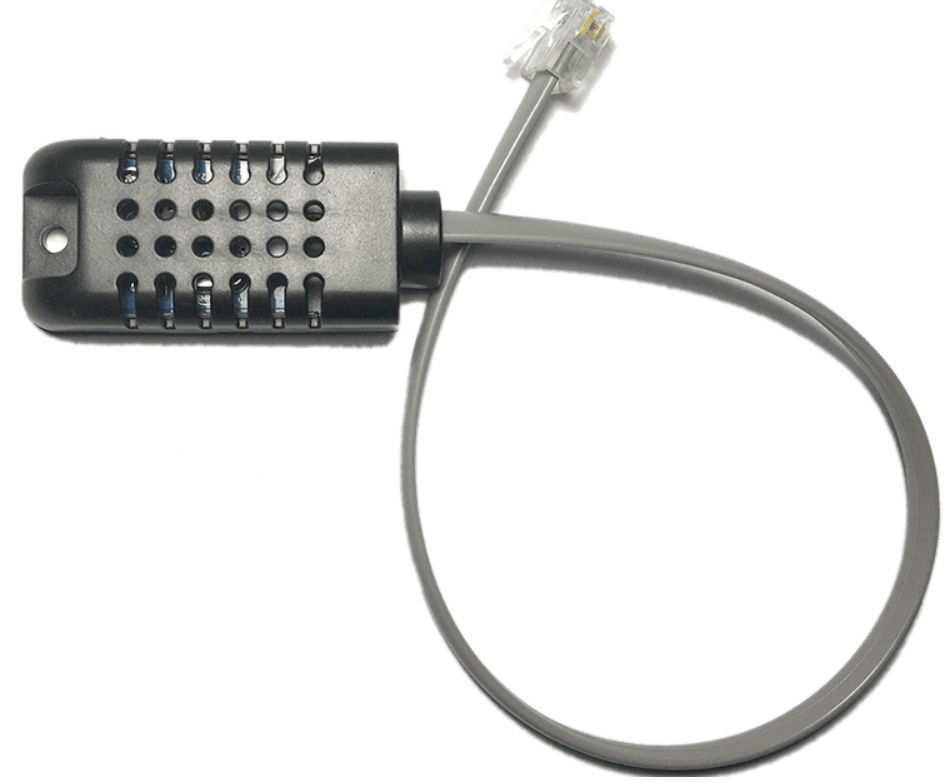

• Temperature sensor.
• USB cable.
• Hand controller for setup.
• ASCOM Drivers downloadable at www.altairastro.help (basic email registration required).

Technical info:

• All metal Aluminium enclosure
• Dimensions 45x60x47mm
• Effective Torque: 1.2N/M
• Power source 5v USB cable.
• USB connection socket Type-C
• Operating temperature is +/-30°C (Storage temperature 25°C
• Standby power consumption: 5.08V / 0.049A
• Operating power consumption: 5.06V / 0.185A
• Min step resolution 0.0625°
