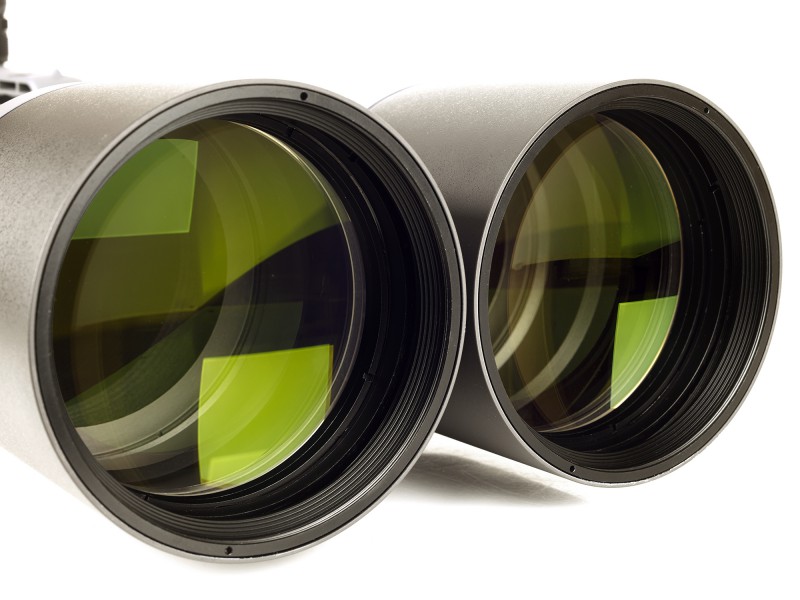

With almost 5 inches of aperture on each side, you can dive into the observation of areas with very interesting objects and details. Our large 120mm binoculars are made for the sophisticated amateur astronomer and semi-professional nature watcher.
These binoculars allow i.e. a very detailed moon observation as well as studies in nebula regions, star clusters and the observation of distant planets. Thanks to the excellent, apochromatic SD glass optics, the objects are displayed crisp and with very high contrast. This binoculars class can still be mounted on photo tripods (strongly recommended) and is equipped with a stable handle. By changing the eyepieces, these binoculars are much more flexible than fixed-magnification models. The entire body construction is solid and durable.
Our range of 120mm binoculars offers a very good price-performance ratio and will be your reliable companion for many years! The 90° viewing position enables comfortable observation of high altitude astronomical objects without deficits in ergonomics.
In this equipment variant, we deliver our stable 1-arm center mount, which enables mounting on a tripod and facilitates longer observation sessions.
Characteristics:
- High quality, apochromatic SD primary optics
- BAK-4 prism system
- High quality multi-coatings of all optical components
- Variable magnification by changing the eyepieces
- Stable magnesium body
- Weatherproof, nitrogen-filled
- Universal 1¼" eyepiece holder with IF
- Extendable dew shields
- Photo tripod connection
- APM 1-arm center mount for binoculars
Important note:
This APM Binocular is manufactured individually for you, according to your specifications. The features mentioned here are suggestions on our part from already realized projects.
Due to the individuality of the production, it is not possible to use the right of withdrawal or cancel the order.
The stated production times are expressly not a binding delivery date and may vary due to various circumstances or legal requirements.
Delivery:
- 120mm SD-Apo binoculars 90°
- Test protocol
- 1 set of 24mm ultra flat field eyepieces (27.5x magnification)
- Handle and photo tripod adapter
- APM 1-arm center mount for binoculars
- Lens and eyepiece caps
Products specifications
| Coating | Hard Broadband Coating |
| Coating | Multicoating |
| Focusing | Helical Focuser for each Eyepiece |
| Photo tripod thread | 1/4-20 and 3/8" |
| Housing | Magnesium Alloy Chassis |
| Interpupillary Distanz (IPD) | 54mm-75mm |
| Number of lenses | 2-Linsiger Luftspalt Apo, hintere Linse OHARA FPL 53 SD |
| Focal length | 660mm |
| Front lens diameter | 120mm |
| Objective angle of view | 2.4 GRD |
| Prism Size | 28mm |
| Dimensions | Length 27.0 inch x width (dew cap) 11.3 inch x width 9.5 inch eyepiece side x height 7.9 inch |
| Dew shield ID thread | M 130 x 1-6H, 5 mm depth |
| Weight | 9.6 kg |
| Waterproof | yes, nitrogen filled |
