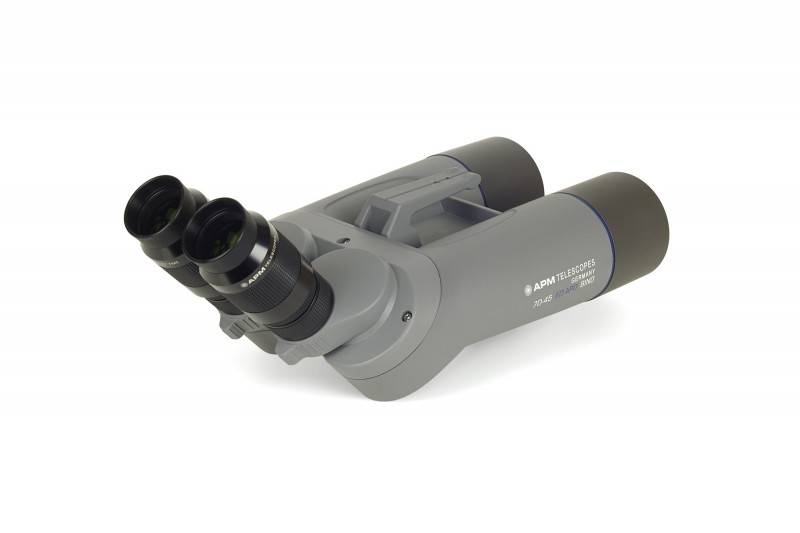

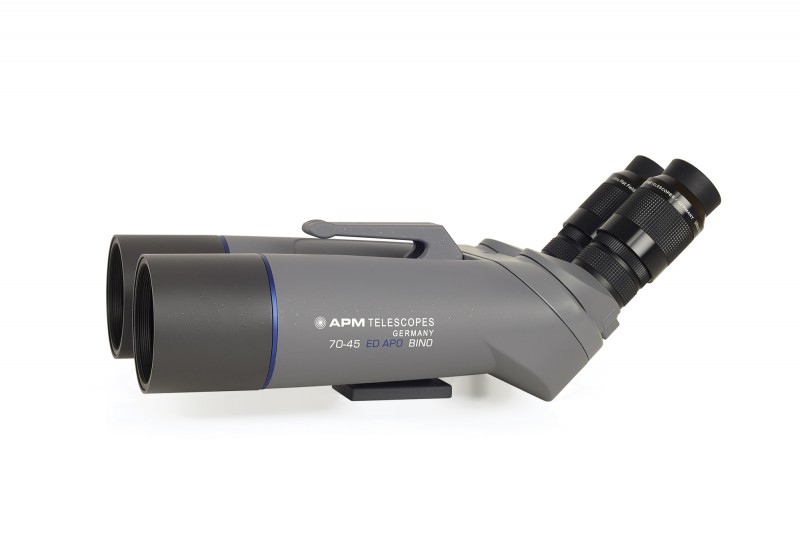

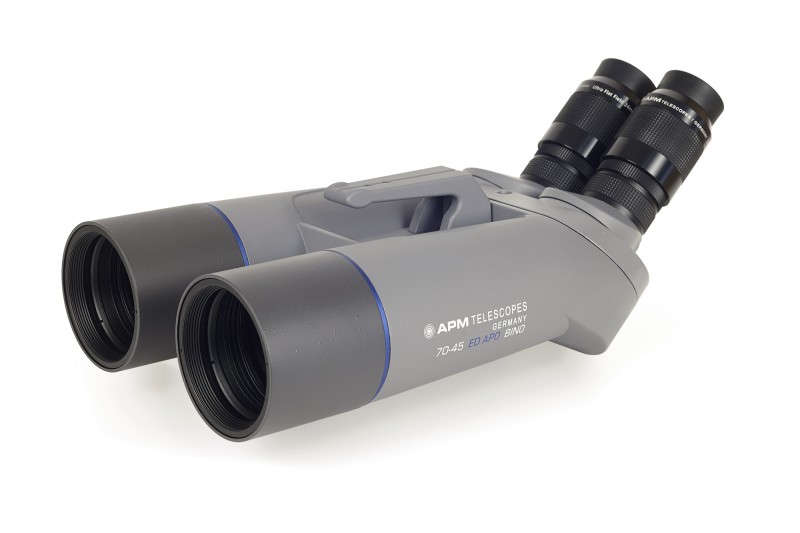

APM 70 mm 45° SD Apo Binocular
These spherically and chromatically very well corrected 2-lens FCD SD binoculars offes an extremely high contrast. The 45° viewing position and the 1.25" eyepiece sleeves make this glass very universally usable. The 45° variant can be used terrestrially as well as astronomically. In the basic supply we have included a set of our 18mm UF eyepieces, you can change the magnification by changing the eyepiece sets. The focus position was chosen so that TeleVue Delos, Nagler, Panoptik and the Docter 12.5mm UWA eyepiece can be focused. This model is also available with a 90° view.

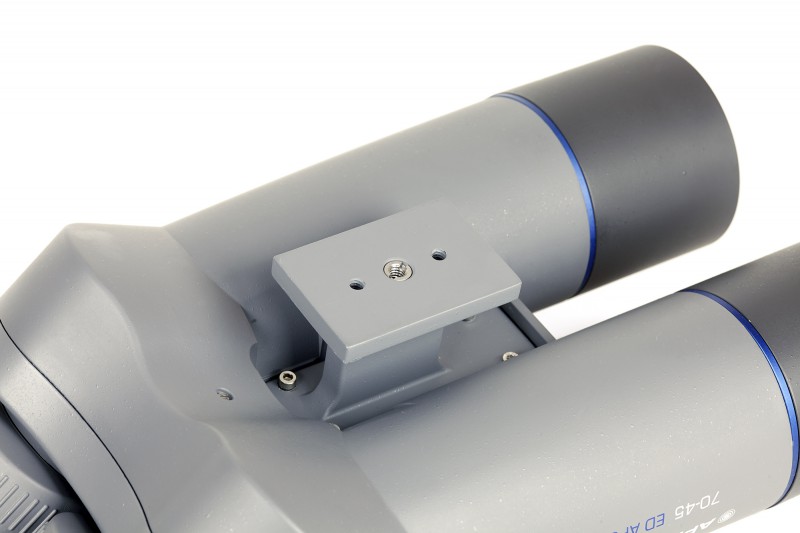

Slidable dew shields with front cover, a handle with sighting device, a photo tripod adapter with 3/8 "thread connection.
Important note:
This APM Binocular is manufactured individually for you, according to your specifications. The features mentioned here are suggestions on our part from already realized projects.
Due to the individuality of the production, it is not possible to use the right of withdrawal or cancel the order.
The stated production times are expressly not a binding delivery date and may vary due to various circumstances or legal requirements.
Scope of Delivery:
- 70mm FCD100 SD Apo binoculars 45°
- Transport handle with sighting device
- Test report

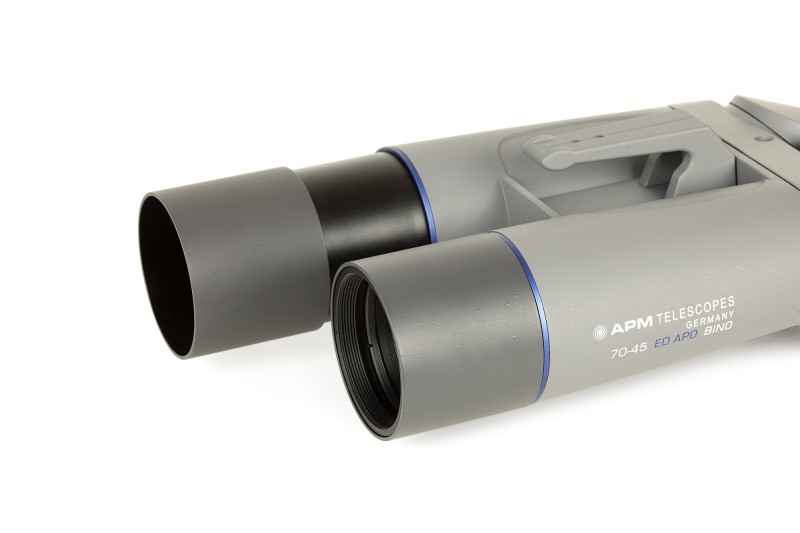

- Objective lens hoods
- Eyepiece caps

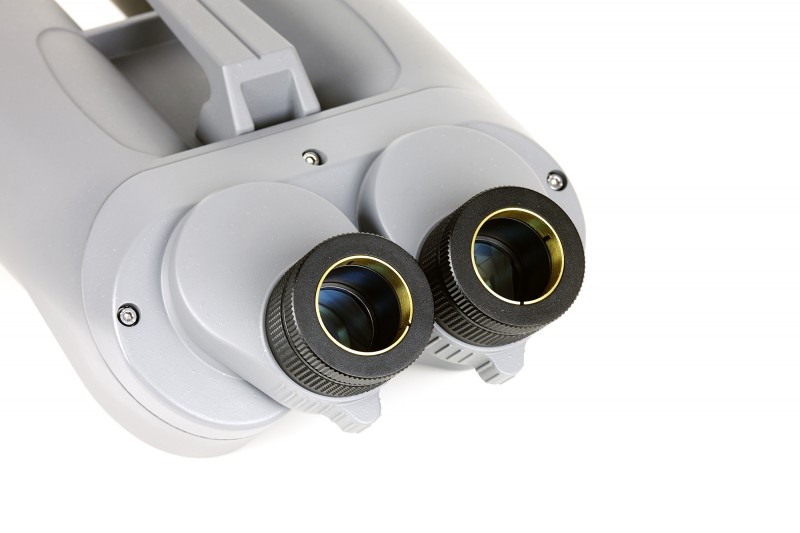

- Set UF 18 eyepieces
Products specifications
| Front lens diameter | 70 mm |
| Photo tripod thread | With included Tripod Adapter 1/4" Thread |
| Focal length | 400mm |
| Objective angle of view | max. 4° FOV |
| Coating | all optical surfaces fully broadband multicoated |
| Features | Set 18 mm Ultra Flat Field eypieces (22x magnification) |
| Housing | Magnesium |
| Interpupillary Distanz (IPD) | 54 mm - 76 mm |
| diameter field stop | 28 mm |
| Focusing | 1.25" Helical Focuser with brass compression ring |
| Dew shields | extendable |
| Weight | 3.5 Kg |
| Dew shield ID thread | M 77 x 1-6H, 3.8 mm depth |
| Waterproof | yes, nitrogen filled |
| Height | 125mm (measured from the mounting plate to the handle) |
| Dimensions | 375x210x120mm |
| Aperture | 2 Element Air spaced FCD Apochromat (rear lens FCD100 Glass) |
| Dimensions | 61x37x32 / volume weight 15 Kg |
