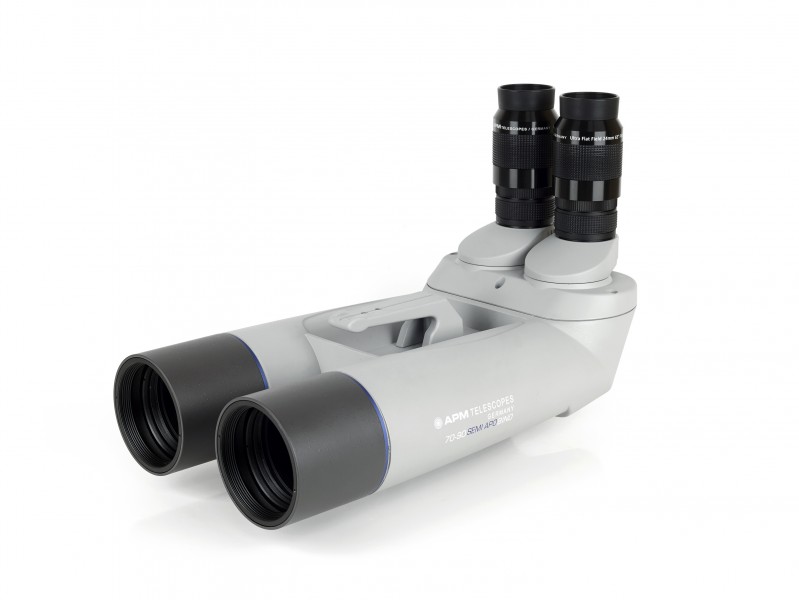

APM 70 mm 90° Binocular
Our 90° Semi Apo Giant binoculars are one of our bestsellers and offer an excellent price-performance ratio. The 90° viewing position and the 1.25" eyepiece sleeves make this binoculars usable especially for astronomical objects. The 90 ° variant is also particularly interesting for astronomical objects of high Declination.
You can change the magnification by changing the eyepiece sets. The focal position was chosen, Tele Vue Delos, Nagler, Panoptik and the Docter 12.5 mm UWA eyepiece can be focused.
This model is also available with a 45° viewing position. To keep the glass lightweight, the body is made of robust cast magnesium. Slidable dew shields with front cover, a handle with sighting device, a photo tripod adapter with 3/8 "thread connection.
Note: Eyepieces are optional.

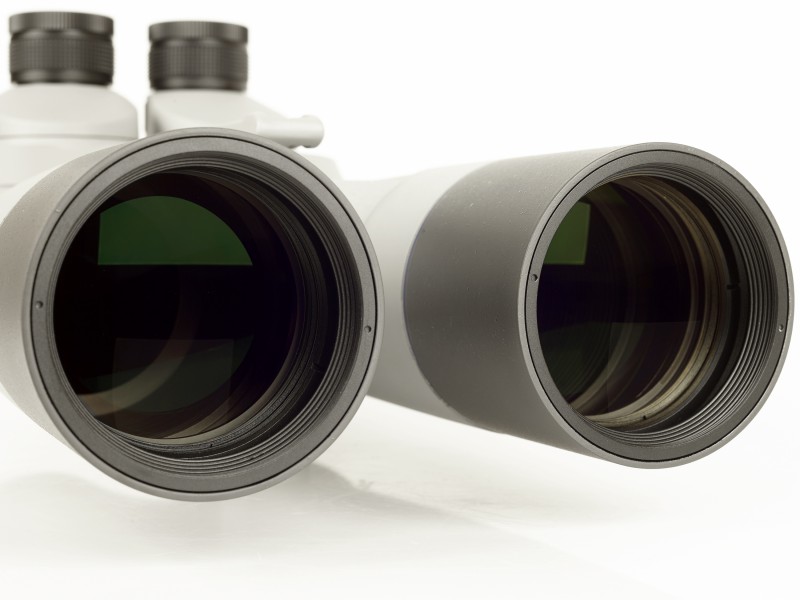

- High quality, Doublet semi-apochromatic front lenses
- BAK-4 Prism system
- High quality EMC multi coatings on any optical surface
- Variable magnification by changing eyepiece sets
- Robust bodymade by Magnesium alloy
- Weather resistant
- Universal 1,25" eyepiece holder with IF

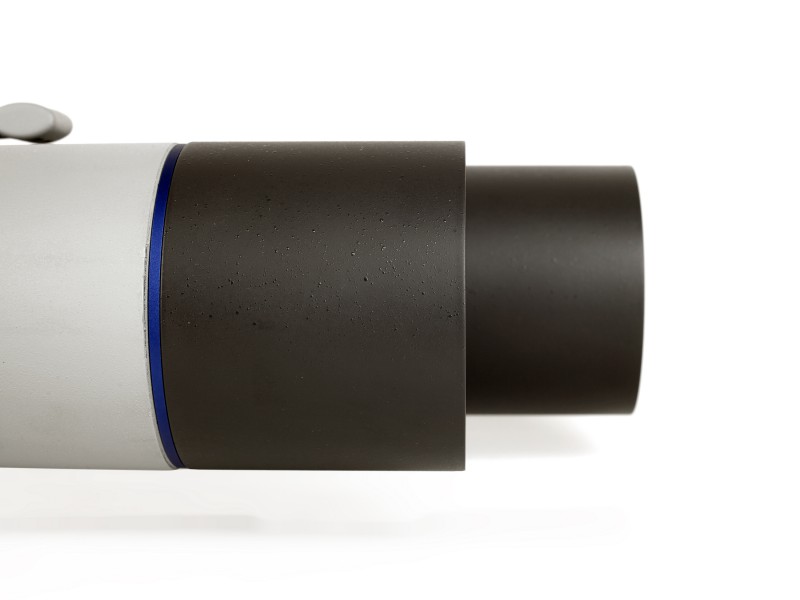

- Slidable dew shields
- Tripod connector integrated
- 70mm Semi Apo binoculars 70mm 90°

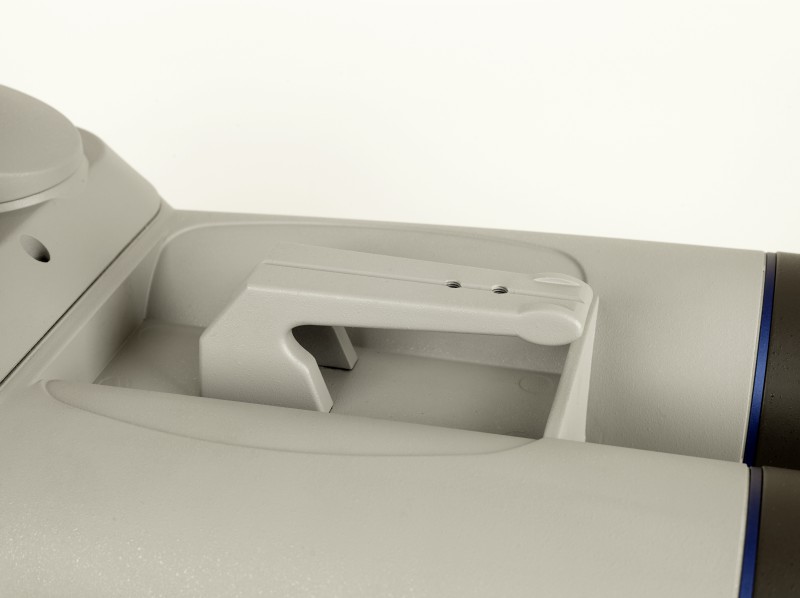

- Transport handle with sighting device
- Objective lens hoods
- Eyepiece caps
|Front lens diameter||70 mm|
|Focusing||Helical Focuser for each Eyepiece|
|Number of lenses||2 each Side|

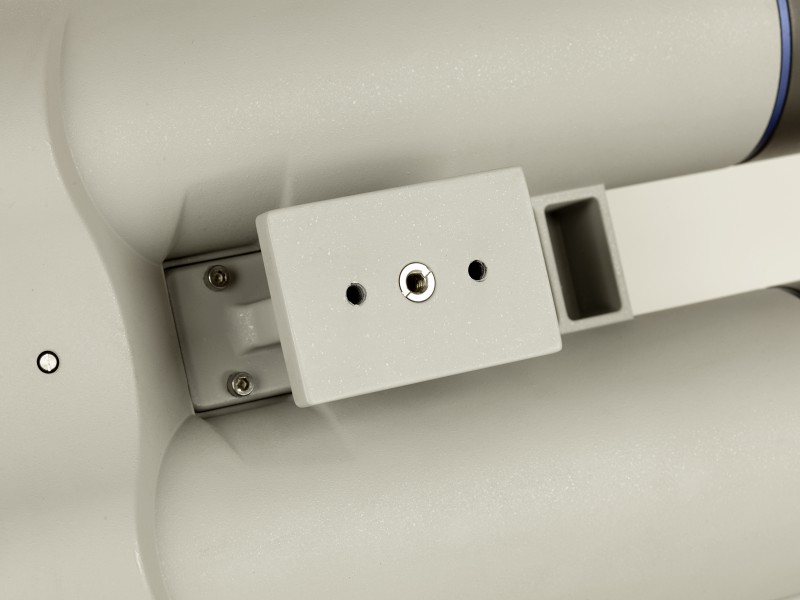

|Photo tripod thread||With included Tripod Adapter 1/4" Thread|
|Objective angle of view||max. 4° FOV|
|Coating||all optical surfaces fully broadband multicoated|
|eye relief||54 mm - 76 mm|
|diameter field stop||28 mm|
|Close focusing distance||12 m|
|Dew shield ID thread||M 77 x 1-6H, 3.8 mm depth|
|Weight||8,8 lb incl. tripod adapter, without eyepieces|
|Magnification||UF18 Eyepieces 22x, UF24 Eyepieces 17x|
