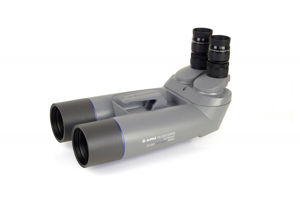

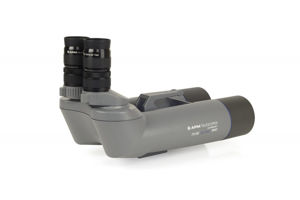

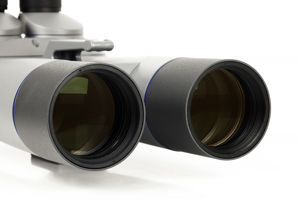

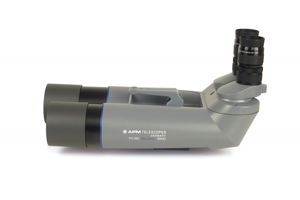

APM 70 mm 90° SD-Apo Binocular

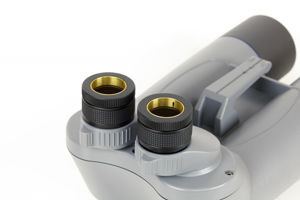

These spherically and chromatically very well corrected 2-lens FCD SD binoculars offes an extremely high contrast. The 90° viewing position and the 1.25" eyepiece sleeves make this glass excellent usable for astronomy. The 90° variant is also especially interesting for astronomical objects of high declination. You can change the magnification by changing the eyepiece sets. The focus position was chosen so that TeleVue Delos, Nagler, Panoptik and the Docter 12.5mm UWA eyepiece can be focused. This model is also available with a 45° view.
Slidable dew shields with front cover, a handle with sighting device, a photo tripod adapter with 3/8 "thread connection.
Important note:
This APM Binocular is manufactured individually for you, according to your specifications. The features mentioned here are suggestions on our part from already realized projects.
Due to the individuality of the production, it is not possible to use the right of withdrawal or cancel the order.
The stated production times are expressly not a binding delivery date and may vary due to various circumstances or legal requirements.
Delivery:
- 70mm FCD100 SD-APO binoculars 90°
- Transport handle with sighting device
- Test report
- Objective lens hoods
- Eyepiece caps
- 1 Set eyepieces UF 18
Products specifications
| Front lens diameter | 70 mm |
| Focusing | Helical Focuser for each Eyepiece |
| Photo tripod thread | With included Tripod Adapter 1/4" Thread |
| Focal length | 400mm |
| Objective angle of view | max. 4° FOV |
| Coating | all optical surfaces fully broadband multicoated |
| Housing | Magnesium |
| Interpupillary Distanz (IPD) | 54 mm - 76 mm |
| diameter field stop | 28 mm |
| Dew shields | extendable |
| Dew shield ID thread | M 77 x 1-6H, 3.8 mm depth |
| Waterproof | yes, nitrogen filled |
| Height | 190mm from bottom to end of focuser ( highest point) |
| Weight | 4.5Kg |
| Dimensions | 400x215x190mm |
| Aperture | 2 Element Air spaced FCD Apochromat (rear lens FCD100 Glass) |
| Dimensions | 61x37x32 / volume weight 15 Kg |
