APM Doublet ED APO-Astrograph 152 f/5,9 - 42mm - 3.7ZTA

APM Doublet ED APO-Astrograph 152 f/5,9 - 42mm - 3.7ZTA

APM Doublet ED APO-Astrograph 152 f/5,9 - 42mm image circle  - 3.7" focuser
Manufacturer : APM
SKU : APM-152-1200-FPL51/La-D-3.7ZTA-M63
Price: 4090.00 € incl tax 19% (Germany)
Delivery date : 1-4 days
Product description
APM Doublet ED Apo-Astrograph 152 f/5.9 - 42mm image circle, ED glass of FPL-51, 3.7" focuser with Riccardi M63 Reducer

The new APM 152-1200 Doublet is a mold breaker in the 6" Refractor category. We have painstakingly engineered an optical and tube solution to bring you APM quality at an unheard price. The new 152-1200ED features a Doublet lens cell using ED glass equivalent to FPL-51 complimented by a Lanthanum  element to maximize performance. Our innovative combination of materials and design has resulted in optical performance far beyond the normal for a telescope of this price. As with all APM telescopes consistency is assured and each telescope goes through an interferometrical test at the 532nm (green) wavelength before shipping.

The special feature of the 152 mm ED APO:
  •  Very high quality processed and of convincingly good optical quality
  •  Colorless optics with FLP51 glass
  •  Precise 3.7 "focuser with 1:10 mirco reduction for heavy accessories
  •  With f/7.9 ideal for visual  purposes
  •  With f/5.9 ideal for photographic
  •  CNC tube rings
  •  Carry handle
  •  Very good value for money

With a generous 1200mm focal length, the 152-1200 ED is an impressive all-rounder. From intricate double star observing to high contrast detailed planetary views, this new scope will introduce a whole new group of Astronomy enthusiasts to APM quality.

The new 152-1200ED is also supplied with extensive accessories. Inside the quality Aluminium transport case you will find not only a fantastic value telescope but also a newly designed 3,7" focuser, CNC tube rings incorporating a carrying handle, 330mm Losmandy style dovetail and finder bracket.

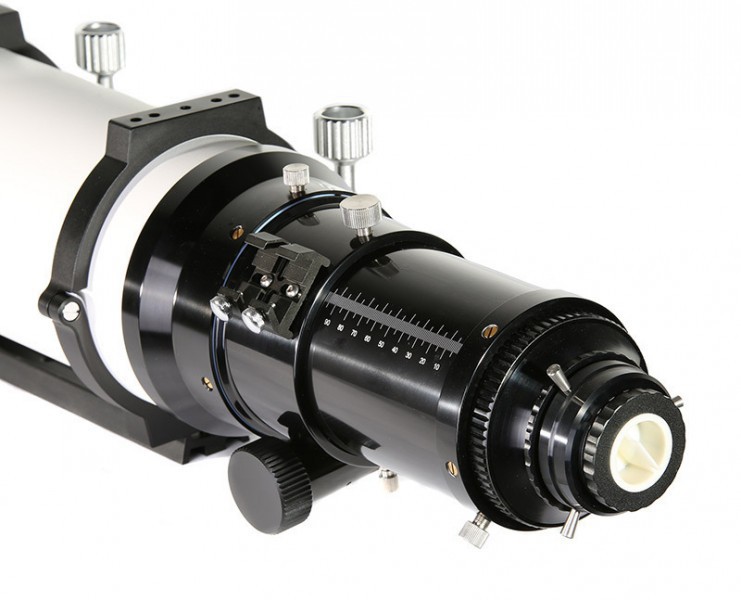

Traditional APM quality has been applied in all areas. The new 3,7" focuser is a Rack and Pinion type, with 1:10 focusing. It remains rigid under high loads making it suitable for imaging. The attention to detail extends to areas like the 2" and 1.25" eyepiece adapters. These use a new design of collar clamp, far superior to the common brass compression rings found on lesser designs. Also new is our 2" APM  Fast Lock adapter now.

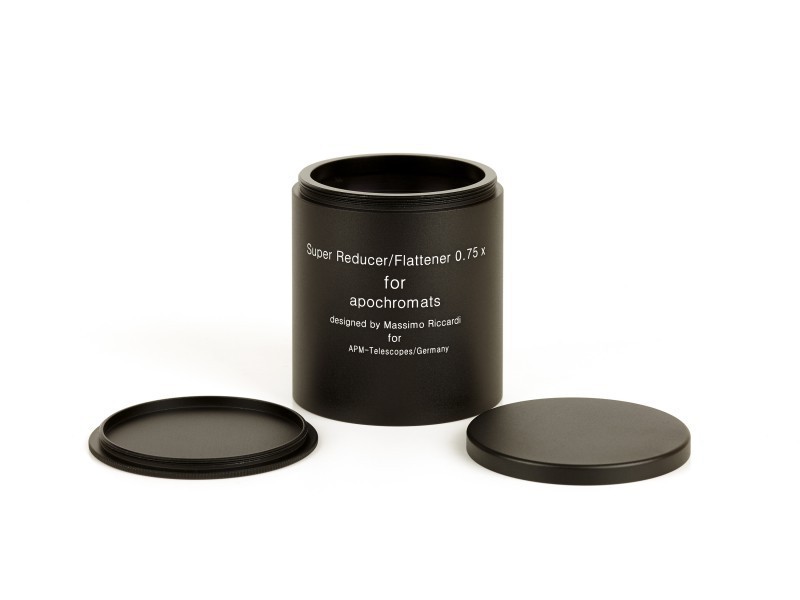

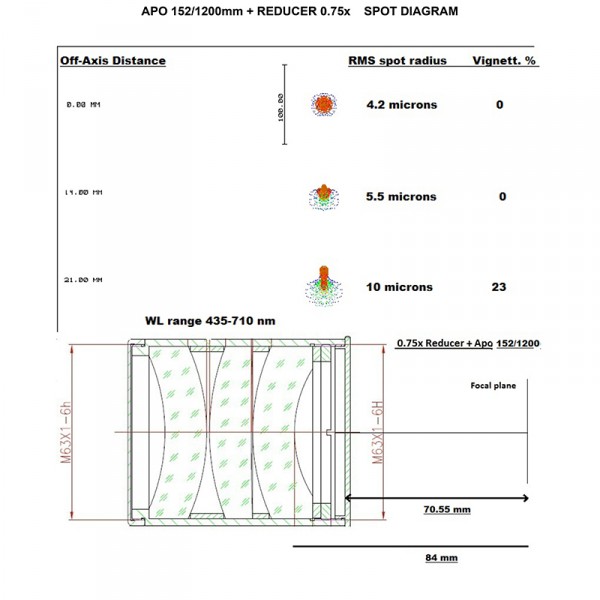

Included in the package is the Riccardi M63 Reducer.This changes the focal length by a factor of x0.75, resulting in a 900mm focal length and fast f/5.9 aperture.

With the new 152-1200ED we believe we have created an Apochromatic Refractor of incomparable performance and value in its category.

Delivery contains:
  • Optical Tube
  • 1 Pair of Tuberings
  • 3,7" Focuser with 1:10 Microfocusing
  • 3" Losmandy-Style Dovetail
  • 2"/1,25" del. adapter
  • Shoe for Finderbracket

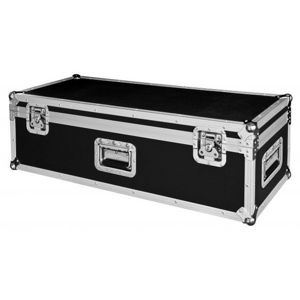

  • Carrying Case

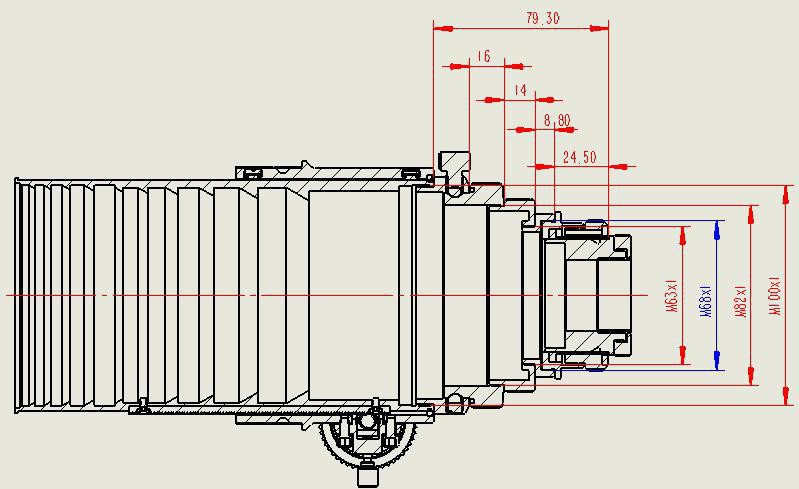

  • Adapter M82 x 1 ID ( Backfokus 230 mm )
  • Adapter M82 x 1 OD to M68 x 1 ID
  • Adapter M68 x 1 OD to M63 x 1 ID
  • Adapter M63 x 1 OD to 2" APM Fast Lock  ( backfocus 180 mm )

The adaptation for the Reducer is included in the package:

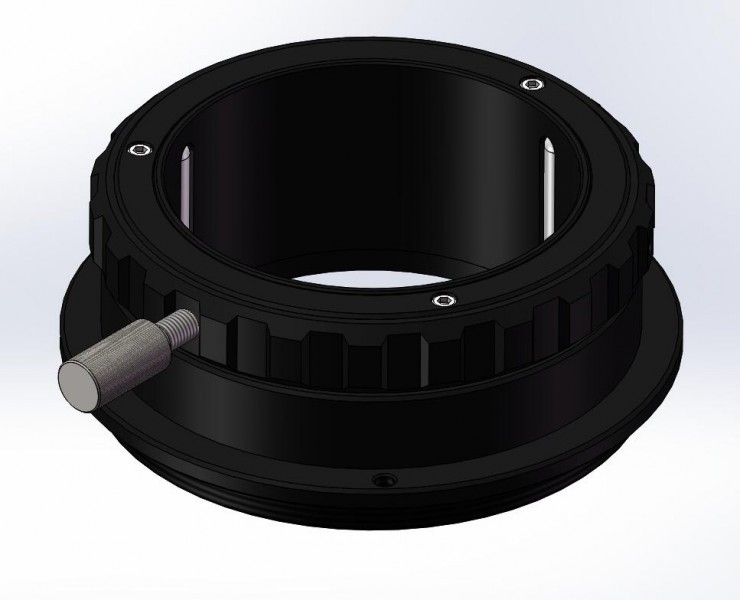

  • APM-Tilt-adj-M63
  • APM-RIRED-M63-small
  • Adapter : Okularauszug to Tilt-Adapter
  • Adapter Riccardi Adapter M48 Gewinde
  • Adapter M48 to T2 Gewinde


Products specifications
Limit value12.7 mag
Max. useful visual power300 x
Eyepiece adapterto 2" and 1.25"
Viewfindernone supplied
Tube materialAluminium
Backfokus180 mm
Focal length1200 mm
Aperture152 mm
Resolution0.76"
CoatingBroadband Mulitcoated
Colorblack / white
Type of telescopeDoublet ED-Apochromat
Tube diameter156 mm
Dewcap diameter186 mm
Caseyes
Length during observing1220 mm
Transportation length1020 mm
Case weight26.4 lb
Connection to eyepieceM68, 2" and 1.25"
Total weight55,66
LensDoublet ED Apo with FPL51 Element
Focuser3.7" R&P Focuser, Rotation 360°
Tube weight25.6 lb incl. Tuberings and 3" Dovetail, 20.6 lb Tube only without Caps
Focal ratiof/7.9 und f/5.9 with Riccardi M63 Reducer
