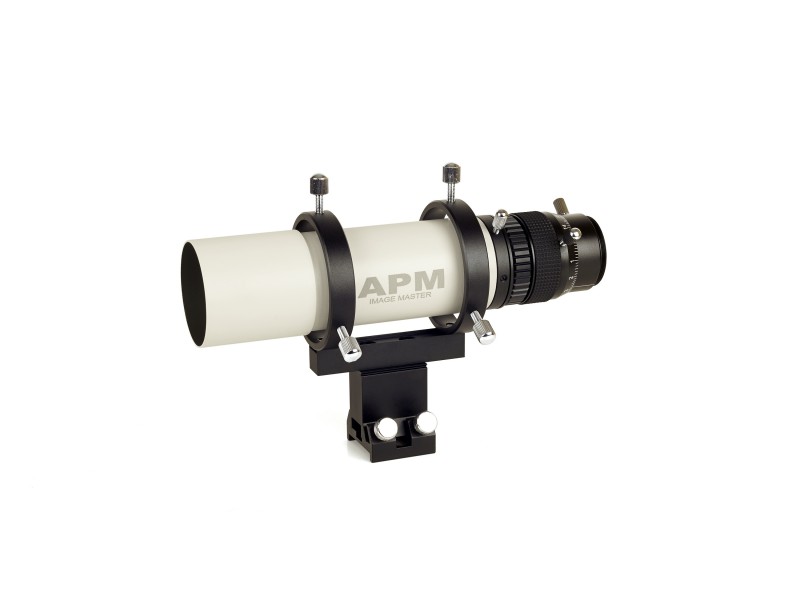

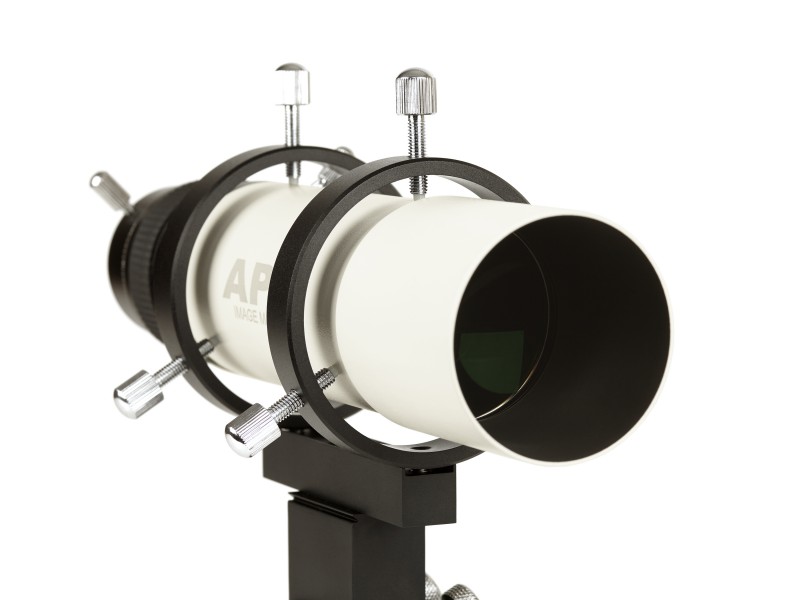

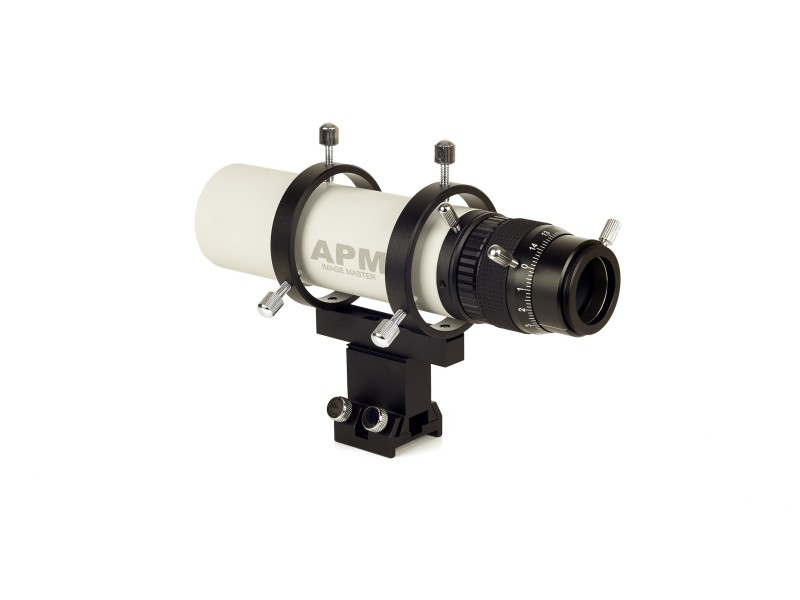

This small telescope is primarily intended as a guide scope for autoguiding. But it can also be used as a viewfinder or mini telescope. I.e. ogether with the M-Gen, the Image Master becomes an autoguider. If you use crosshair eyepieces, the result is a perfect viewfinder. With a normal eyepiece you get a nice small telescope.

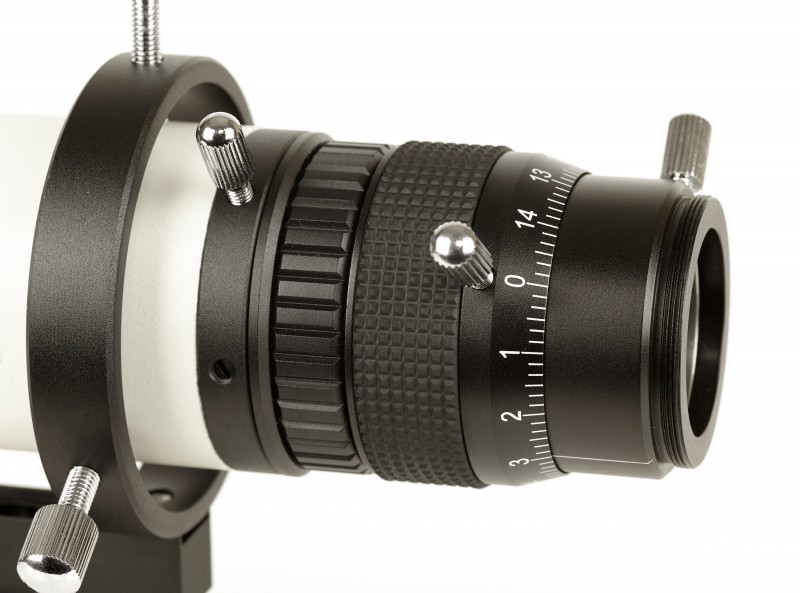

Focusing is done using a precise helical focuser with a millimeter scale and 8mm focus path. The back focus is a maximum of 21mm.
Characteristics:
- 50mm Guiding-Scope
- Helical focuser with Millimeter scale
- 1.25" eyepiece holder with T2 thread
- Position clamp screw

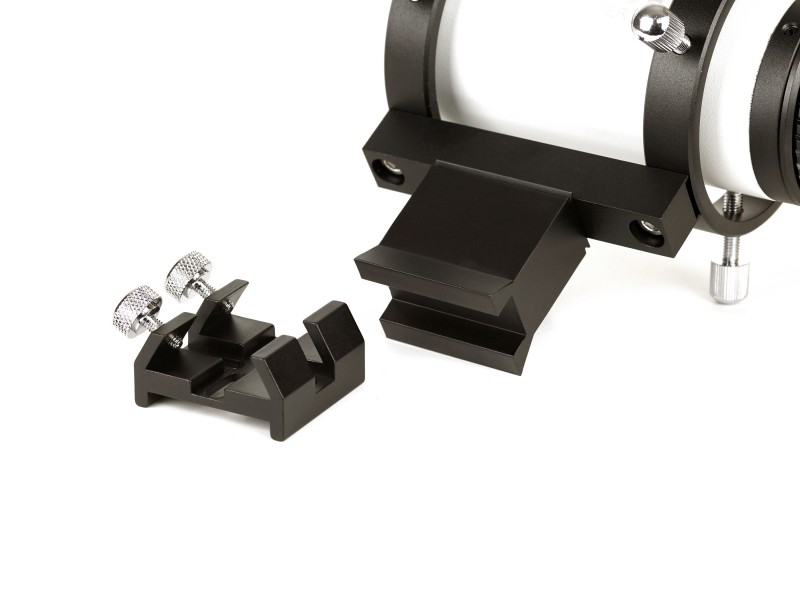

- Tube rings with Vixen compatible dovetail
Delivery:
- APM Image Master Mini 50mm
- Tube rings with Vixen compatible dovetail
- Standard holder shoe
Products specifications
| Coating | Multicoated |
| Tube material | Aluminium |
| Type of telescope | Achromat Refractor |
| Lens | Achromat |
| Aperture | 50 mm |
| Max. useful visual power | 100 x |
| Color | black |
| Included accessories | Tuberings and Dovetail Rail |
| Connection to eyepiece | 1.25" and T2 |
| Focuser | Helical Focuser with 8 mm Travel |
| Backfokus | 21 mm |
| Focal length | 205 mm |
| Focal ratio | f/4.1 |
| Total weight | 750 g with bracket, 550 g without bracket |
