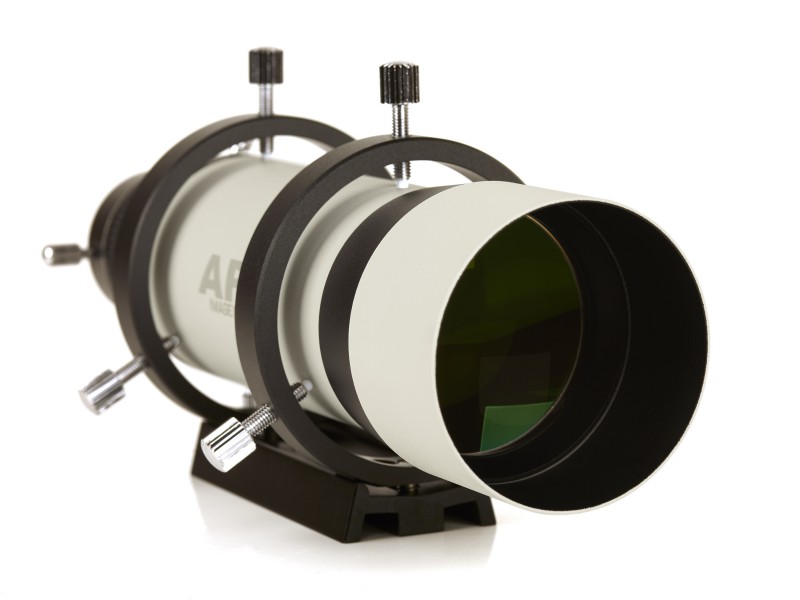

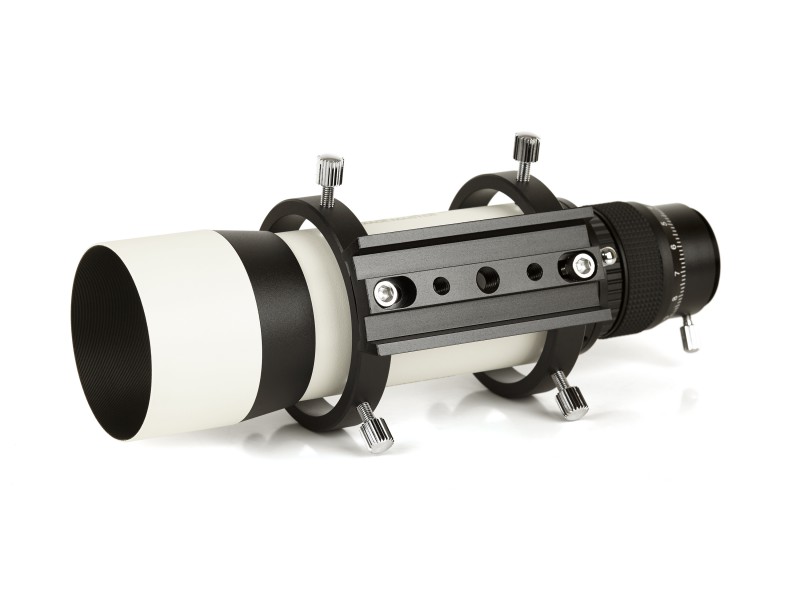

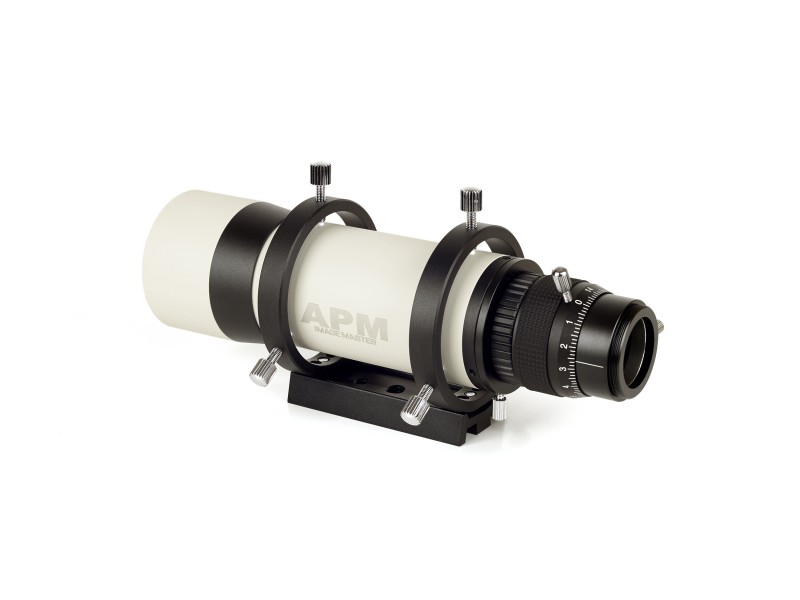

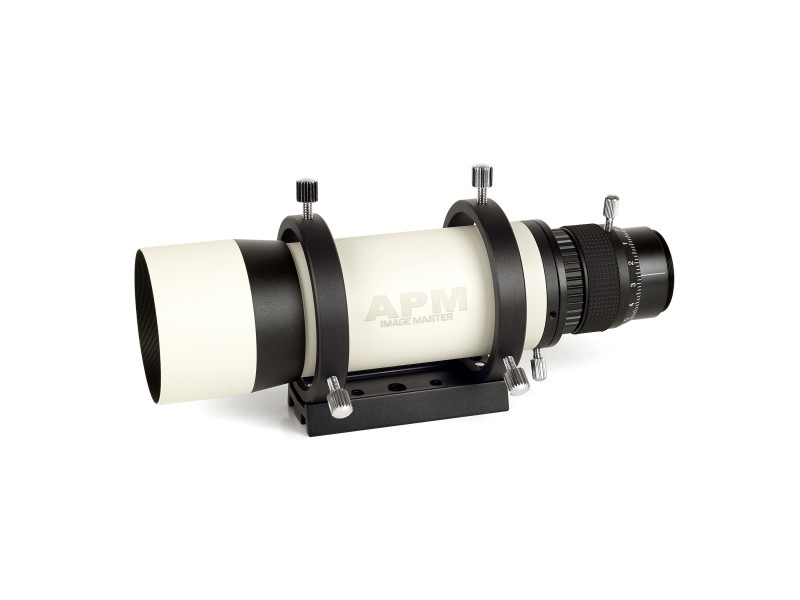

This small telescope is primarily intended as a guide scope for autoguiding. But it can also be used as a viewfinder or mini telescope. I.e. ogether with the M-Gen, the Image Master becomes an autoguider. If you use crosshair eyepieces, the result is a perfect viewfinder. With a normal eyepiece you get a nice small telescope.

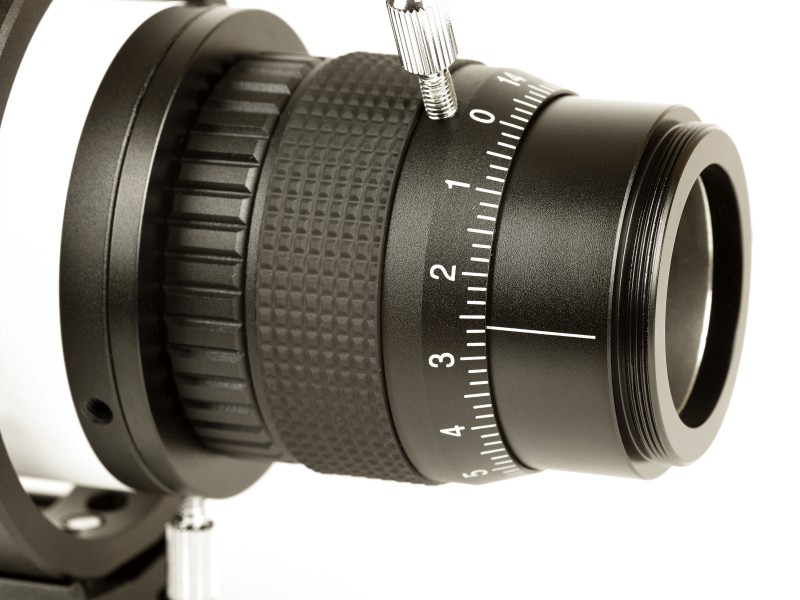

Focusing is done using a precise helical focuser with a millimeter scale and 8mm focus path. The back focus is a maximum of 20mm.
Characteristics:
- 60mm Guiding-Scope
- Helical focuser with Millimeter scale
- 1.25" eyepiece holder with T2 thread
- Position clamp screw

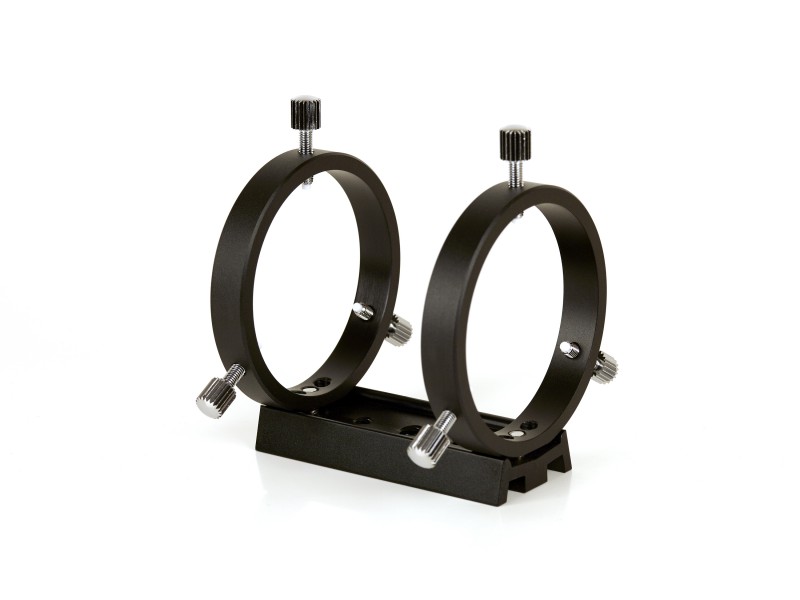

- Tube rings with Vixen compatible dovetail
Delivery:
- APM Image Master Mini 60mm
- Tube rings with Vixen compatible dovetail
- Standard holder shoe
Products specifications
| Coating | Multicoated |
| Tube material | Aluminium |
| Type of telescope | Achromat Refractor |
| Lens | Achromat |
| Color | black / white |
| Connection to eyepiece | 1.25" |
| Included accessories | Tuberings and Dovetail Rail |
| Aperture | 60 mm |
| Focal ratio | f/4 |
| Focal length | 240 mm |
| Tube diameter | 63 mm |
| Length during observing | 252 mm |
| Dewcap diameter | 72 mm |
| Total weight | ca. 1.2 lb |
| Focuser | Helical Focuser with 8 mm Travel |
| Backfokus | 20 mm |
