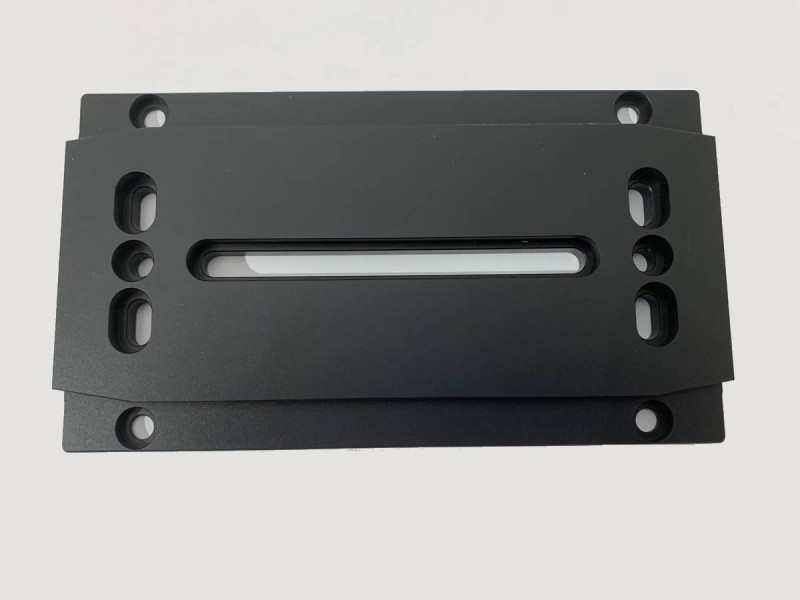

The APM 3" mounting plate with 180mm length is a high-quality Losmandy-compatible mounting unit with a flat support surface. The plate is very solid and also supports heavy telescopes without any problems. The holes and auxiliary threads allow a versatile application.
Characteristics:
- Solid, hardened aluminum (thickeness 12.5mm) for high instrument loads
- 101.5mm contact surface width for different hardware combinations
- Beveled edges on the front sides for safe insertion
Compatibility (extract):
- AllMounts with Losmandy compatible fast locking system
- Losmandy Mounts: GM8, G-11, Titan
- Celestron Mounts: CGEM, CGEM-DX, CGE Pro
- Skywatcher Mounts: EQ6, AZ-EQ6, EQ6-R, EQ8
Delivery:
- Mounting plate 180mm length
Products specifications
| Total length | 330mm |
| Width | 3" |
| Thickness | 12.5mm |
| Weight | ca. 900g |
| Slotted hole 1 | centric 100mm |
| Slotted hole 2+3 | 19mm from center line - 25mm long |
| Bores | 5x centric, 2 pairs with 22.5 space, 1 pair with 38mm space |
| M6 thread bores | 3x cemtric, 2 pairs with 35 mm space, 3 pairs with 24 mm space |
