APM - Reticle eyepiece 20 mm 70° - 1.25''

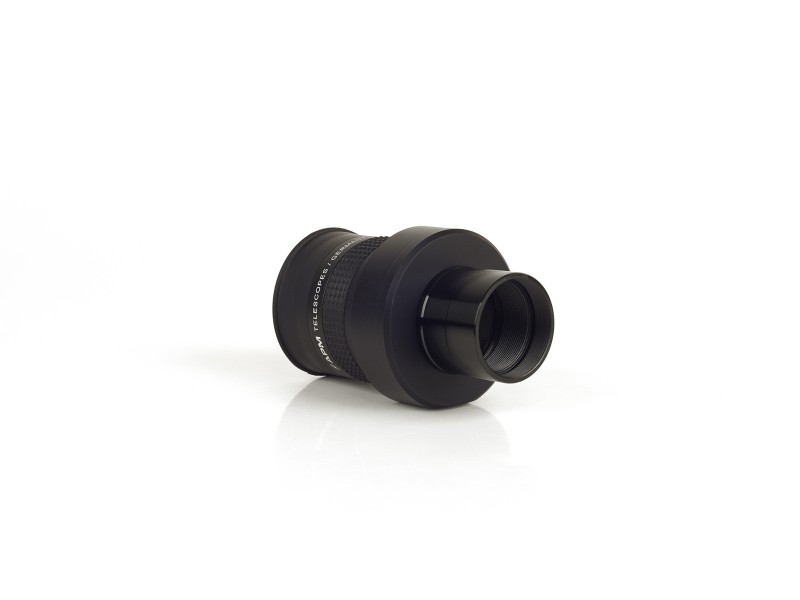

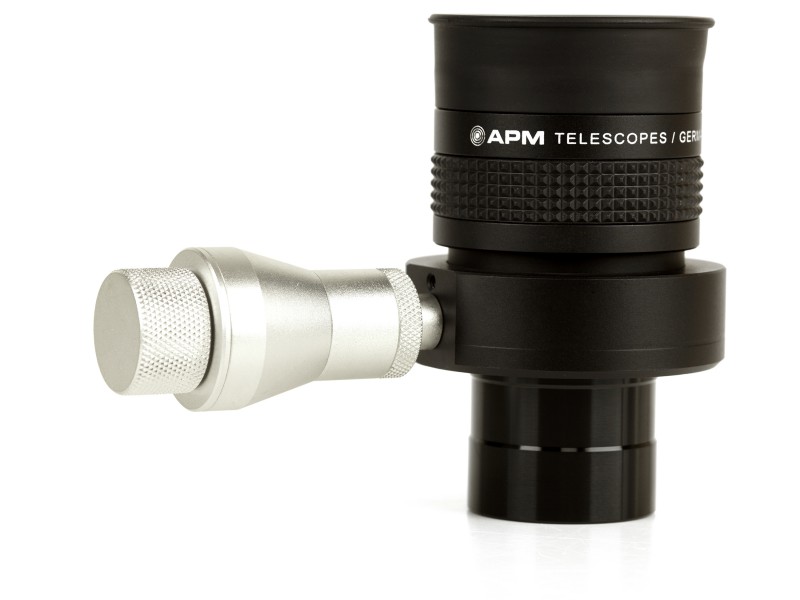

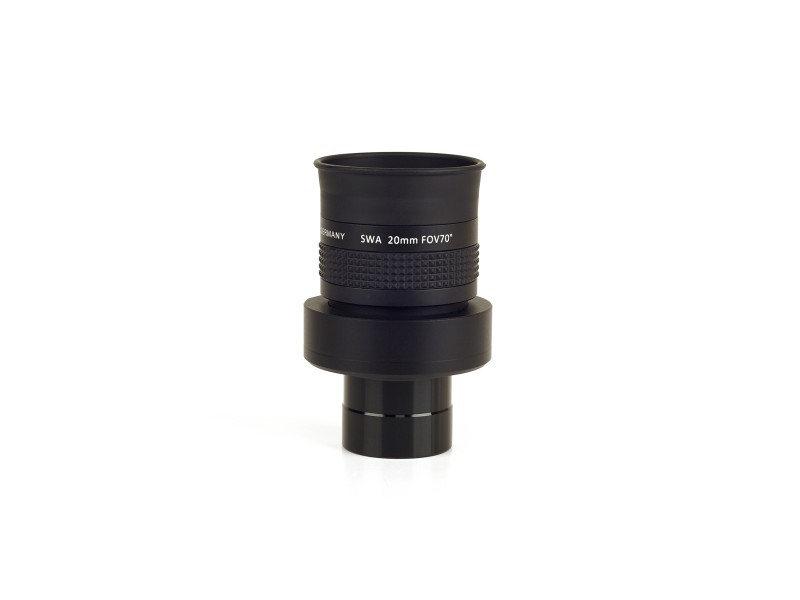

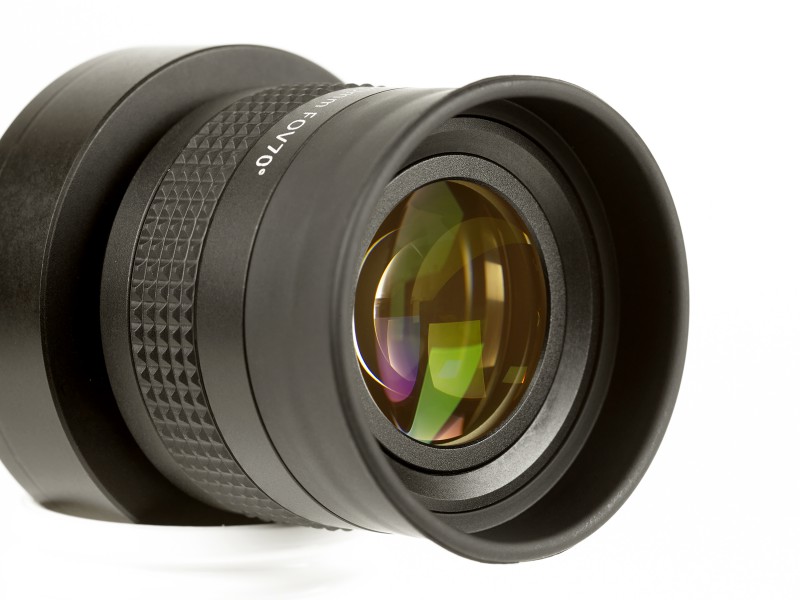

Our wide-angle eyepiece in Erfle design with illuminated reticle. Easy viewing position and universally applicable thanks to standardized 1.25" barrel. Of course, high-quality multi-coated.
Together with our APM viewfinders, you can use different magnifications (depending on the focal length of the viewfinder). The large 70° field of view makes it much easier to find the target object.
Fits straight viewfinders 50mm, 60mm and 80mm
Delivery:
- Wide angle finder eyepiece (w/o illumination) with dust caps
Products specifications
| Barrel size / Filter thread | 1 1/4" with filterthread |
| Eye relief | 17 mm |
| Eyegard | Rubber foldable for eyeglas wearers |
| Coating | Fully multicoated |
| Weight | 5.3oz |
| Field of view | 70° |
| Focal length | 20 mm |
| Type of eyepiece | Erfle Wide Angle Eyepiece with Crosshair |
