APM-Riccardi Apo-Reducer 0,75 x M63 small

APM-Riccardi Apo-Reducer 0,75 x M63 small

Our new APM-Riccardi Apo-Reducer with reducing factor 0.75 x with M63 thread on both sides.
Manufacturer : APM-Riccardi
SKU : APM-RIRED-M63-small
Price: 377.31 € excl tax
Delivery date : 1-2 days (in stock)
APM-Riccardi Apo-Reducer 0,75x M63 small

Our new reducer, calculated and designed from Riccardi

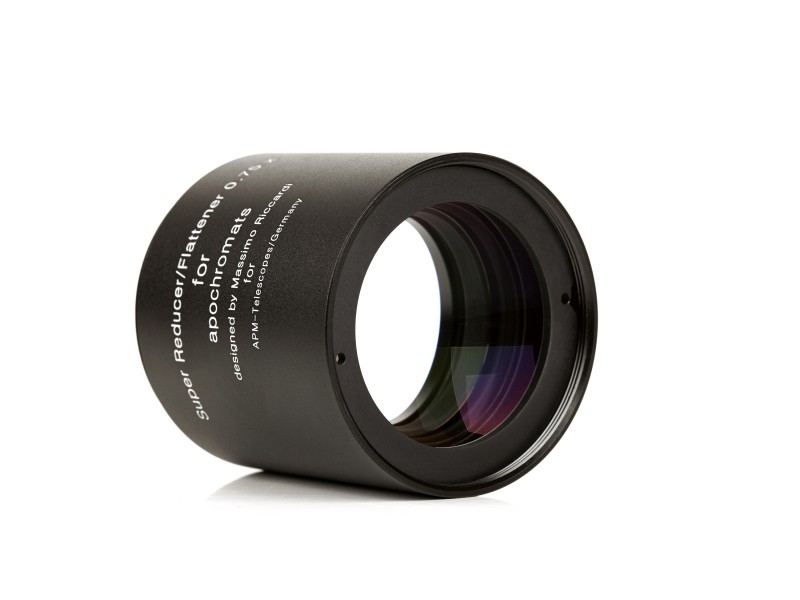

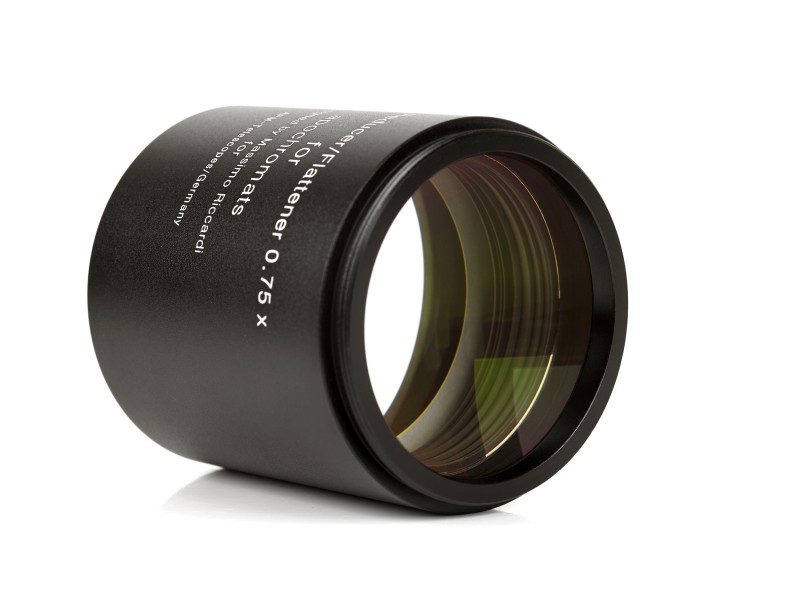

Massimo Riccardi, famous optical designer from Italy, designed for APM-Telescopes a new 3 element 0.75 x Apo-Reducer/Flattener Corrector for all TMB-APM-LZOS Apochromatic Telescopes. Tests show that it also works on Apos from other manufacturers as well. The reducer shortens the focal length by a quarter and corrects the image circle - thereby converting your telescope into a fast astrograph!

Assembly

The connection to your telescope and camera occurs over an M63 x 1 thread. For the correct adjustment of the reducer/flatener we can offer you an adjustment flange.

Backfocus

Usually  the reducer is screwed onto the focuser. The reducer can also be installed inside the focuser barrel, if the free aperture is equal to or larger than 68 mm.

The right backfocus for your telescope you will find in the enclosed PDF chart (see below). The total optical path of reducer plus backfocus plus focus change is between about 160 mm and 180 mm.

The correction is made for chips up to the full-format and perfect for the best known Kodak KAF 8300 chip.

You can find the correct adapter for your telescope camera combination in the enclosed PDF graphic (RiccardiAdaption.pdf).


Delivery contents

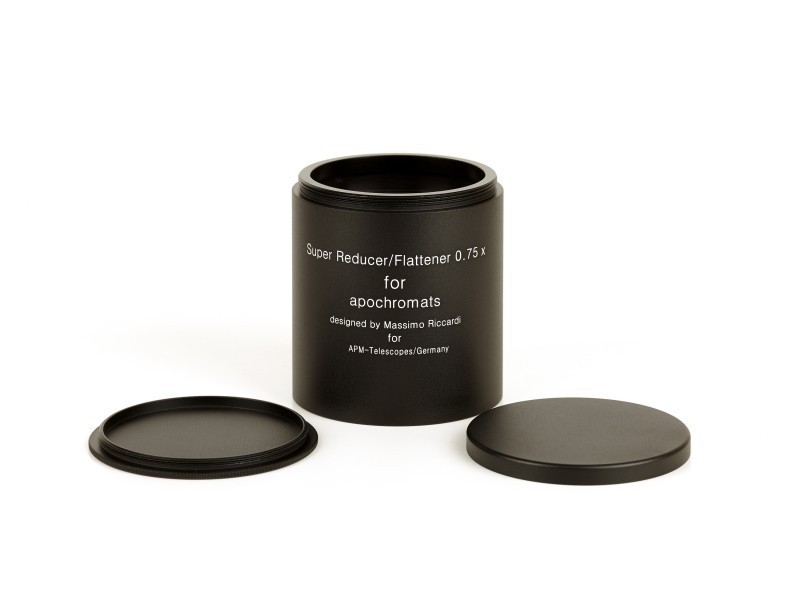

  • Reducer

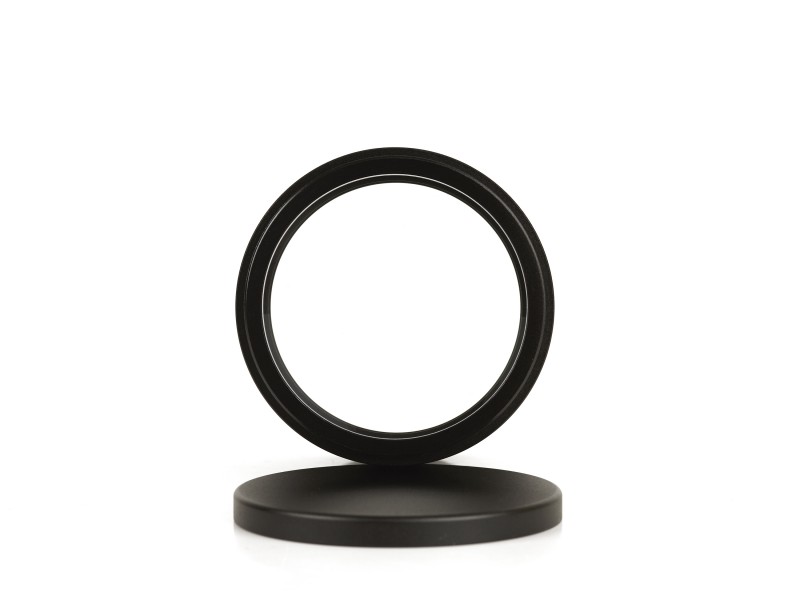

  • 2 Dustcaps
Products specifications
CoatingFully multicoated
HousingAluminium
Lenses3 Lenses
Connection to cameraM63 x 1 ID-Thread
Focal length reduction0.75 x
Diameter67 mm
Length71.7 mm (with Dustcaps 75 mm)
Weight17.5 oz (with Dustcaps 18.9 oz)
Fully corrected field40 mm
Connection to telescopeM63 x 1 OD-Thread
Optical length without collimation flange180.05 mm
Optical length with collimation flange189.05 mm
Recommended distance from focal plane to connecting threadwatch PDF
