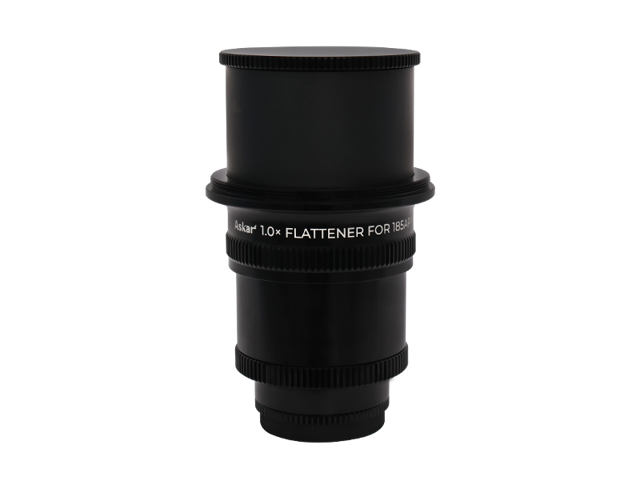

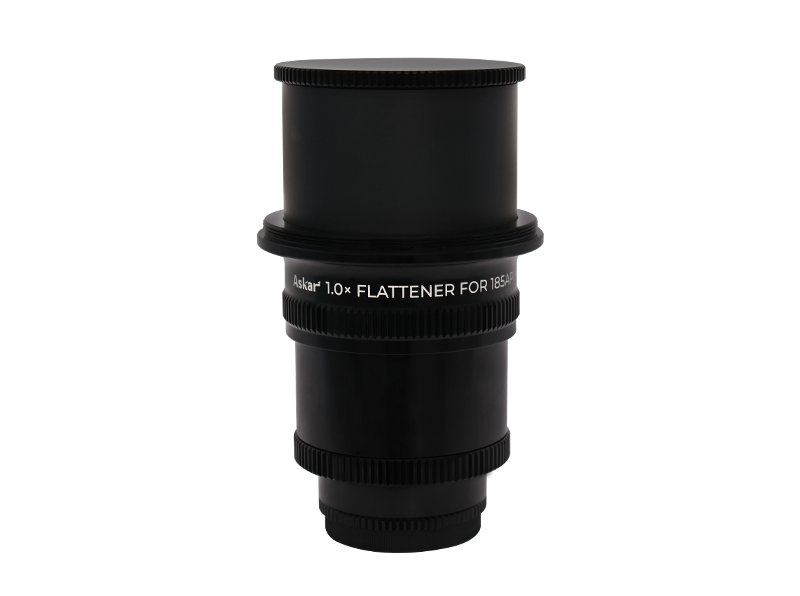

The Askar 185PO 1.0 flattener is optimized for the Askar 185APO and provides a very well corrected image field.

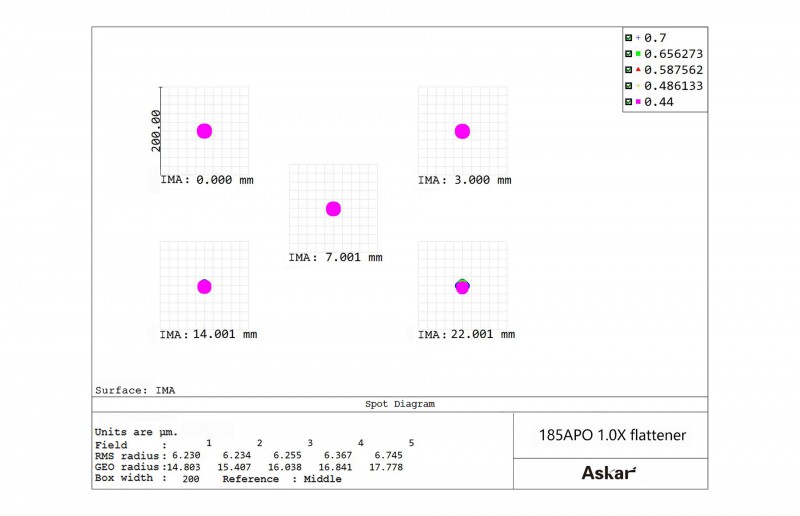

The 1.0x flattener does not change the telescope´s focal ratio itself. After connecting with the Askar 185APO, it still maintained a focal ratio of 7. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

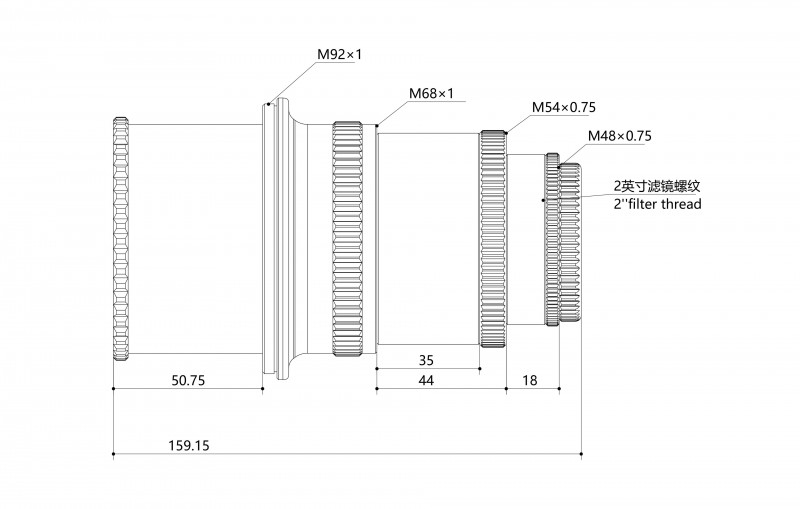

The 1.0x flattener adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.79kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, it is equipped with M68*1, M54*0.75, and M48*0.75 three sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.
Scope of Delivery:
|Working distance from the camera thread||55 mm from male M48 thread|
|Connection to camera||M68×1, M54×0.75, M54×0.75-M48×0.75 (M48×0.75 filter thread inside)|
