CCD / CMOS Astrofoto Photography
For the successful hunt for celestial objects you will find the electronic aids here: sensors, OAG, accessories and important filters. A wide selection is available.
Cooled astro camera with Sony IMX571 monochrome sensor, guiding sensor and ASIAir in one housing
- Imaging and guiding with only one telescope - without off-axis guider - due to the integrated, highly sensitive guiding sensor
- ASIAir Mini controller integrated
- Powerful Peltier cooling
- Sony IMX571 APS-C format monochrome sensor - back-illuminated
- High resolution due to 3.76 µm pixels
- 16 bit ADC - dynamic range like a CCD sensor
- Anti-dew heater already installed
- No amplifier glow
- Guiding sensor 7.68 mm x 4.32 mm and 4 µm pixels
- Telescope side connection: M54x0.75 female thread
- Working distance only 17.5 mm from the internal thread
- Hub with 4x USB 2.0 type A ports
- 2x 5.5/2.1 mm outputs (3rd socket as input)
- USB Type C port for data transfer to the computer
- Wi-Fi
- Bluetooth (only connection to AM3/AM5)
3254.00 €
Estimated delivery time : 1-4 days (valid for new orders)
The ASI 294MC is the first camera with the newest Sony sensor IMX294CJK. Ideal astro camera for solar, lunar and planetary photography and for deep sky.
- Sensor: Sony 4/3" CMOS Color Sensor IMX294CJK
- Sensor diagonal 23.2 mm (measured by ZWO)
- Pixel: 4.63 µm pixel size - 4144 x 2822 pixels
- Short download time through USB 3.0 - can also be used with USB 2.0
- AR protection window built-in - full transmission even in infrared
- Connection: T2, 1,25" and 2"
- Extremely high sensitivity through "back-illuminated" sensor. QE more than 75%
- You can photograph dim nebulae and galaxies with only 30 seconds exposure time.
- Extremely short exposure times allows high-resolution images of sun, moon and planets. The seeing is "frozen".
- Extensive scope of delivery
899.00 €
Estimated delivery time : 1-4 days (valid for new orders)

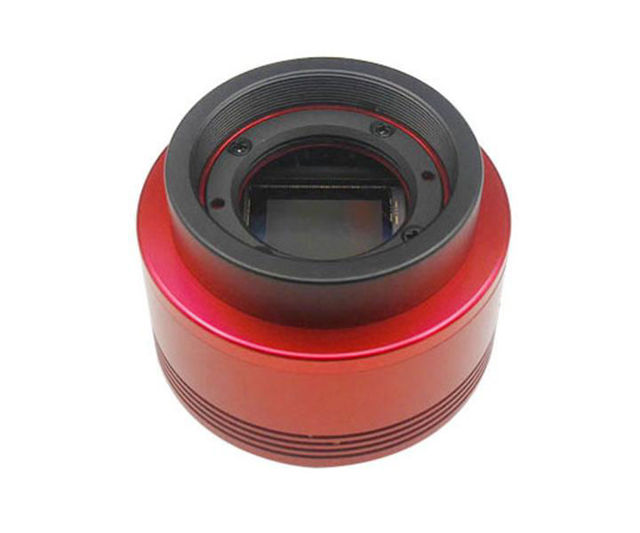

The ASI 294MM is the first camera with the newest Sony sensor IMX294. Ideal astro camera for solar, lunar and planetary photography and for deep sky.
- Sensor: Sony 4/3" CMOS MONO Sensor IMX492
- Sensor diagonal 23 mm
- Locked mode: 4.63 µm pixel size - 4144 x 2822 pixels
- Unlocked mode: 2.3 µm pixel size - 8288 x 5644 pixels
- Short download time through USB 3.0 - can also be used with USB 2.0
- AR protection window built-in - full transmission even in infrared
- Connection: T2, 1,25" and 2"
- Extremely high sensitivity through "back-illuminated" sensor. QE more than 75%
- You can photograph dim nebulae and galaxies with only 30 seconds exposure time.
- Extremely short exposure times allows high-resolution images of sun, moon and planets. The seeing is "frozen".
- xtensive scope of delivery
1199.00 €
Estimated delivery time : 1-4 days (valid for new orders)
This camera is excellent for sun and moon with its large sensor, but can also be used very well for deep sky because of the low noise.
- Sensor: 1.1" CMOS IMX432 with 1.77 megapixels resolution
- Sensor size: 9.9 mm x 14.5 mm - diagonal: 17.6 mm
- Large image field - very well suited for sun and moon
- Pixels with 9.0 µm size and corresponding light sensitivity
- With approx. 79 % QE a still high efficiency for short exposure times
- Very well suited for EAA due to high frame rate of 120 fps
- Full well capacity 97 ke-
- Starvis technology with back illumination
- USB 3.0 for fast download of images
- 12 bit ADC
- No amplifier glow (amp glow)
- Passive cooling with heat dissipation against heating of the sensor during long time exposures
- Good suitability for deep sky imaging
- AR protection filter built in with full transmission also in infrared
- ST4 level autoguiding interface included
749.00 €
Estimated delivery time : 1-4 days (valid for new orders)
Powerful monochrome astro camera with very fast Sony 2.1 megapixel sensor - with autoguiding connector
- Powerful BW camera for lunar and planetary photography and for deep-sky photography
- Highly sensitive in the infrared range - helps to suppress bad seeing
- Resolution 2.1 MP - 1936 x 1096 PX
- Pixel size 2.9 µm
- Sensor: 1/2.8" CMOS IMX462 with very high quantum efficiency (sensitivity) and low readout noise
- DDR Memory Buffer 256 MB - buffer for a more stable data transport
- Includes 2.1 mm all-sky lens for spectacular overview shots - with T2 connection thread
- Maximum 136.1 fps (frames per second) at full resolution
- Short download time through USB 3.0
- Extremely compact - only 62 mm x 36 mm
- Autoguiding connector (ST-4)
- AR protection filter built-in - full transmission even in infrared
399.00 €
Estimated delivery time : 1-4 days (valid for new orders)
The ASI 482 CMOS color camera offers a very high sensitivity with a QE of 85% and a large modern Sony sensor for all applications in astrophotography.
- Sony IMX 482 2 MP backlit sensor
- Sensor size 11.1 x 6.2 mm - diagonal 12.86 mm
- 1920 x 1080 pixels with up to 83 fps
- 5.8 µm pixel - ideal for Maksutovs or Cassegrains for optimal resolution
- Sony Starvis and Exmor-R technology
- USB 3.0 for fast image download - also compatible with USB 2.0
- Video astronomy and EAA with up to 83 frames per second possible
- ST4-level autoguider interface included
- AR protection filter built in with full transmission even in infrared
539.00 €
Estimated delivery time : 1-4 days (valid for new orders)
Die Colorkamera bietet einen großen Sensor, hohe Empfindlichkeit, Auflösung und Bildrate. Sie ist hervorragend für Planeten, aber auch für Sonne sowie Mond geeignet, und selbst für Deep Sky.
- Sensor: 1/1,2" CMOS IMX585 mit 8,29 Megapixeln Auflösung
- Sensorgröße: 6,26 mm x 11,13 mm - Diagonale: 12,84 mm
- Sehr hohe Auflösung: 3840 x 2160 Pixel mit 2,9 µm Größe
- Ca. 91 % QE - hohe Empfindlichkeit für kurze Belichtungszeiten
- Durch hohe Bildrate von 47 fps auch gut für EAA geeignet
- Full Well Kapazität 40 ke-
- Starvis 2 Technologie mit Back Illumination
- USB 3.0 für schnellen Download der Bilder
- 12 bit ADC
- Kein Verstärkerglühen (amp glow)
- Passive Kühlung mit Wärmeableitung gegen ein Erwärmen des Sensors bei Langzeitbelichtung
- Gute Eignung für Deep Sky Aufnahmen
- AR Schutzfilter eingebaut mit vollem Durchlass auch im Infraroten
- Inklusive ST4-Level Autoguidingschnittstelle
469.00 €
Estimated delivery time : 1-4 days (valid for new orders)
The camera offers a very high resolution and can be used for lunar and planetary photography, EAA and also for deep sky astrophotography.
- SONY STARVIS 2 technology - back illuminated pixel technology
- USB 3.0 for fast download of images
- No more amp glow detectable
- Passive cooling with heat dissipation against heating of the sensor during long time exposures
- Good suitability for deep sky imaging
- Rich field lens (removable) included in scope of delivery
310.00 €
Estimated delivery time : 1-4 days (valid for new orders)
The camera offers a very high resolution and can be used for lunar and planetary photography, EAA and also for deep sky astrophotography.
- Sensor: 1/2.8" CMOS IMX662 mono with 2.1 megapixels resolution
- Sensor size: 5.568 mm x 3.132 mm - diagonal: 6.45 mm
- Very high resolution: 2.9 µm pixel size
- SONY STARVIS 2 technology - back illuminated pixel technology
- With approx. 91% QE a high sensitivity for short exposure times
- USB 3.0 for fast download of images
- Very low readout noise (from 0.8 e-)
- Very well suited for EAA due to high frame rate of 107 fps
- 38 ke- full well
- 12 bit ADC
- No more amp glow detectable
- Passive cooling with heat dissipation against heating of the sensor during long time exposures
- Good suitability for deep sky imaging
- Rich field lens (removable) included in scope of delivery
- AR coated protection filter built in with full transmission also in infrared
- ST4 level autoguiding interface included
470.00 €
Estimated delivery time : 1-4 days (valid for new orders)
The all-sky camera offers a very high resolution and is particularly suitable for meteor photography.
- Sensor: 1/1.6" CMOS IMX676 with 12.6 megapixel resolution
- Sensor size: 7.1 mm x 7.1 mm - diagonal: 10.05 mm
- Very high resolution: 2.0 µm pixel size
- SONY STARVIS 2 technology - back illuminated pixel technology
- With approx. 83 % QE a high sensitivity for short exposure times
- USB 3.0 for fast image download
- Very low readout noise (from 0.56 e-)
- Already suitable for EAA due to frame rate of 31.2 fps
12 bit ADC - No more amplifier glow detectable
- Passive cooling with heat dissipation to prevent the sensor from heating up during long exposures
Good suitability for meteor and other all-sky images - Wide field lens (detachable) included in scope of delivery
- UV/IR block filter built in, thus well usable with refractors and camera lenses
- ST4-level autoguiding interface included
399.00 €
Estimated delivery time : 1-4 days (valid for new orders)
The camera offers a very high resolution and can be used for lunar and planetary photography, EAA and also for deep sky astrophotography.
- Sensor: 1/1.8" CMOS IMX678 with 8.29 megapixels resolution
- Sensor size: 7.68 mm x 4.32 mm - diagonal: 8.86 mm
- Extremely high resolution: 2.0 µm pixel size
- SONY STARVIS 2 technology - back illuminated pixel technology
- With approx. 83% QE a high sensitivity for short exposure times
- USB 3.0 for fast download of images
- Very low readout noise (from 0.6 e-)
- Well suited for EAA due to high frame rate of 47.5 fps
- 12 bit ADC
- No more amp glow detectable
- Passive cooling with heat dissipation against heating of the sensor during long time exposures
- Good suitability for deep sky imaging
- Rich field lens (removable) included in scope of delivery
- AR protection filter built in with full transmission also in infrared
- ST4-level autoguiding interface included
379.00 €
Estimated delivery time : 1-4 days (valid for new orders)
The camera offers a very high resolution and can be used for lunar and planetary photography, EAA and also for deep sky astrophotography.
- Sensor: 1/1.8" CMOS IMX678 with 8.29 megapixels resolution
- Sensor size: 7.68 mm x 4.32 mm - diagonal: 8.86 mm
- Extremely high resolution: 2.0 µm pixel size
- SONY STARVIS 2 technology - back illuminated pixel technology
- With approx. 83% QE a high sensitivity for short exposure times
- USB 3.0 for fast download of images
- Very low readout noise (from 0.6 e-)
- Well suited for EAA due to high frame rate of 47.5 fps
- 12 bit ADC
- No more amp glow detectable
- Passive cooling with heat dissipation against heating of the sensor during long time exposures
- Good suitability for deep sky imaging
- Rich field lens (removable) included in scope of delivery
- AR protection filter built in with full transmission also in infrared
- ST4-level autoguiding interface included
429.00 €
Estimated delivery time : 1-4 days (valid for new orders)
