TS Optics M68 System - Conversion adapter with continuous M68x1 male thread
This adapter turns a female M68x1 connection to a male M68x1 connection
In combination with the TSO-M68i-M68i and the TSO-M68Konter you have a very short variable M68 extension ring.
M68x1 male thread
Adaptor for 0,75x Riccardi Reducer to M48 / 2" Filterthread
This short adapter is required wherever an M63 internal thread is connected with an adapter or photographic accessories with an M48x0.75 threaded connection. In addition, a 2 "filter can be integrated into the system, a suitable filter thread is available on the telescope side.
TS Optics 0.8x full-frame corrector for f/8 RC telescopes with M68x1 connection
This reducer offers a complete correction of the image field of RC telescopes with reduction of the focal length to 80% at the same time. Pure focal reducers reduce the focal length without correcting the image field. The result is an aberration (astigmatism) in the corners. The larger the sensor, the more pronounced the aberration.
The reducer is designed especially for the image field of f/8 RC telescopes, thus it eliminates the aberrations entirely. The results are sharper, pinpoint stars and easier focusing.
Adaption to the telescope
You have two possibilities of adapting to the RC telescope. You can thread the corrector to the focuser or countersink it into the drawtube if you have less than 135 mm working distance.
Adaption via the female M68x1 thread at the telescope side
Via suitable adapters, you can attach the corrector to any focusers from 2.5" upwards. You just have to provide the focuser with a male M68x1 thread at the camera side. Please note that you need at least 135 mm working distance from the male thread.
Adaption with countersinking the corrector into the drawtube at the same time
If there is less backfocus, we recommend countersinking the corrector into the drawtube. Thus the necessary backfocus is reduced to less than 100 mm. There are suitable adapters for example the adapter TSO-M78a-M68a for focusers with the female M78x1 .
Adapting the camera
The working distance from the male M68x1 thread at the camera side is 82 mm, thus you have enough space for individual adaptions or accessories like off-axis guiders. The male thread is not taken into account for the working distance, as it disappears into the connection adapter.
0.8x reducer and corrector for RC
M68 dustcaps, made of metal, for both sides

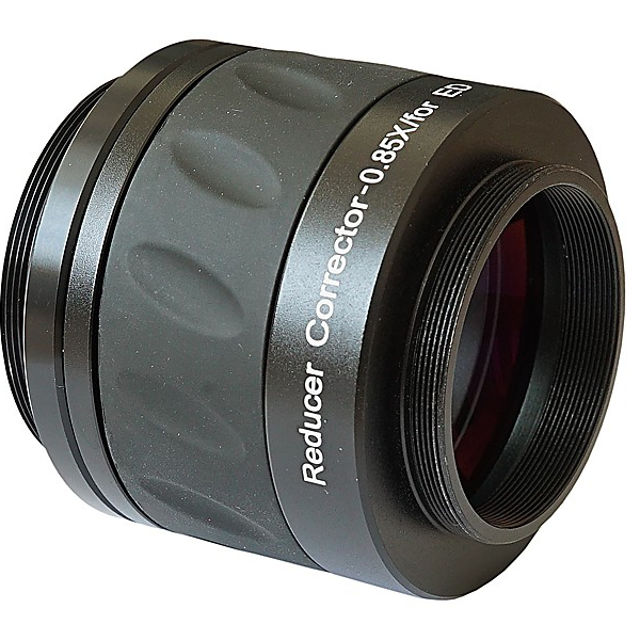

The Skywatcher 0.85x focal reducer / field flattener has been designed for astronomers who want to use the renown ED Apo for astro photography. The flattener reduces the telescope's focal length by the factor of 0.85 and increases the useful field. As a positive side effect, the necessary integration times are significantly reduced. The field curvature that is unavoidable at most telescope systems is reduced to a nearly irrelevant level when using sensors up to APS-C format (24x16mm).
Optimal distance M48 - focal plane: 55mm
Skywatcher Esprit 100ED Field Flattener with M48 Thread
The original Skywatcher Esprit Field Flattener for the Esprit 100ED.
The Flattener corrects the field of view and illuminates it up to full format cameras.
0.77X REDUCER/FLATTENER FOR ESPRIT-150ED TRIPLET
Designed specifically for the Sky-Watcher Esprit-150 ED Apo Refractor, the new three-lens Focal Reducer/Flattener has a reduction factor of 0.77x. It comes with a standard adaptor with M48 thread edge and 55mm back focus for use with Sky-Watcher's M48 Canon EOS (code 20237) and Nikon (code 20238) adaptor rings. After removing the adaptor, an M71x1 internal thread with maximum 75mm back focus is available for self-made adaptor solutions. The Reducer/Flattener produces a fully illuminated and corrected image circle of 34mm diameter and is therefore perfectly suitable for image formats up to APS-C but can also be used for full format.
Scope of Delivery:
Esprit 150ED Focal Reducer / Flattener
2 screwable dust covers
Adapter to M48 thread
Connection to camera:

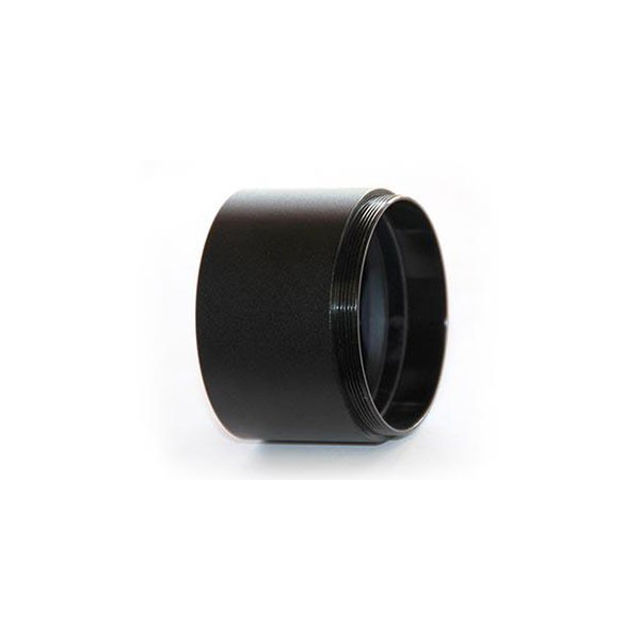

TS Optics PHOTOLINE 2" 1.0x Flattener for Refractors and Apos
With the TSFLAT2, a professional field corrector for apochromats, EDs and normal Fraunhofer achromats is available to the astrophotographer. The corrector is suitable for refractors from f/4 to f/9.
Advantages over other 2" correctors
Clear aperture of 45 mm without vignetting, even full-frame size sensors can be used.
Generous working distance between 108 mm and 128 mm, depending on the focal length of the telescope.
M48x0.75 - 2" filter thread at the telescope side for filters and at the camera side for further adaptions.
Also visually usable, the sharpness in the field is significantly improved.
Easy adaption vie 2" barrel - with the adapter package TSO-TSFLAT2A you get a complete adaptation from the flattener to the camera from Teleskop-Service.
Suitable for all 2" focusers, the corrector is completely sunken into the focuser
Inner blackening and anti-reflex thread
Recommended distances from the M48x0.75 thread to the corrector
In principle this rule applies: the shorter the refractor´s focal length, the longer the working distance to the sensor has to be.
focal length < 450 mm: 128 mm
focal length 450-490 mm: 123 mm
focal length 500-550 mm: 118 mm
focal length 560-590 mm: 116 mm
focal length 600-690 mm: 113 mm
focal length 700-800 mm: 111 mm
focal length ab 800 mm: 108 mm
An underrun or an overrun of the distance of up to 5% has no visible effect on the sharpness in the field of sensors with formats up to APS-C. With larger sensors, the tolerance is reduced to 1-2%.
