iOptron iGuider Autoguider System
The iOptron iGuide compact autoguider system consists of portable mini guiding scope with a diameter of 30 mm and focal length 120 mm (Part # 3361) and an iGuider camera (Part # 3362).
The resolution of the autoguider is 6.44 arc sec/pixel, especially suitable for guiding with short to medium focal length telescopes.
With dielectric AR-coated achromatic lenses, the iGuide Scope is sharp in imaging and ensures high quality guiding.

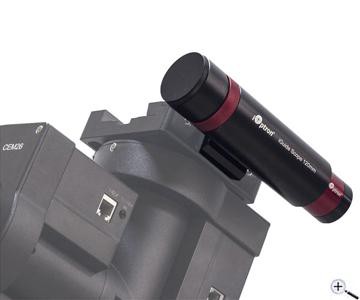

iGuide autoguider can mate with iOptron CEM26/GEM28 mounts seamlessly without any adapter. It also comes with a finder base which can be mounted on many telescopes.

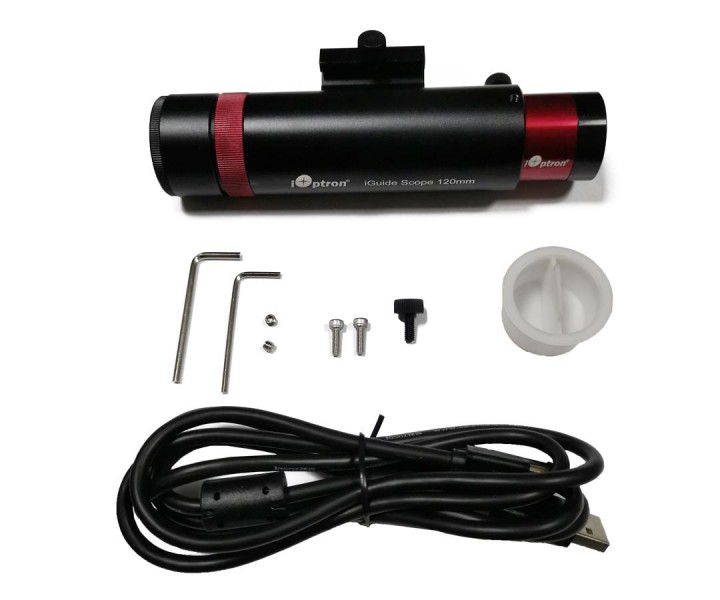

Scope of Delivery:
- Guide scope
- Covers for lens and camera connection
- Finder scope bracket with finder base
- Guider camera
- USB cable
- Mounting material
- Tools
Products specifications
| Pixel size | 3.75 µm |
| Sensor Type | CMOS |
| Pixel | 1280x960 Pixel |
| Maximum exposure length | 0.01 to 15s |
| Software | ASCOM / Windows |
| Note | Mounting: Directly to CEM26 and GEM28, finder scope dovetail |
| Note | Pulse guiding (ASCOM guiding), no support for ST-4 guiding |
