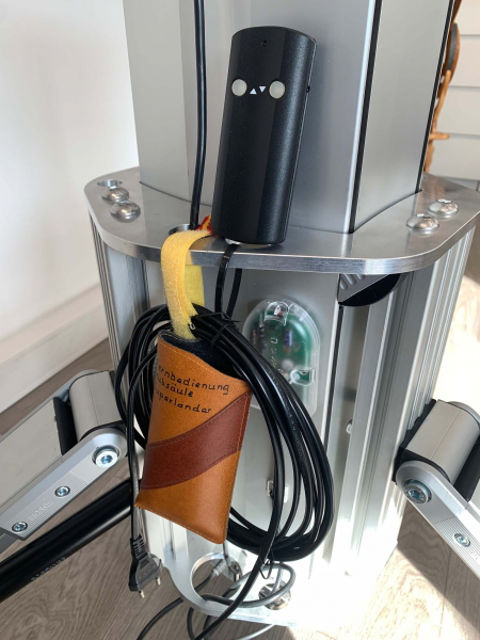

Lunt Super Lander;The rocker box and telescope shown in the picture are not included in the scope of delivery Folded Measurement: 450mm (18 inches) Diameter x 950mm (37.4 inches) Height Powered Height Adjustments: 18″ Net Weight: 28kg (62 lb.) Load Capacity: 99kg (220lbs) Hybrid, hydraulic/gas mechanisms rigid-lock the legs (10000N) in any extended angle/position and use gas as a damper in compression. Feet: High quality anti-vibration leveling feet (made in Germany) with load capacity of 12KN each. Finish: Anodized Iridium Silver Two-Button Hand Switch 120v/12v Power Supply Two Year Warranty Universal Top plate compatible with most mounts
Wichtiger Hinweis zur Mehrwertsteuer: Dieses Angebot unterliegt mit Ausnahme der Versandkosten gemäß § 25a UStG der Differenzbesteuerung, weshalb auf den angebotenen Artikel keine Umsatzsteuer erhoben und ausgewiesen wird.
Product description TS Optics Premium Saddle Plate for Losmandy level dovetail bars With the quick-coupling saddle plate, you can safely attach your telescope to mounts. By areal clamping, a high clamping force is achieved. Additionally, unaesthetic pressure marks are avoided. The short saddle plate is especially suitable for building double connections. Because of the flat support surface and the countersunk bores, the clamp can be attached to dovetail bars without any problems. Safe and precise clamping With the saddle plate you can attach even heavy accessories parallel to the main telescope. For example, the just 80 mm short saddle plate fits to the same dovetail bar with which the telescope is attached to the mount, or you can adapt a ball head to the saddle plate and use telephoto lenses parallel to the telescope. No unaesthetic dents Two generously dimensioned areas press the dovetail bar to the other side of the saddle plate. The pressure is not concentrated on a point, but on a larger area of 29 mm width. That has a positive effect on the load capacity. Furthermore, unaesthetic pressure marks are avoided. Extremely versatile through 7 countersunk boreholes Through 7 countersunk bores, the saddle plate is very versatile: two M8 bores with distances of 35 mm (middle to middle), and five M6 bores in different distances lengthwise and crosswise to the middle. You can attach this clamp to your mount, thus fitting it with a Losmandy level quick coupler. Or you attach tube rings or a camera mount to the base of the plate, enabling the use of heavy accessories parallel to your telescope. Delivery contents Losmandy Level Saddle Plate
The APM 3" mounting plate with 180mm length is a high-quality Losmandy-compatible mounting unit with a flat support surface. The plate is very solid and also supports heavy telescopes without any problems. The holes and auxiliary threads allow a versatile application. Characteristics: Solid, hardened aluminum (thickeness 12.5mm) for high instrument loads 101.5mm contact surface width for different hardware combinations Beveled edges on the front sides for safe insertion Compatibility (extract): AllMounts with Losmandy compatible fast locking system Losmandy Mounts: GM8, G-11, Titan Celestron Mounts: CGEM, CGEM-DX, CGE Pro Skywatcher Mounts: EQ6, AZ-EQ6, EQ6-R, EQ8 Delivery: Mounting plate 180mm length Specifications: Thickness: 12.5mm Slotted hole 1: centric 100mm Slotted hole 2+3: 19mm from center line - 25mm long Bores: 5x centric, 2 pairs with 22.5 space, 1 pair with 38mm space M6 thread bores: 3x cemtric, 2 pairs with 35 mm space, 3 pairs with 24 mm space Total length: 330mm Width: 3" Weight: ca. 900g
TS-Optics Mounting Adapter for MAK1000 The MAK1000, is a fine instrument for photography, astronomy and nature viewing. The adapter is an especially stable adaption to your mount or photo tripod. With this, the mounting via a female 1/4 thread, which is prone to vibrations, is replaced. The advantages at a glance Fixing the lens with two threads offset by 90° ensures no twisting. The Maksutov is not warped, the strain is more uniform than with only one screw. A finder shoe for attaching finder scopes or guiding scopes for astrophotography is already mounted. The connection to the tripod is made with a GP and EQ5 style dovetail bar with female 1/4" thread. More stability If you attach the 100/1000mm Maksutov with the mounting adapter to mounts with saddle plate, you can achieve a good balance by moving the adapter in the saddle plate. Thus you can well counterbalance a heavy camera or a lightweight eyepiece. You can elegantly achieve the same with a photo tripod. You do not attach the MAK1000 with the mounting adapter directly to the ball head or pan head of the photo tripod. You attach the dovetail clamp TSO-PrismenklemmeS onto the photo tripod and then you can move the Maksutov with the tripod adapter thus achieving a better balance. Furthermore you now have a quick coupling, you can detach the Maksutov from the tripod within seconds. Delivery contents Tripod adapter for MAK1000 2x 1/4" hex socket head screws GP style dovetail bar (mounted) Finder shoe (mounted) Specifications: Tripod connection: GP/EQ5 style dovetail bar, 1/4" photo thread (female) Telescope attachment: 2x 1/4" hex socket head screws Suitable for: TS-Optics Mak1000, Russentonne, MTO 1000
