The APM XXL AzMaxLoad mount was designed in response to requests from many customers for a very large, stable and extremely robust alt-azimuth mount.
Despite its relatively compact dimensions, our mount is extremely robust and can safely support instruments weighing up to 100 kg on each side. Thanks to careful selection and combination of materials, the mount’s weight has nevertheless been kept quite low.
The bearing mechanism is of high quality, and the clamps are precise and can be adjusted with fine control. This means that, provided the instrument is well balanced, you can achieve very high magnifications without any difficulty.

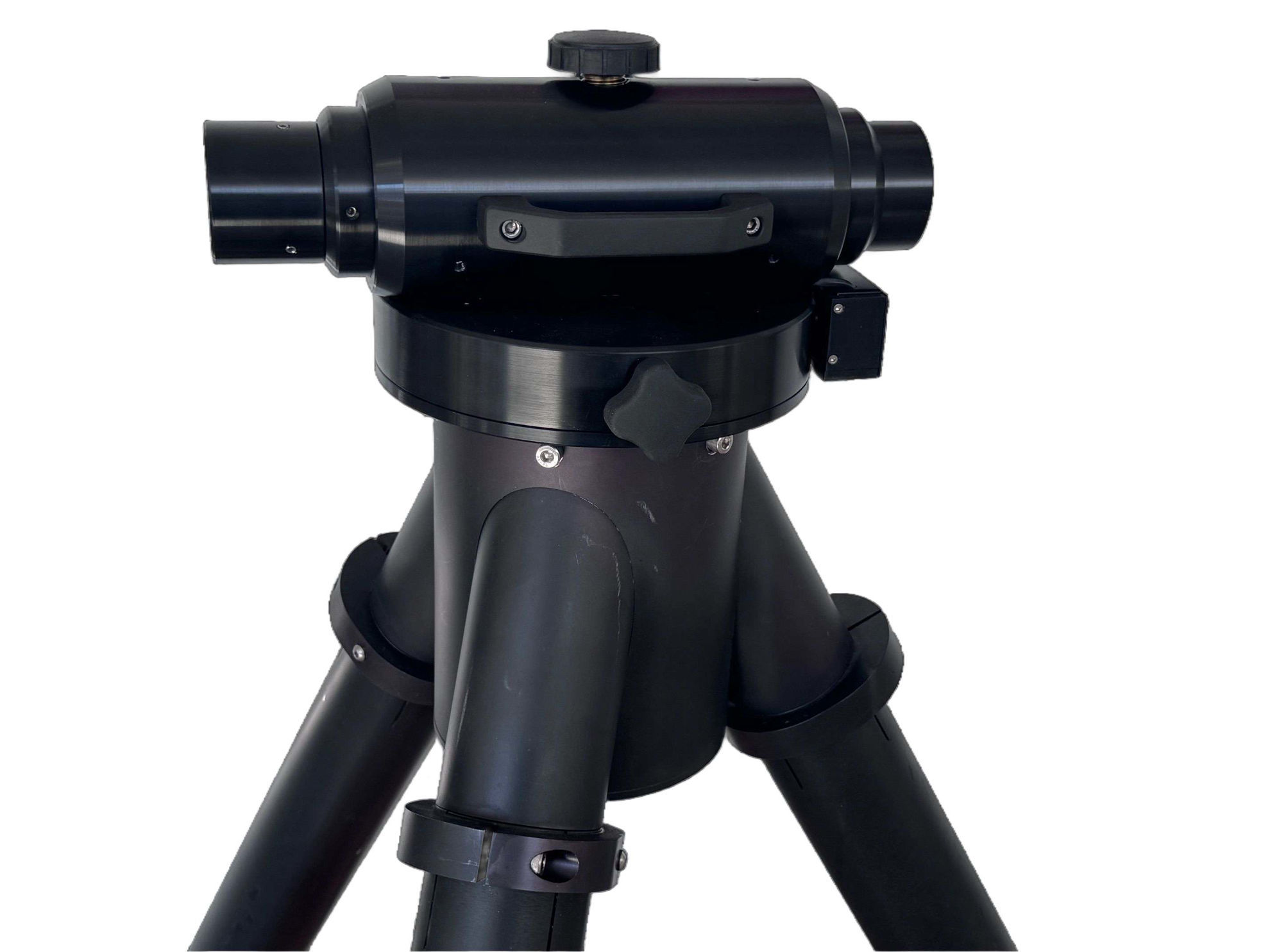

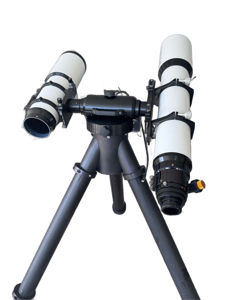

The APM-Az-XXL-Dual-ME is the two-arm version of our mount. It is easy to use and ready for action in no time. The ME version is already fitted with encoders on both axes, allowing for motorised movement using a suitable controller (controller optional!)
Features:
- High-quality materials: V2A, AlMgSi1

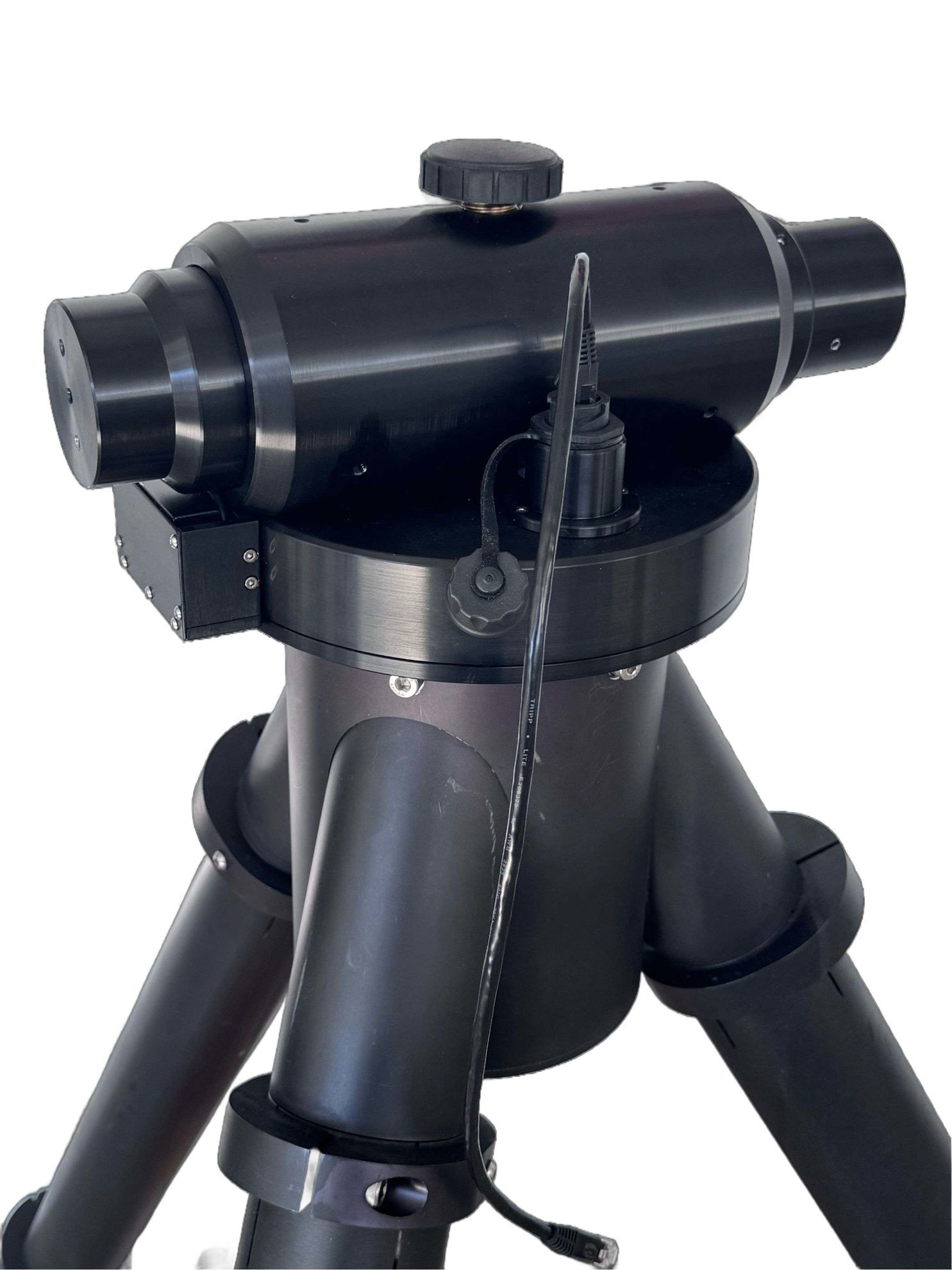

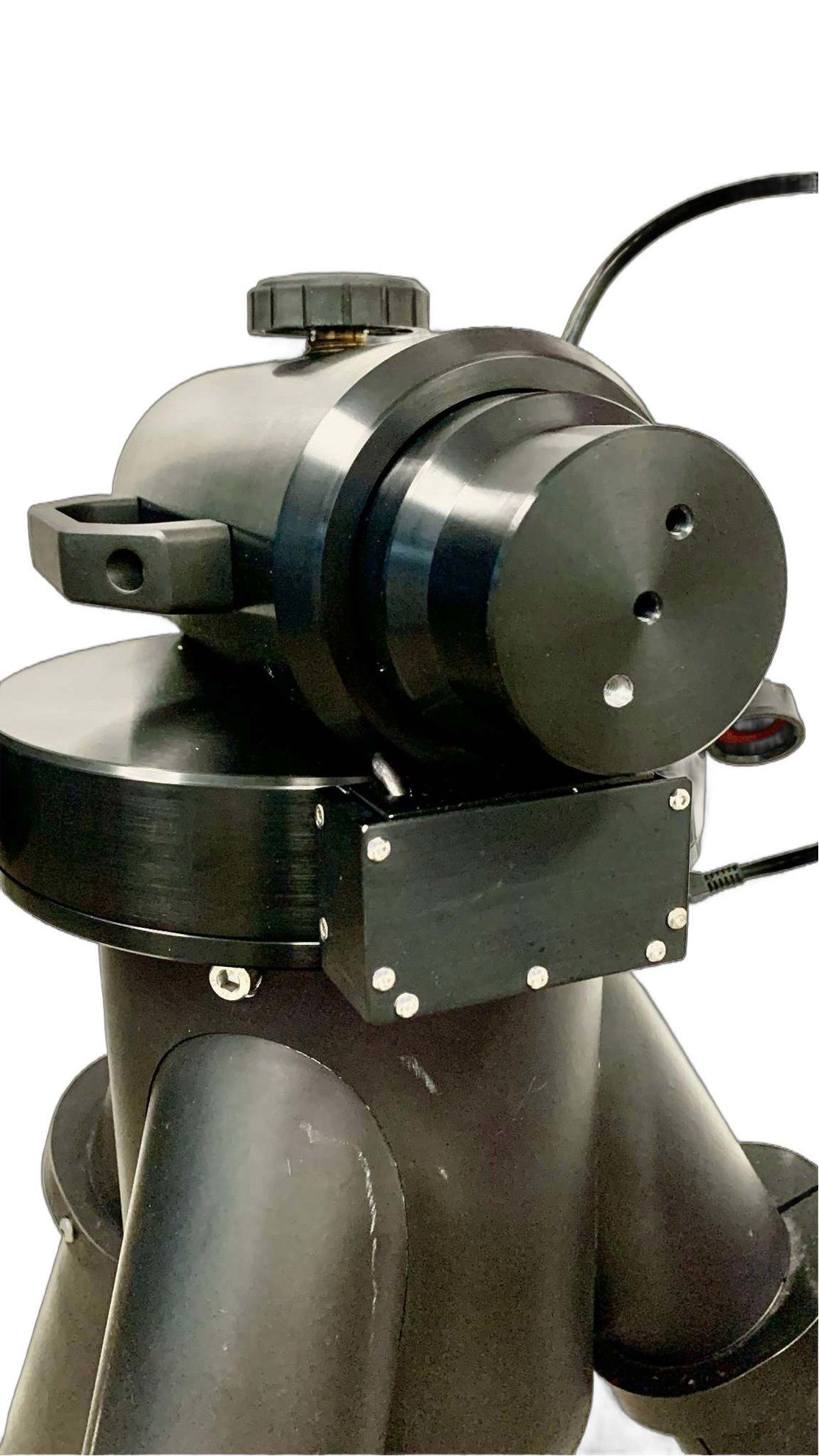

- Pre-installed encoders on both axes
- Axles of sufficient size, generously dimensioned, high-quality bearings
- Axial needle roller bearing combined with a plain bearing
- Compact dimensions, easy to transport
- Weighs just 16.70 kg
- 3/8" and M10 tripod thread mounts; other sizes available on request at no extra charge. Please specify when ordering.
- Precision shaft clamps with large locking screws
Contents of the package:
- Mounting head (dual version)
- Integrated encoders on both axes
Products specifications
|
Technical Data
|
| Counterweights |
Available as an option |
| Mounting type |
Azimuth mount |
| Total weight |
16.70 kg |
| Telescopic mount |
2 M6 screws per side (optional prism clamps) |
| Load capacity up to (depending on application and requirements) |
100 kg |
| Material |
Aluminium / Steel |
| diameter |
240 mm |
| width |
375 mm |
|
