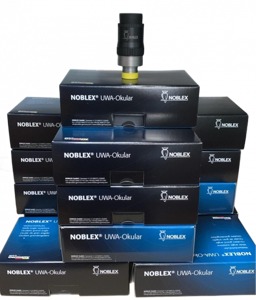

Noblex Astro-Okular UWA 12.5 mm bundle with APM TMB-design 1.8x ED Barlow.

Noblex Astro-Okular UWA 12.5 mm bundle with APM TMB-design 1.8x ED Barlow.

Two magnifications, one versatile set! The Noblex Asto UWA 12.5 mm impresses with its wide-angle view of the Moon and deep-sky objects. When paired with the APM TMB Design 1.8× ED Barlow lens, its range of applications expands to include higher magnifications for lunar and planetary observation. The advantage: greater flexibility without having to buy an additional eyepiece.
Manufacturers : Docter , APM Telescopes
SKU : NOB-57008-APM-TMB-1.8xED-Barlow
Availability : In stock
Special Price: 1399.00 € incl tax 19% (Germany)
1548.00 €
Estimated delivery time : 1-2 days (valid for new orders)
Product description

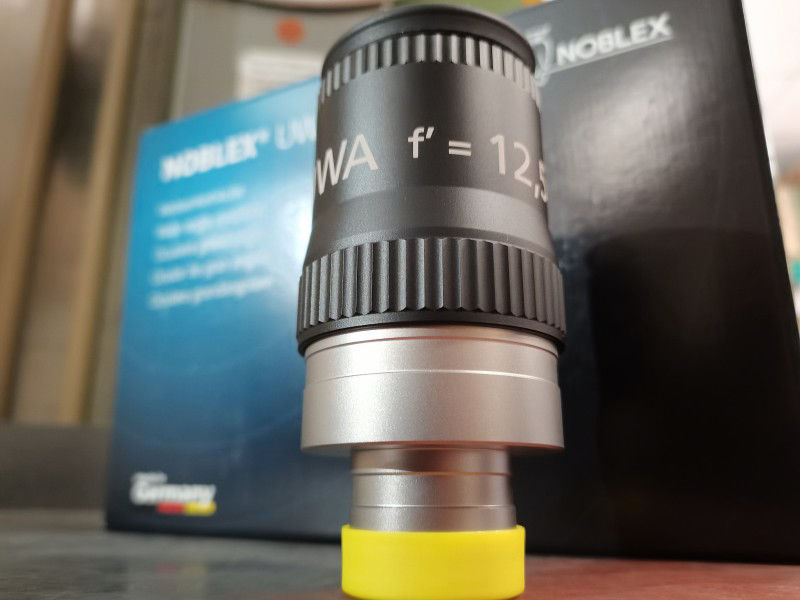

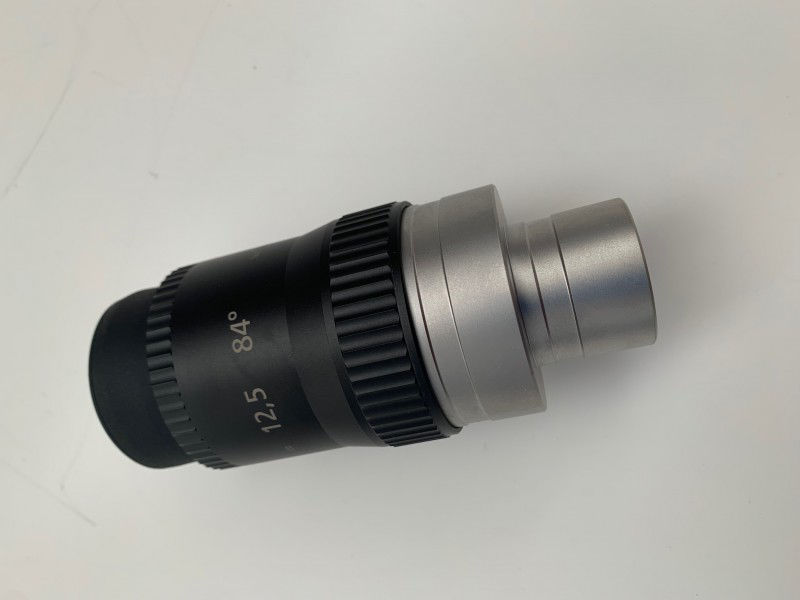

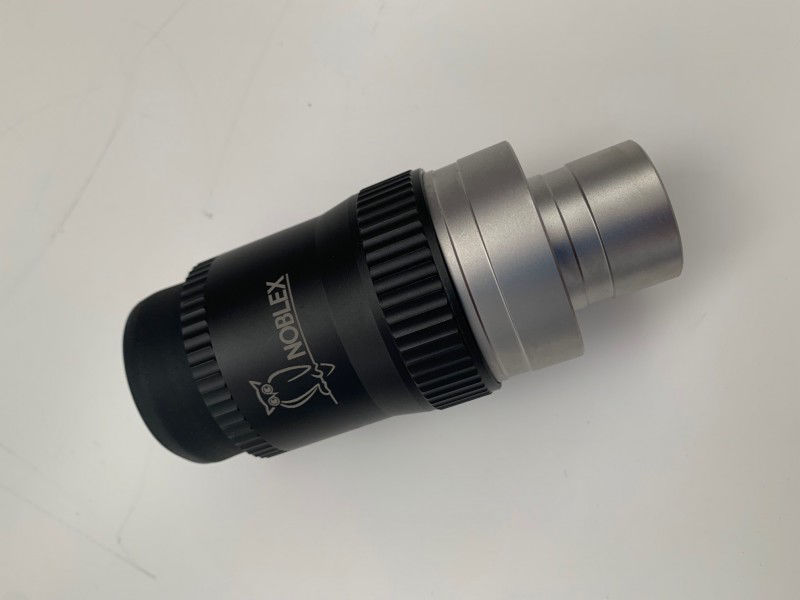

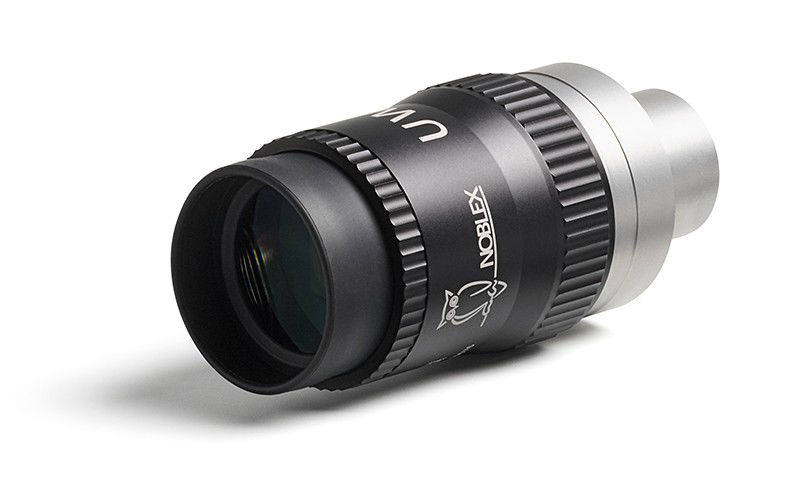

Noblex astro-eyepiece UWA 12,5mm

The Noblex Asto UWA 12.5 mm combines a wide apparent field of view with comfortable viewing and can be expanded into a versatile observation set with the APM TMB Design 1.8× ED Barlow lens. This bundle is particularly appealing to amateur astronomers who wish to observe both smaller celestial objects, such as planetary nebulae, and the Moon and planets.

The Noblex Asto UWA 12.5 mm is designed for a large apparent field of view and excellent image quality. A wide field of view makes it easier to locate and track objects and provides a particularly impressive view of star clusters, the Moon, and extensive deep-sky objects. The actual image quality also depends on the telescope’s optics and observing conditions.

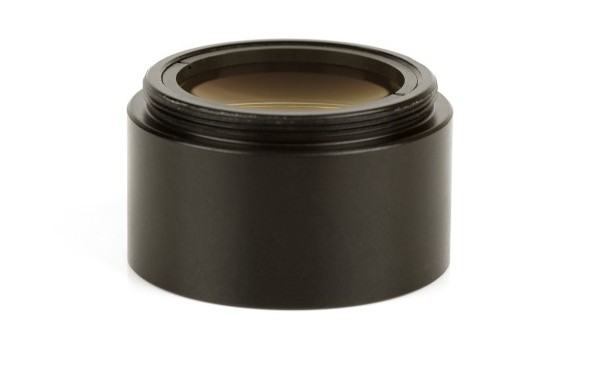

The APM TMB Design 1.8× ED Barlow lens expands the eyepiece’s range of applications. Its 1.8x magnification effectively reduces the 12.5 mm focal length to an effective eyepiece focal length of approximately 6.9 mm. This combination is therefore particularly well-suited for high-magnification lunar and planetary observations, as well as for globular clusters and compact planetary nebulae.

The bundle thus offers two magnification levels without requiring a second eyepiece. Whether this combination is worthwhile depends primarily on the telescope used: With sufficient aperture, good alignment, and a stable atmosphere, the higher magnification can reveal additional details.

Package Contents:

  • Eyepiece in packaging
  • APM TMB-design 1.8x ED Barlow.

Products specifications
Technical Data

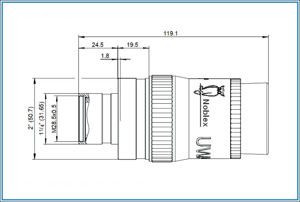

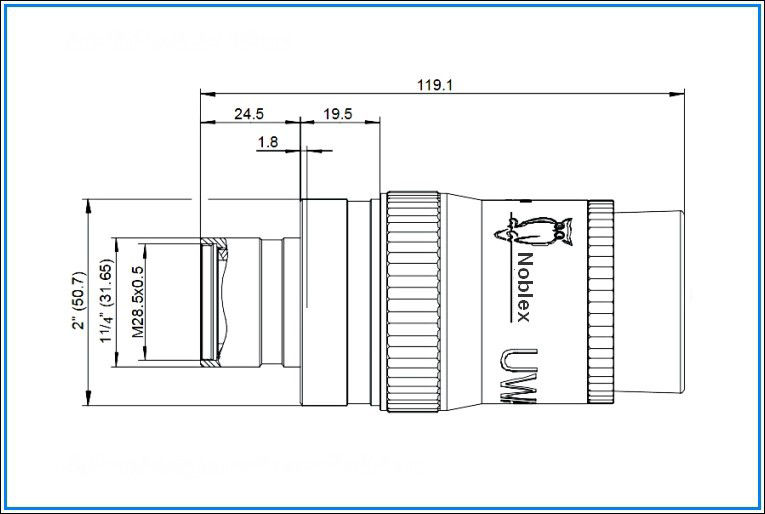

Eyepiece

Focal length12,5 mm
Weight520 g
Eye spacing18 mm
Eyepiece typeUltra-wide-angle eyepiece
Insertion diameter / filter threadCombines 1.25" and 2" with a 28.5 mm filter thread
Apparent field of view84°
Diameter54,5 mm
Field stop diameter19,2 mm
Length119 mm

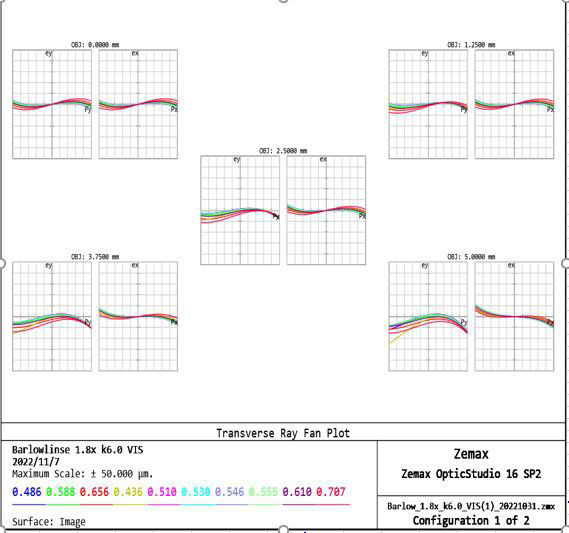

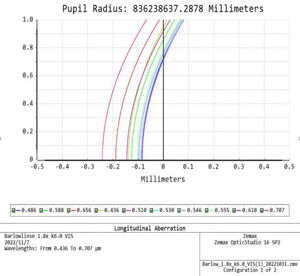

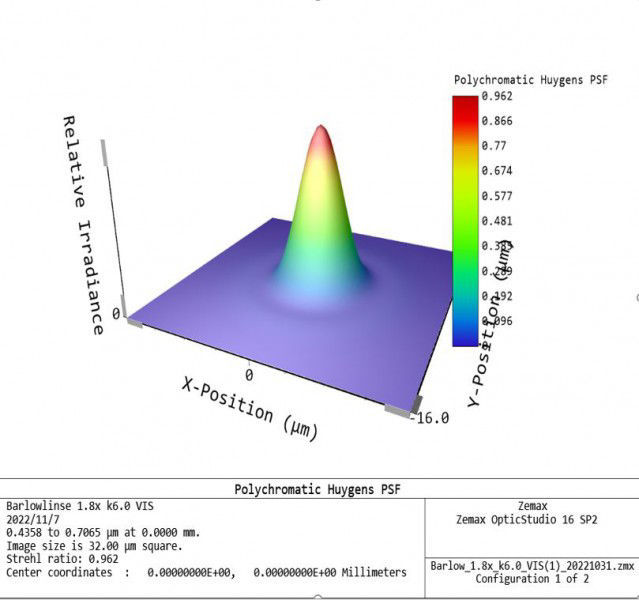

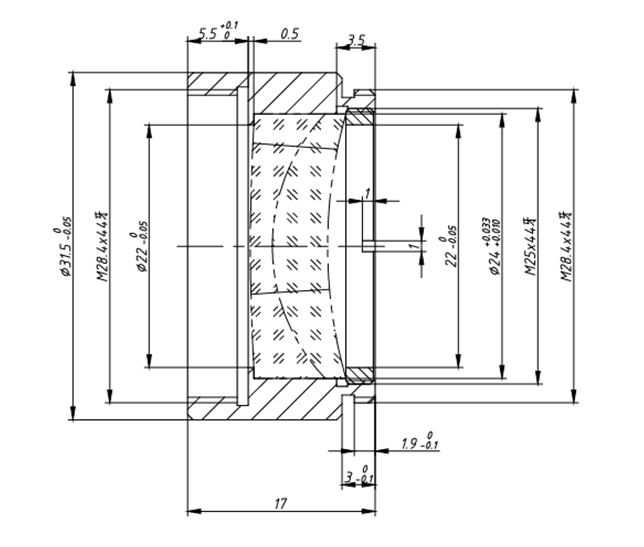

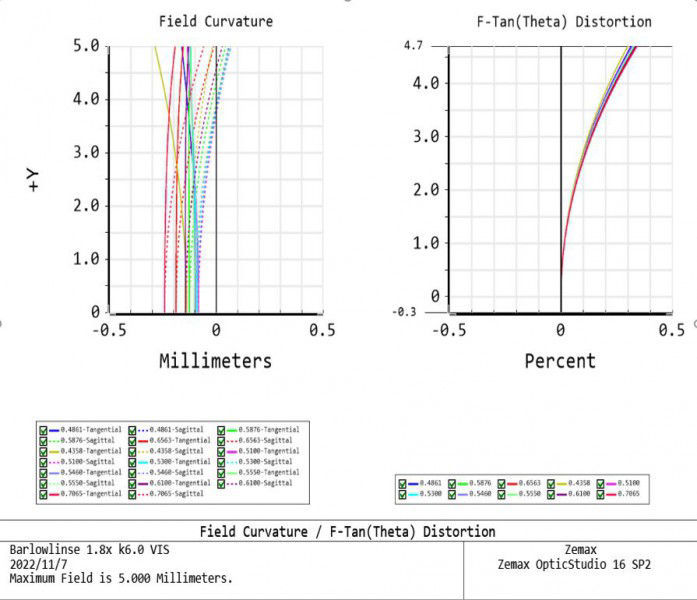

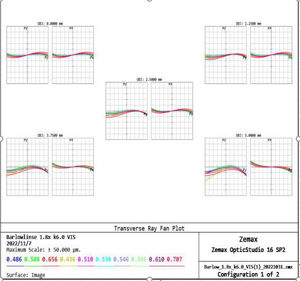

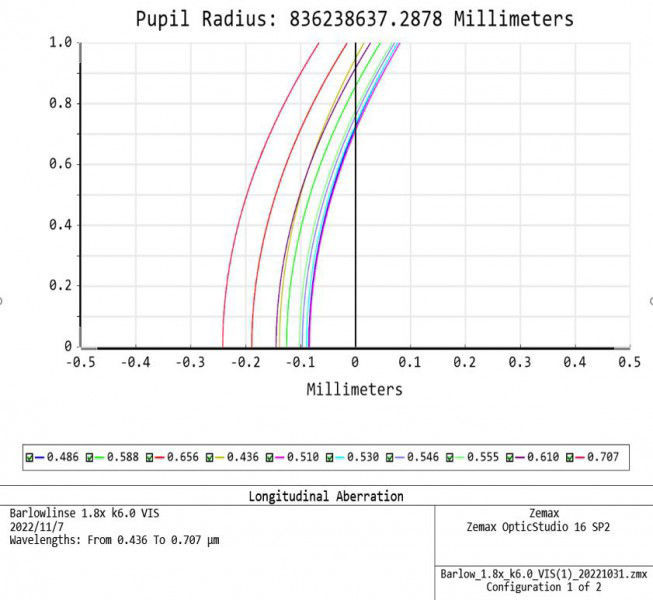

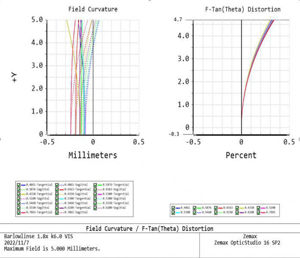

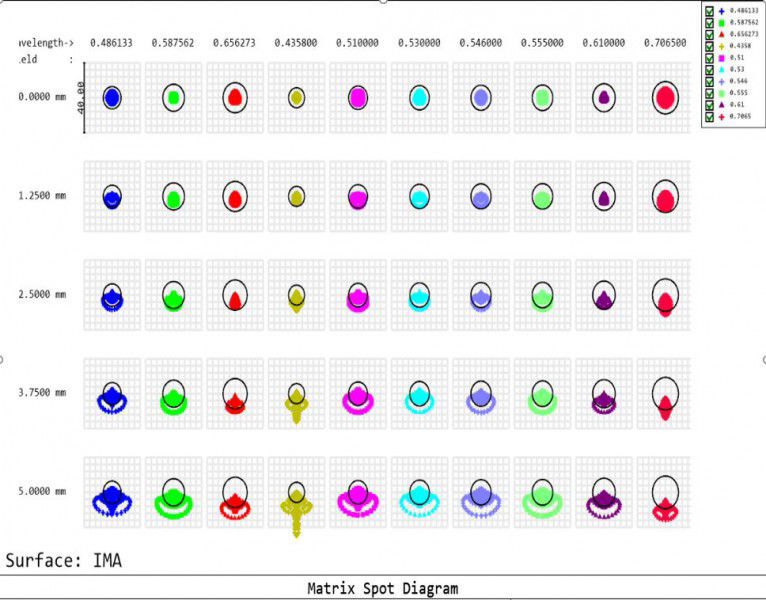

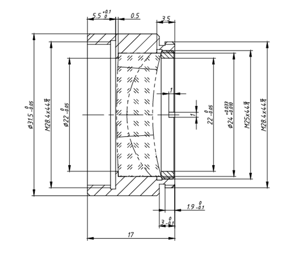

Barlowlinse

Magnification factor1,8 x
Diameter1 1/4"
Number of lenses2 lentils
Clear opening22 mm
RemunerationMulti-coating
Focal length-104.2 mm at 588 nm
