Pegasus Astro
Welcome to Pegasus Astro, the leading provider of astronomical equipment and accessories! Our company specializes in the development and manufacture of high-quality astronomical equipment that meets the needs of amateur and professional astronomers.
Our products are of the highest quality and offer the latest technology and innovations in astronomy. We offer a wide range of products, including focusers, cables, filters, controllers, and much more. Our products are compatible with various types and brands of telescopes, so everyone can use our products.
At Pegasus Astro, we take pride in our excellent customer service. Our experienced team is always ready to assist you in selecting the right product or answering any questions you may have. We are always willing to help our customers and also offer a comprehensive warranty on all of our products.
We are committed to exceeding our customers' expectations and ensuring that they are satisfied with our products and services. We are dedicated to making astronomy accessible to everyone and offer our products at competitive prices.
Join the Pegasus Astro community today and experience the fascination of astronomy with our products and excellent customer service.
- Works with bipolar or unpolar stepper motors
- Full, half, 1/4 and 1/8 step (microstepping)
- Large range of supported stepper motors
- Connector for environmental sensor
- Protected against undervoltage, overcurrent and overtemperature
- Made especially for Ultimate Powerbox v2 and Pocket Powerbox Advance
This motorized off axis guider allows for remote focusing of the guiding camera with high precison.
- Specialized for remote operation
- No external controller needed
- One cable operation
- Stepper motor for precise focusing
- Adjustable prism height
- Connects to guiding cameras with T or C mount
- Completely illuminated field of view of the guiding camera
- 50 mm clear aperture, M54 connections
- Compatible with ASCOM focus drivers or standalone software
- Attaches to the Falcon Rotator without adaptors
Very easy to operate via ASCOM drivers or standalone software, it will make your life easier by automatically adjusting your camera field with precision.
- 6 kg payload, but only 0.7 kg weight
- M54 connections avoid vignetting of large sensors
- Comes with adaptors for 2" receptacles and M48 camera rings
- Needs only 19 mm back focus
- Controlled via USB 2.0, no proprietary cable needed
- Uses ASCOM 6 for control, INDI support will follow
- Aluminum design increases rigidity
This geared stepper motor has 0.0625° steps, 60 Ncm torque and little backlash, so you can focus your telescope fast and accurately with it - even with heavy imaging equipment.
- Useful resolution of 0.0625° (3.75 arc min) per step
- High torque for handling higher loads
- Low backlash making backlash compensation easier
- RJ45 socket allows using standard network cable for connecting to PegasusAstro´s Dual Motor Focus Controller
- Universal L Shaped Bracket allows mechanical connection to many focusers
- Supplied couplers allow mechanical connection to many focusing shafts
Focus fast, reliably and accurately your telescope using a stepper or DC motor and this controller.
- versatile, you can use your own motor instead of having to use one of PegasusAstro - and using another motor requires (perhaps) another cable, not another controller
- PC operation is standard, but manual operation does not even need a separate hand controller
- Temperature probe included
- Backlash compensation possible via firmware
- ASCOM and INDI compliant, but comes with a standalone program for Windows
- Firmware upgrade possible
Proudly standing between Pocket and Ultimate Powerbox, it has been designed to provide more advanced features than Pocket Powerbox in a more compact / quality design.
- 4 x 12 V DC power outlets for your equipment (a single channel to switch all four outputs ON/OFF via software)
- 12 amps of total distributed current
- Adjustable output (3, 5, 8, 9, 12 V) / 3 A (can be switched ON/OFF) - power your DSLR / mirrorless camera
- Embedded powered USB3 hub ? 4 x USB3 ports or 3 x USB2 ports available
- 1 x power USB port (up to 3 amps) ? suitable for powering Raspberry PI 3/4
- Port (RJ12) for external accessories (like external focus controller)
- 2 channels with PWM for dew heaters ? RCA outputs (tune levels via software)
- Humidity and temperature sensor (included)
- Auto tune dew heater channels
- Reverse polarity protection
- USB / PC controlled or standalone pperation out of the box
- Lightweight and extremely compact aluminium enclosure

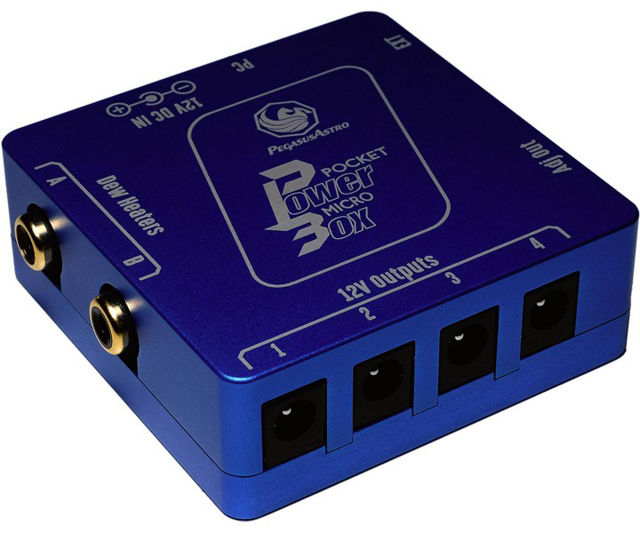

This device is a practical power supply for the "grab and go" astrophotographer who does not want too much automation.
- 4 x 12 V DC power outlets for your equipment (ON/OFF via software)
- 10 amps of total power
- DSLR output (can be switched ON/OFF)
- 2 channels with PWM for dew heaters RCA outputs (tune levels via software)
- Humidity and temperature sensor (included)
- Auto tune dew heaters
- Reverse polarity protection
- USB / PC controlled or standalone operation out of the box
- Lightweight and extremely compact enclosure
With its coaxial power connector 5.5/2.1 mm, this power supply is suitable for Pocket Powerbox (PPB) and many other Pegasus products.
- Well matching the mentioned Pegasus Astro products
- Also available with other DC plugs
- Also available with other power cords
- Large range of input voltages
- Regulated with low ripple and noise
- Protected against damaging working states
- Sealed against dust and humidity
With its coaxial power connector 5.5/2.1 mm, this power supply is suitable for Pocket Powerbox (PPB) and many other Pegasus products.
- Well matching the mentioned Pegasus Astro products
- Also available with other DC plugs
- Also available with other power cords
- Large range of input voltages
- Regulated with low ripple and noise
- Protected against damaging working states
- Sealed against dust and humidity
With its coaxial power connector 5.5/2.1 mm, this power supply is suitable for Pocket Powerbox (PPB) and many other Pegasus products.
- Well matching the mentioned Pegasus Astro products
- Also available with other DC plugs
- Also available with other power cords
- Large range of input voltages
- Regulated with low ripple and noise
- Protected against damaging working states
- Sealed against dust and humidity
With its coaxial power connector 5.5/2.5 mm, this power supply is suitable for Pocket Powerbox (PPB) and many other Pegasus products.
- Well matching the mentioned Pegasus Astro products
- Also available with other DC plugs
- Also available with other power cords
- Large range of input voltages
- Regulated with low ripple and noise
- Protected against damaging working states
- Sealed against dust and humidity
