Schnellkupplungen/Wechselplatten

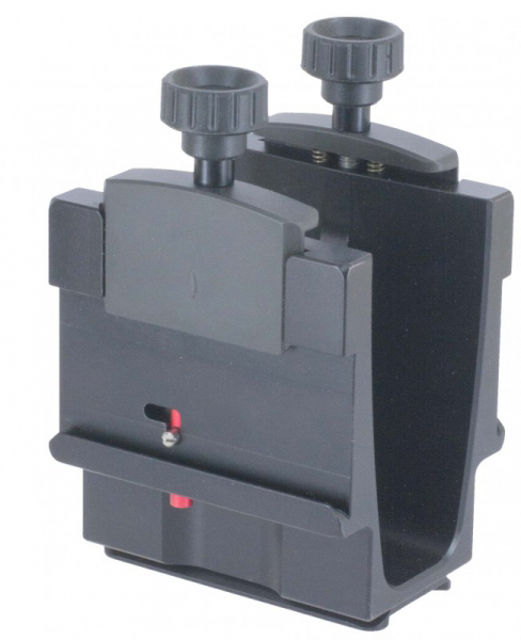

An die Dualkupplung 160 kann man zwei Kameras mit Wechselplatten (UniQ/C bzw. ArcaSwiss kompatibel) anbringen. Die verwindungssteife Konstruktion aus CNC-gefrästen Aluminium garantiert maximale Stabilität bei minimalen Platzbedarf. Aufgrund der Belastbarkeit von 10 kg je Kupplung ist sie prädestiniert auch zum Arbeiten mit großen Kameras und schweren Optiken. Abmessung LxBxH: 90 x 80 x 140 mm Belastbar bis 20 kg

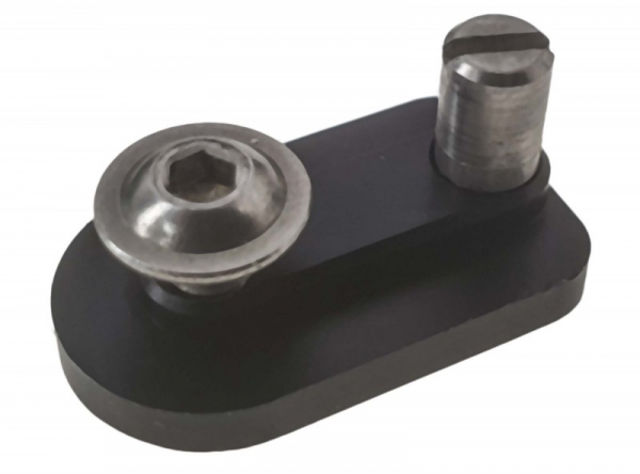

Der Flexpin D5,5 ermöglicht Ihnen eine flexible verdrehsichere Positionierung der Wechselplatte an Ihrem Equipment. Er ist nur für Original Berlebach-Wechselplatten der Längen 117, 157 und 227 mm geeignet. Ideenstiftend waren hierfür die Swarovski-Spektive ATX/STX und ATS 65.

The ideal connecting element between a compact camera and an Arca-Swiss-compatible quick-change plate or a strap system.

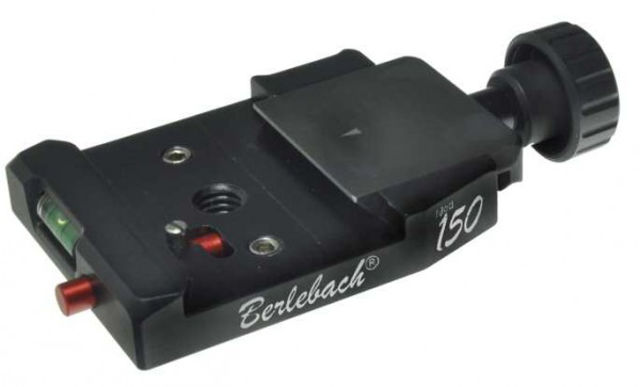

- small Quick-Release Coupling with Quick-Change Holder 40 mm long - we offer other different lenghts of quick-change holders too (see accessories) - compatible with different dovetail plates other companies (Arca-Swiss, Novoflex, Burzynski) - with rubberstring for turnprotection - integrated spirit level - Base thread 1/4" and 3/8" - weight without plate : 90 g / 0.19 lb

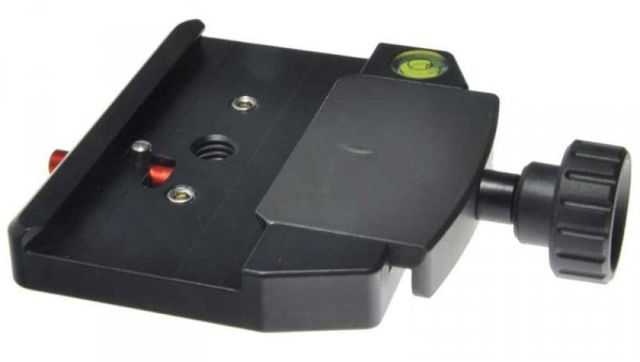

- Quick-Release Coupling - without Quick-Change Holder - we offer other different lenghts of quick-change holders too (see accessories) - compatible with different dovetail plates other companies (Arca-Swiss, Novoflex, Burzynski) - with rubberstring for turnprotection - integrated spirit level - Base thread 1/4" and 3/8" - size 68 mm x 94 mm x 16 mm / 3.7" x 2.6" x 0.6" - weight plate : 155g / 0.35lb

- Delivery includes two change plates 1/4" (round for loads up to 2 kg and interlocking to maximum 2 kg) - The round change plate can be used positionally independent, while the interlocking change plate can only be attached into the base - Furthermore the interlocking change plate is equipped with a screwed locking pin to avoid unintended twisting of the camera respectively tripod - Integrated spirit level - Mounting thread 1/4" and 3/8" - Size: 6 x 6,5 x 1,1 cm

- the delivery is without Quick-Change Holders - we offer different lenght of quick-change holders (accessories) - we recommand you the quick-change holder with 57 mm length (item no. 320281) - compatible with different dovetail plates other companies (Arca-Swiss, Novoflex, Burzynski) - with rubberstring for turnprotection - Integrated spirit level - Mounting thread 1/4" and 3/8" - Size: 105 x 60 x 18 mm

Quick Release Coupling for big lenses - Big support plate - Compatible with different dovetail plates (Arca-Swiss, Novoflex, Burzynski) - Delivery without quick-change holder - we offer different lenght of quick-change holders (accessories) - recommand you the quick-change holder with 87 mm length (item no. 320282) - with rubberstring for turnprotection - Integrated spirit level - With lock screws - Mounting thread 3/8" - Size: 95 x 90 x 18 mm

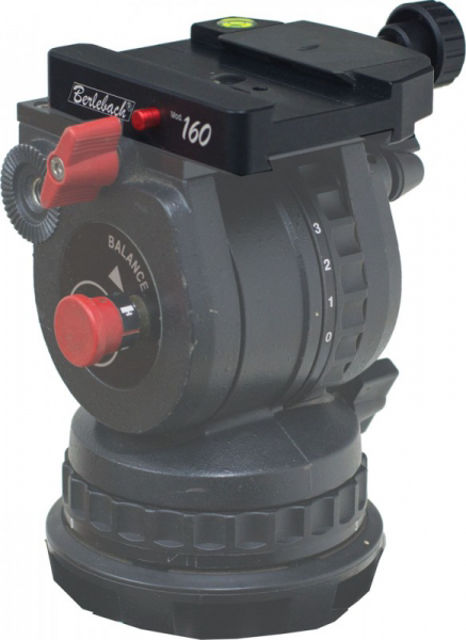

Diese Schnellkupplung ist passend gearbeitet für den Sachtler Video 14/100. Der rote Sicherheitspin verhindert unbeabsichtigtes Herausrutschen der Kamera. Die Feststellschraube für den Druckschuh ist verliersicher.

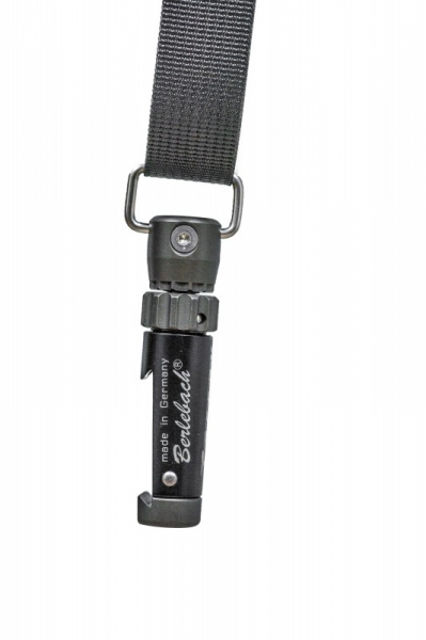

There are many camera safety belt systems on the market, but with Berlbebach?s SPEEDY, handling the camera becomes even faster and less complicated. By contrast to other designs, the system cannot be detached by itself. This is realised with the help of a patented spring clip system, which only releases your change plate when you wish it to! All Berlebach, Arca, Kirk and Really Right Stuff, Novoflex and Burzynski change plates can be used. How is the SPEEDY different from other systems? The SPEEDY is not screwed directly into the camera ? instead, it is mounted onto your change plate ? therefore, cumbersome switching between safety belt and change plate will no longer be necessary. Simply loosen the SPEEDY and place the camera onto the tripod head, and you?re ready to go! (If the change plate is long enough, you won?t even need to loosen the SPEEDY.)

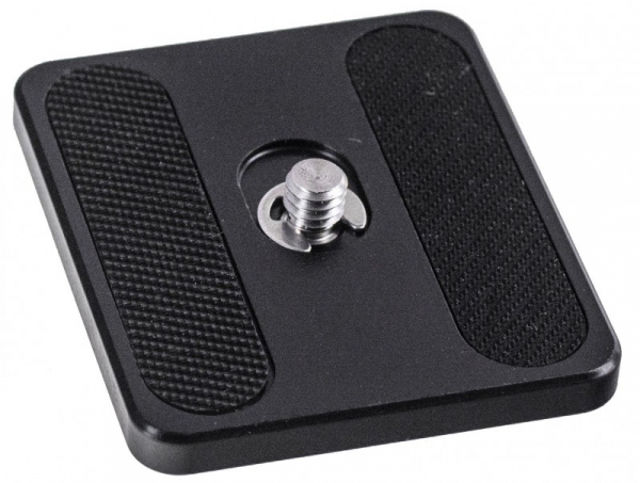

Quick-change plate for fast mounting of a camera on a suitable tripod

- Two thread screws and locking pin - Length: 117 mm
