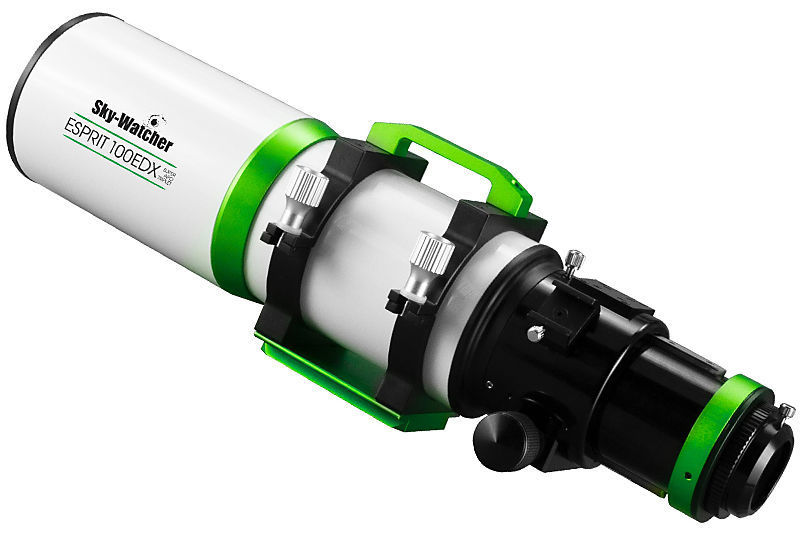

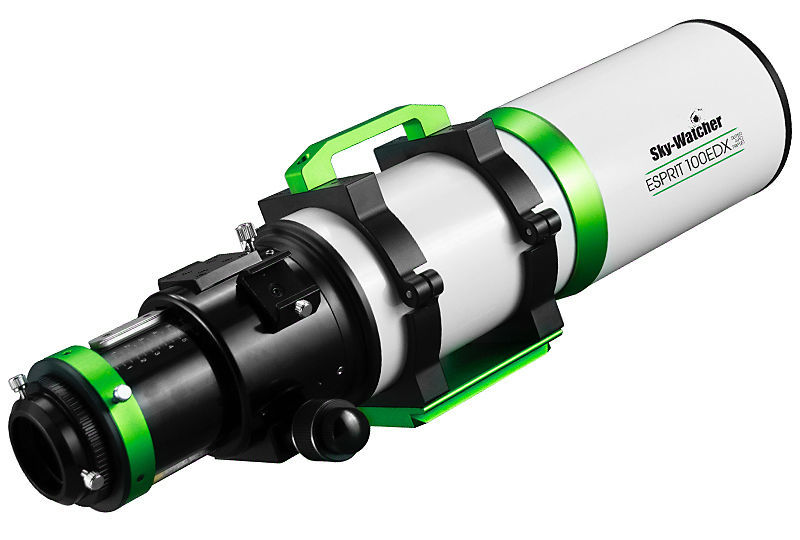

Skywatcher Esprit 100EDX 100 mm f/5.5 Triplet APO Refractor

Skywatcher Esprit 100EDX 100 mm f/5.5 Triplet APO Refractor

The Esprit-100EDX from Skywatcher offers the highest optical and mechanical quality and is optimized for astrophotography.

  • Aperture 100 mm
  • Focal length 550 mm (focal ratio f/5.5)
  • Triplet apo objective with FPL53 ED element
  • Improved 3" dual-speed focuser for high payload
  • 360° rotation
  • 2" connection with additional thread for screw adaptations
  • Dew shield (fixed)
  • Carrying handle, Losmandy style dovetail bar, carrying case
SKU : SKY-10299
Price: 1579.00 € incl tax 19% (Germany)
Estimated delivery time : 3-4 days (valid for new orders)
Product description

This apo offers some more aperture and focal length than the smaller Esprit-EDX, using a triplet objective with an APO element made of Japanese Ohara FPL53. The fast apo is primarily designed for mobile astrophotography. With the # 20188 flattener, the Esprit-100 becomes a powerful astrograph with a flat field of view, whereby the high speed of f/5.5 is maintained and ensures short exposure times. The ESPRIT has a 360° rotator built into the eyepiece side, allowing perfect orientation of the camera to the object. The focuser itself, now a 3" version, can also be rotated.

Skywatcher ESPRIT EDX Apo - optical and mechanical perfection
ESPRIT apochromats from Skywatcher are known for their very good optics with color-pure imaging. Numerous outstanding deep-sky photos, but also high-resolution lunar and planetary photos as well as testimonials from many satisfied observers prove this. The new ESPRIT EDX use the same proven optics as their predecessors, but offer an improved mechanical design. The focuser in particular has been significantly improved and now also impresses demanding astrophotographers.

  • Dual-speed 11:1 focuser with 3" drawtube and 360° rotation
  • Backlash-free focusing even with heavy loads
  • MHTC ("Metallic High-Transmission Coatings") multi-coated triplet objective
  • 2" connection on the eyepiece side and threaded connection for correctors
  • CNC-machined dovetail bar, tube rings and carrying handle
  • Aluminum tube with internal baffles
  • Finder shoe for finders and mini guide scopes

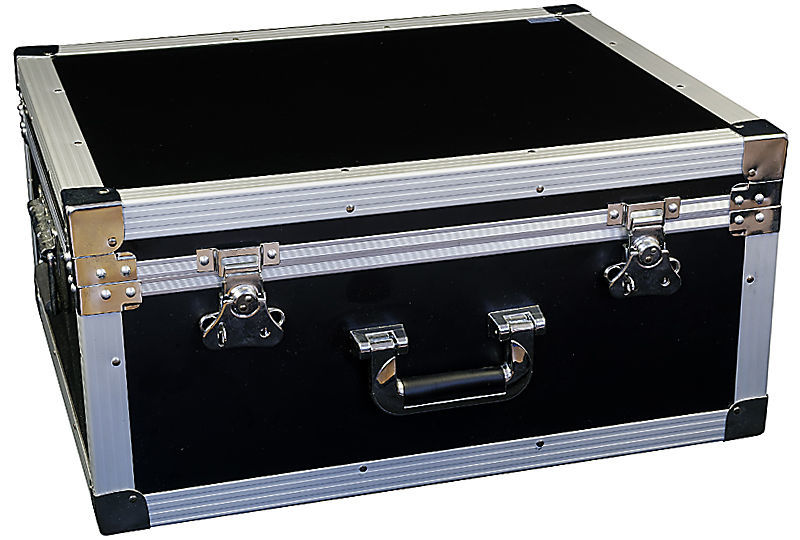

  • High-quality transport case with aluminum frame and foam lining

Scope of Delivery:

  • Esprit telescope
  • Tube rings with handle
  • Losmandy style dovetail bar
  • Transport case

Eyepieces, star diagonal, corrector and finder are not included in the scope of delivery

Aperture:100 mm
Focal length:550 mm
Focal ratio:f/5.5
Focuser:Dual-speed 3" rack and pinion and Linear Power focuser
Eyepiece side connections:2" and screw thread for corrector
Rotation:360° rotation at the drawtube, 360° rotation at the focuser
Objective:Triplet apo objective with FPL53 as apo element
Coating:MHTC ("Metallic High-Transmission Coatings") multi-coating
Dovetail bar:Losmandy style
Tube:Aluminum tube with internal baffles
Length:565 mm
Weight:7.36 kg
Shipping weight:21.7 kg
Shipping size:68 cm x 58 cm x 40 cm
