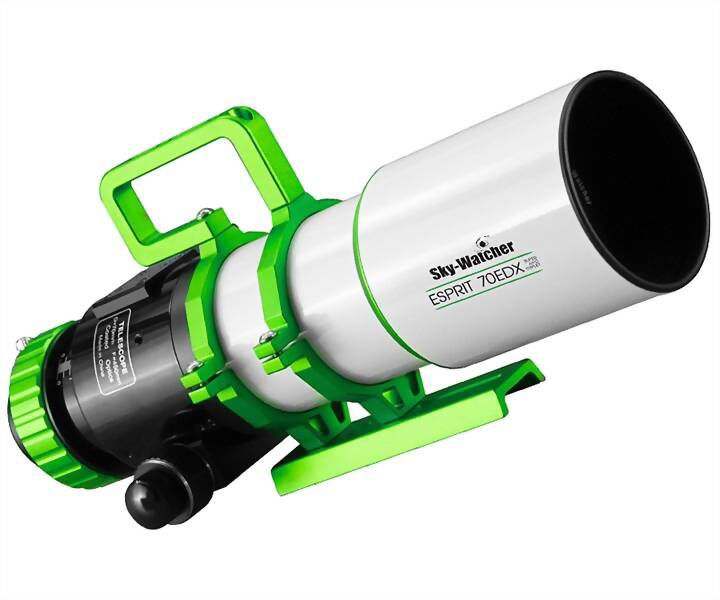

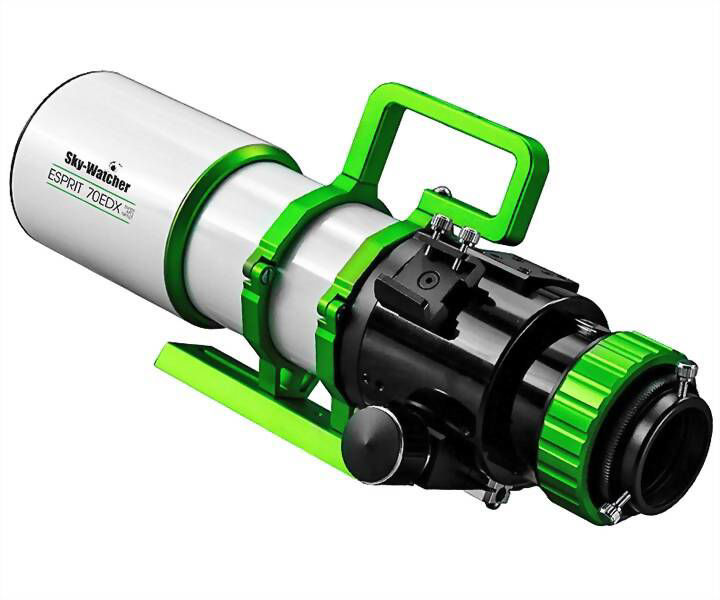

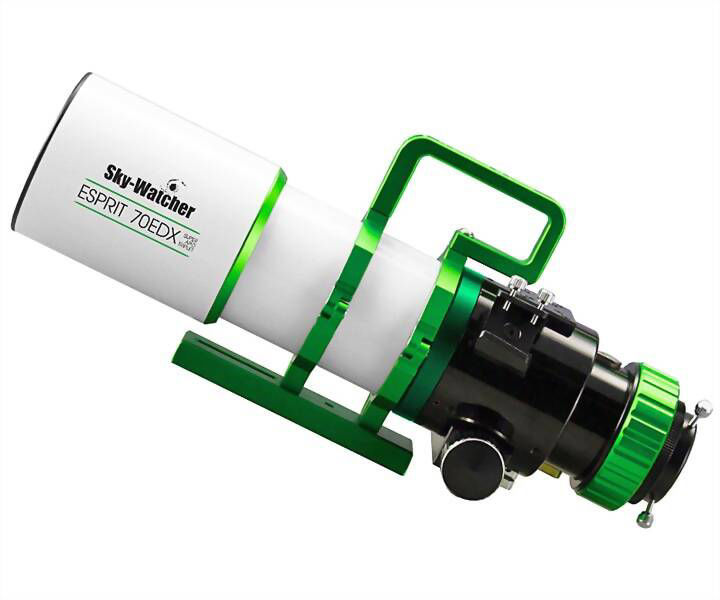

Skywatcher Esprit 70EDX 70 mm f/7 Triplet APO Refractor

Skywatcher Esprit 70EDX 70 mm f/7 Triplet APO Refractor

The Esprit-70EDX from Skywatcher offers the highest optical and mechanical quality and is optimized for astrophotography.

  • Aperture 70 mm
  • Focal length 490 mm (f/7)
  • Triplet apo objective with FCD100 ED element
  • Improved 2.8" dual-speed focuser for high payload
  • 360° rotation
  • 2" connection with additional thread for screw adaptations
  • Retractable dew shield
  • Carrying handle, Vixen GP style dovetail bar, carrying case
Manufacturer : Skywatcher
SKU : SKY-10302
Price: 919.00 € incl tax 19% (Germany)
Estimated delivery time : 3-4 days (valid for new orders)
Product description

This small travel apo is particularly compact, its triplet objective has a lens made from Japanese Hoya FCD100ED as the APO element. The compact apo is primarily designed for mobile astrophotography. With the # 20332 0.92x corrector, the Esprit-70 becomes a powerful astrograph with a fast f/6.4. The ESPRIT has a 360° rotator built into the eyepiece side, allowing perfect orientation of the camera to the object.

Skywatcher ESPRIT EDX Apo - optical and mechanical perfection
ESPRIT apochromats from Skywatcher are known for their very good optics with color-pure imaging. Numerous outstanding deep-sky photos, but also high-resolution lunar and planetary photos as well as testimonials from many satisfied observers prove this. The new ESPRIT EDX use the same proven optics as their predecessors, but offer an improved mechanical design. The focuser in particular has been significantly improved and now also impresses demanding astrophotographers.

  • Dual-speed 11:1 focuser with 2.8" drawtube and 360° rotation
  • Backlash-free focusing even with heavy loads
  • MHTC ("Metallic High-Transmission Coatings") multi-coated triplet objective
  • 2" connection on the eyepiece side and threaded connection for correctors
  • CNC-machined dovetail bar, tube rings and carrying handle
  • Aluminum tube with internal baffles
  • Finder shoe for finders and mini guide scopes

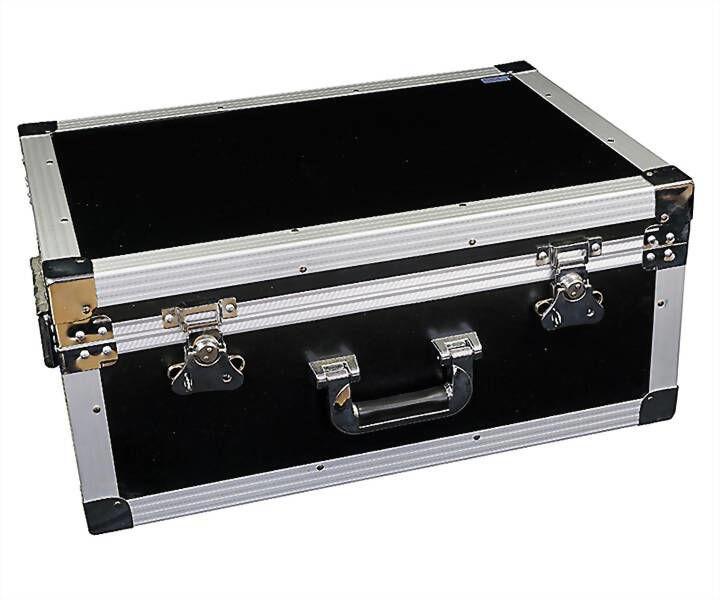

  • High-quality transport case with aluminum frame and foam lining

Scope of Delivery:

  • Esprit telescope
  • Tube ring with handle
  • Vixen style dovetail bar
  • Transport case
  • Eyepieces, star diagonal, corrector and finder are not included in the scope of delivery

Aperture:70 mm
Focal length:490 mm
Focal ratio:f/7
Focuser:Dual-speed 2.8" rack and pinion and Linear Power focuser
Eyepiece side connections:2" and screw thread for corrector
Rotation:360° rotation at the drawtube
Objective:triplet apo objective with FCD100 as apo element
Coating:MHTC ("Metallic High-Transmission Coatings") multi-coating
Dovetail bar:Vixen GP style
Tube:aluminum tube with internal diaphragms
Length:368 mm Transport length - 420 mm with dew shield extended
Weight:3.2 kg
