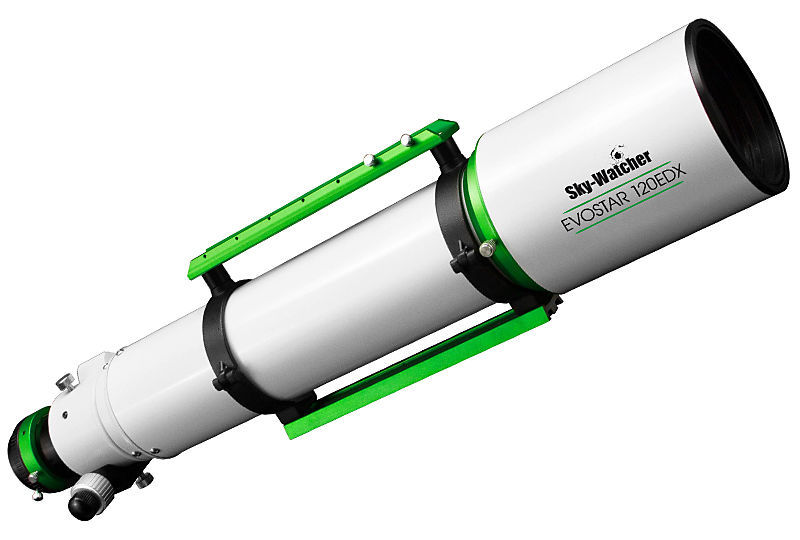

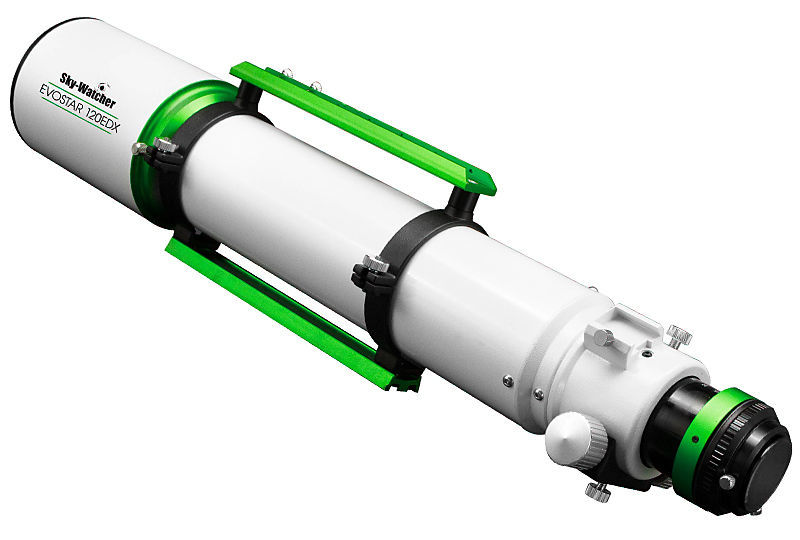

The Evostar-120ED apochromatic doublet refractor has received some exciting upgrades. We are pleased to introduce the new EVOSTAR-120EDX model, which is the result of several very useful mechanical improvements. Presented in its stunning new white and green livery, the EVOSTAR-120EDX is a superb instrument for both imaging and visual use, with the necessary accessories.
The new EVOSTAR-120EDX model now includes an enlarged 2.8” indexed focuser drawtube with a built-in 360° rotatable adaptor, a retractable dew shield and a top accessory rail which conveniently doubles as a carrying handle.
Featuring the same great proprietary f/7.5 matched optics as the previous model, including one premium Japanese Ohara FPL-53 ED glass lens element which virtually eliminates chromatic aberration. An optional optically matched 0.85x Focal Reducer/Field Flattener (code 20234) is available for imaging.
The optics deliver tack-sharp stars with charcoal-black, contrast-rich skies. Each air-to-glass lens surface has exotic anti-reflection metallic coatings applied, to ensure optimum light throughput of approaching 99.5%!! The proprietary Sky-Watcher “Metallic High-Transmission Coatings” (MHTC) are the finest photon anti-rejection coatings in their class.
Apochromatic Refractors, due to their unobstructed, text-book like diffraction patterns, produce the sharpest, highest quality optical imaging available, bar-none, aperture for aperture, of any telescope optical system.
For a long time, Evostar-ED doublets have been the imaging refractors of choice for many astrophotographers due to the combination of their excellent imaging performance and affordability. Due to less glass in their construction, they are also usually much lighter weight and more convenient to handle than an equivalent aperture triplet or other multi-element ED refractor designs.
Please note: Supplied without eyepiece, star diagonal & finderscope.
Scope of Delivery:
- ED 120/900 mm with dual-speed Crayford focuser
- Tube rings with handle
- Dovetail bar

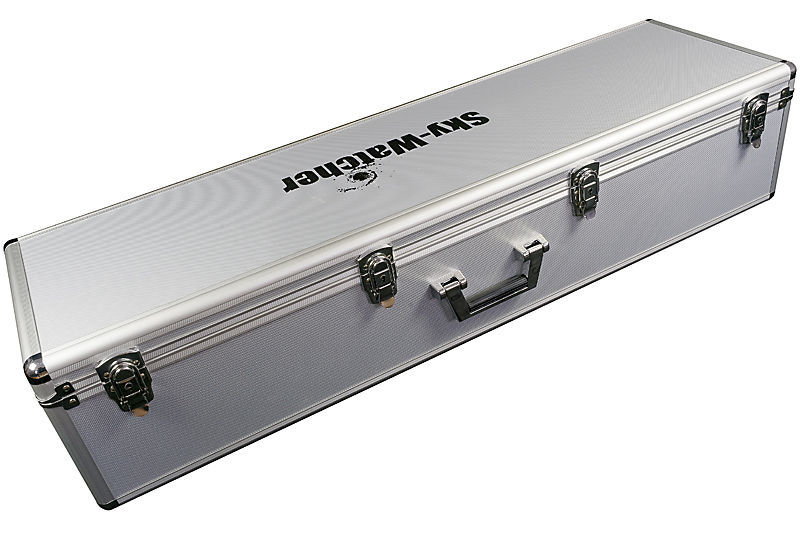

- Aluminum case
| Aperture: | 120 mm |
| Focal length: | 900 mm |
| Focal ratio: | f/7.5 |
| ED glass: | S-FPL53 (Ohara, Japan) and Schott crown glass |
| Coating: | "Metallic High-Transmission Coatings" (MHTC) on all glass-air surfaces |
| Visual limiting magnification: | 13m1 |
| Resolution: | 0.96" |
| Focuser: | 2.8" Crayford with 1/11 speed reduction and 2" adapter |
| Connection thread for correctors: | M56x1 external thread |
| Focusing scale: | yes |
| Rotation mechanism: | yes, 360° |
| Finder shoe: | Vixen standard |
| Tube rings: | with handle |
| Dovetail bar: | Vixen style |
| Tube length: | 774 mm (dew shield retracted), 848 mm (dew shield extended) |
| Tube weight: | 6.5 kg |
