SVBONY SV210 M63 CAA 360 Degree Rotator Camera Angle Adjuster for SV550 80F6 Visual Rotation Black

SVBONY SV210 M63 CAA 360 Degree Rotator Camera Angle Adjuster for SV550 80F6 Visual Rotation Black

SVBONY SV210 M63 CAA 360 Degree Rotator Camera Angle Adjuster for SV550 80F6 Visual Rotation Black

  • Camera angle adjuster; The CAA image field angle adjuster can easily adjust the shooting angle without rotating the main mirror, saving customers the tedious installation and disassembly process;
  • CAA 360-degree rotator; Improve the stability and portability of the shooting process, it is mainly used for astrophotography scenes;

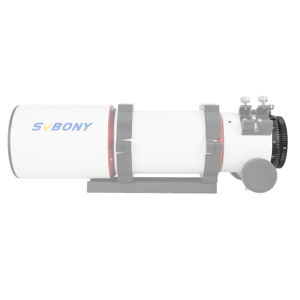

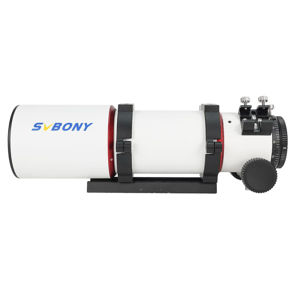

  • Camera angle adjuster for SV550 refracting APO telescope, also compatible with astronomical telescope lens barrel with M63x1 threaded astronomical focusing mounts;

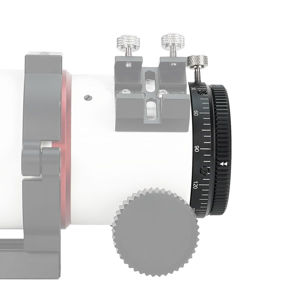

  • locking screw M4; With locking and positioning function, the camera can be positioned at any position;
  • CAA with field flattener can correct the defects of the field curvature of the shooting target, and improve the imaging quality and shooting efficiency at the edge of the field of view;
Manufacturer : Svbony
SKU : SV210
Price: 59.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days (valid for new orders)
Product description

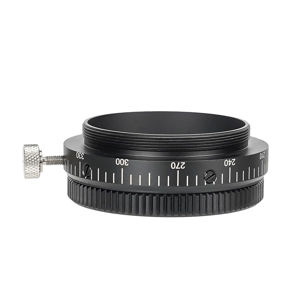

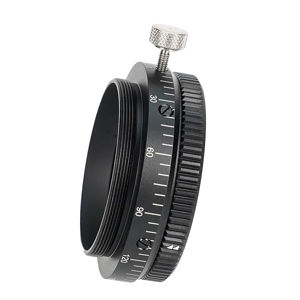

The SVBONY SV210 is a rotatable camera angle adapter (CAA) with 360-degree rotation. It is specially designed for astrophotography, for example in conjunction with the SVBONY SV550 telescope, but can generally be used wherever an M63 × 1 thread is available.

Advantages

  • Flexibility in image composition: The 360° rotation allows the camera to be positioned in any orientation, which is particularly useful when using filter wheels, guide scopes, or in confined spaces.
  • Easier setup: Instead of having to readjust the entire telescope tube or mount, all you need to do is rotate the beam path.
  • Solid workmanship: User reviews mention a stable impression and a deliberately somewhat stiff rotation mechanism, which supports precise fine alignment.

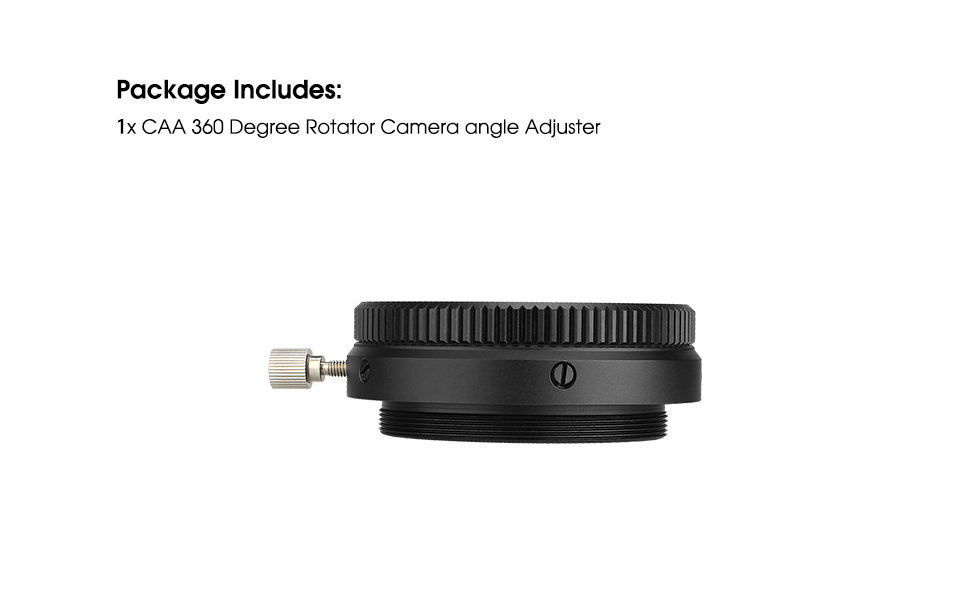

Scope of delivery:

  • Adapter
Products specifications

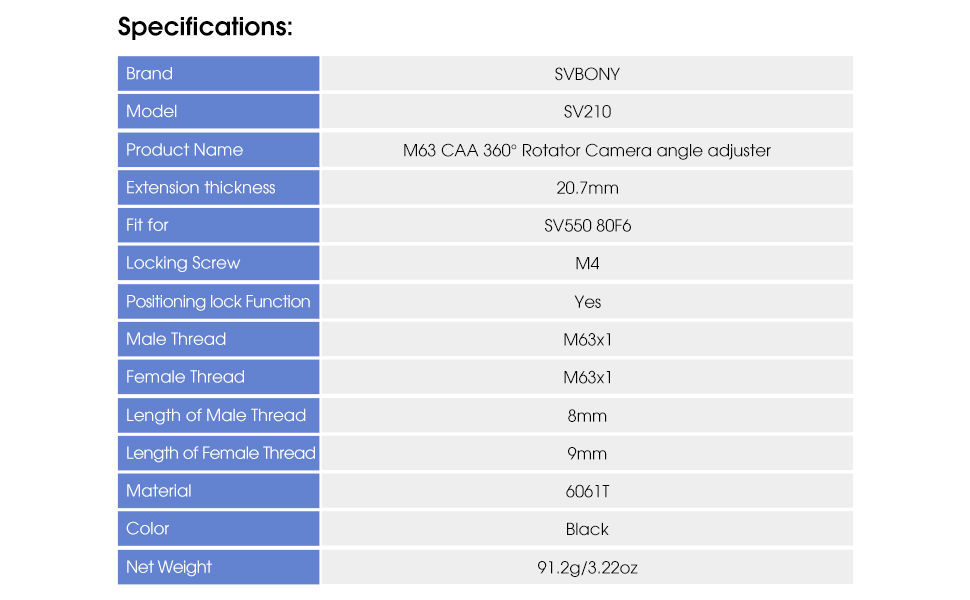

Technical Data
BrandSVBONY
ModelSV210
Product NameM63 CAA 360° Rotator Camera angle adjuster

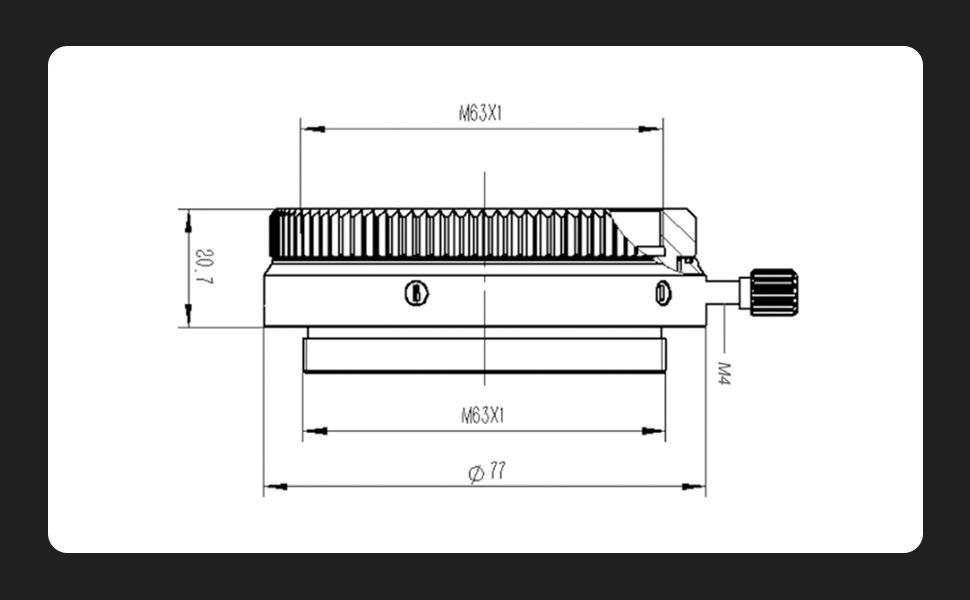

Extension thickness20.7mm
Fit forSV550 80F6
Locking ScrewM4
Positioning lock FunctionYes
Male ThreadM63x1
Female ThreadM63x1
Length of Male Thread8mm
Length of Female Thread9mm
Material6061T
ColorBlack
Net Weight91.2g/3.22oz
