Tripods

The Graviton tripods offer the possibility to be mobile even with very large and heavy mountings.

Our most stable wooden tripod, featuring large wood cross-sections and newly designed clamping elements, delivers a high load capacity and excellent stability with minimum vibration transmission. The ultra-flat design of the new tripod head with 105 mm leg joints guarantees maximum torsional stiffness. Load capacity with double cable clamps: 140 kg Delivery with Spread Stopper and Tray.

The tripod Planet small is the short version of our tripod Planet. Our most stable wooden tripod, featuring large wood cross-sections and newly designed clamping elements, delivers a high load capacity and excellent stability with minimum vibration transmission. The ultra-flat design of the new tripod head with 105 mm leg joints guarantees maximum torsional stiffness. Load capacity with double cable clamps: 150 kg Spread angle: 28° Delivery with Spread Stopper and Tray.

Mounting head with spring-mounted fastening screw - 1/4" standard, 3/8" and 5/8" optional. Adjustable leg spread possible at an angle of about 20°, 40°, 60°, 80° and 100°.. The recommended deposit tray (37 cm) is available as accessories. The practical tray for small items fits between the tripod legs to provide extra stability. In connection with the Adapter recommended for Vixen Porta and Meade ETX-Astrotelescops.

Magnesium mounting head which is suitable for the mountig GP by Vixen or with adapter for other mountings, such as Porta or as photo tripod with adapter # 11178. The spreading securing is effected by tray (27 cm). THE NEW MODULAR REPORT TRIPOD SYSTEM The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

Metal clamps are equipped with an eyelet to allow attachment of a steel chain (Accessories - click here.) as required. Mounting head with easy-to-read 360° scale and spring-mounted fastening screw - 1 / 4" standard, 3 / 8" and 5 / 8" optional. Adjustable leg spread possible at an angle of about 20° or about 45°, optional continuously leg spread up to an angle of 90°. The recommended deposit tray (37 cm) is available as accessories. The practical tray for small items fits between the tripod legs to provide extra stability. In connection with the Adapter recommended for Meade ETX-Astrotelescops. All metal clamps are equipped with an eyelet to allow attachment of a steel chain as required.

Magnesium mounting head which is suitable for the mountig GP by Vixen or with adapter for other mountings, such as Porta or as photo tripod with adapter # 11178. The spreading securing is effected by tray (37 cm). THE NEW MODULAR REPORT TRIPOD SYSTEM The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

Mounting head with spring-mounted fastening screw - 1/4" standard, 3/8" and 5/8" optional. Adjustable leg spread possible at an angle of about 20°, 40°, 60°, 80° and 100°.. The recommended deposit tray (37 cm) is available as accessories. The practical tray for small items fits between the tripod legs to provide extra stability. In connection with the Adapter recommended for Vixen Porta and Meade ETX-Astrotelescops.

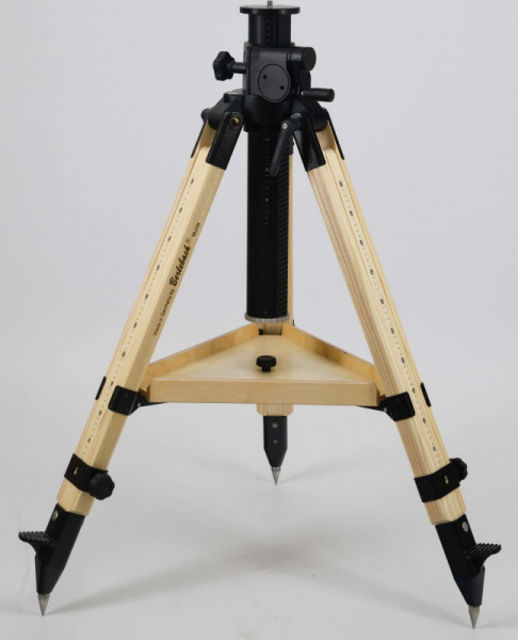

Tripod with cranked column and tray, especially for astronomy.

Magnesium mounting head which is suitable for the mountig GP by Vixen or with adapter for other mountings, such as Porta or as photo tripod with adapter # 11178. The spreading securing is effected by tray (37 cm). THE NEW MODULAR REPORT TRIPOD SYSTEM The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

Mounting head with spring-mounted fastening screw - 1/4". 3/8" or 5/8". Adjustable leg spread possible at an angle of about 20°, 40°, 60°, 80° and 100°. The recommended deposit tray (37 cm) is available as accessories. The practical tray for small items fits between the tripod legs to provide extra stability. In connection with the Adapter recommended for Vixen Porta and Meade ETX-Astrotelescops.

Magnesium mounting head which is suitable for the mountig GP by Vixen or with adapter for other mountings, such as Porta or as photo tripod with adapter # 11178. The spreading securing is effected by tray (37 cm). THE NEW MODULAR REPORT TRIPOD SYSTEM The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components. Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
