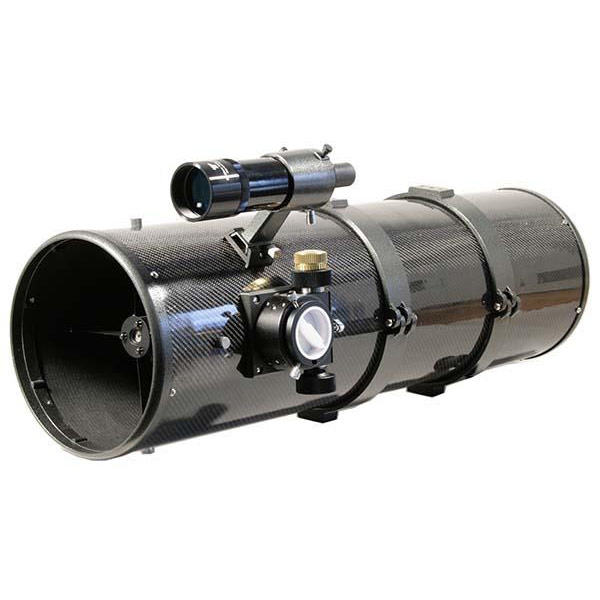

TS Carbonfibre Newtonian 200 mm f/4 with UNCN2-G2 Crayford Focuser
The UNC series from Teleskop Service are THE alternative to Newtonians from Far-East but also to high-end, high-cost instruments. All that doesn´t mean that You have to come to a compromise with the materials. UNC stands for Universal Newtonian Telescope with Carbonfibre tube.
- Lightweight but stiff carbon tube "Made in Germany"
- Better field illumination by optimized focus position
- Modified primary mirror holder
- UNCN2-G2 2" Crayford focuser with dual speed
- Modified secondary mirror with optimized offset position
Each Carbonfibre tube is a unique piece and handmade. These are customized products and not a chinese mass product. Little issues on the surface are a proof of the handproduction process. Of course these issues do not affect the telescopes optical performance!
Delivery contents
- TS UNC Carbon Newtonian Telescope with 2" UNCN2-G2 Focuser
- Tube rings made of aluminium with two flat bases
- Vixen Level finderscope holder
- 8x50 finderscope with holder
- Reduction from 2" to 1 1/4" with 2" filterthread
Products specifications
| Type of telescope | Newton |
| Aperture | 200 mm |
| Focal ratio | f/4 |
| Resolution | 0.58 arc sec. |
| Limit value | 13.3 mag |
| Max. useful visual power | 400 x |
| Connection to eyepiece | 2" / with adapter 1 1/4" |
| Eyepiece adapter | To 1 1/4" |
| Color | Black - carbonfibre |
| Tube material | Carbonfibre |
| Mirror material | BK7 |
| Viewfinder | 8 x 50 Viewfinder with bracket |
| Focal length | 800 mm |
| Included accessories | Tuberings, Dovetail, Viewfinder, Adapter 2" to 1 1/4" |
| Backfocus | 60 mm |
| Secondary diameter | 75 mm |
| Obstruction | 37.5 % |
| Illuminated field | ca. 25.8 mm |
| Tube weight | ca. 15.9 lb |
