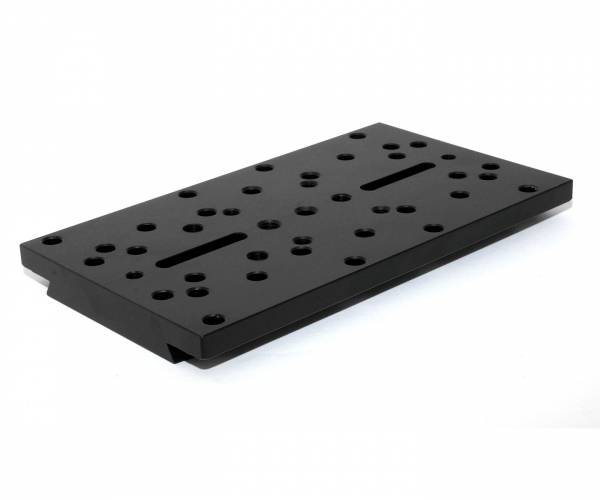

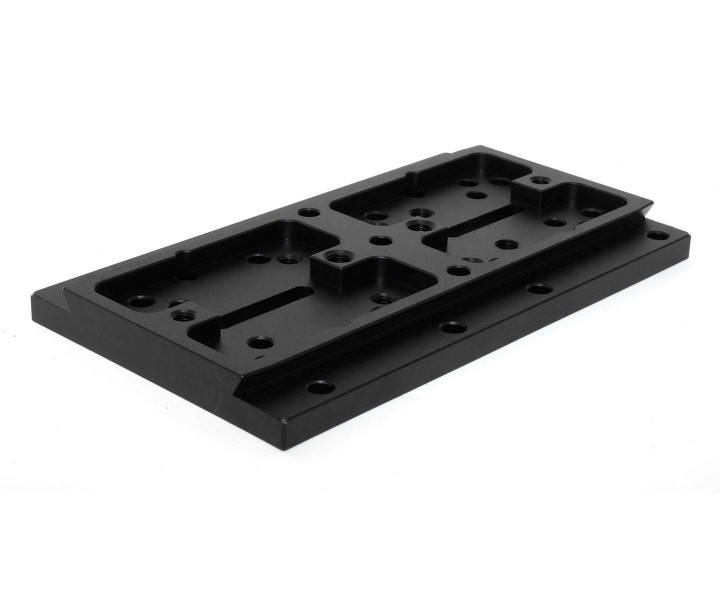

TS Optics Losmandy Level Dovetail Bar - short

Allows to attach your telescope, spotting scope etc. quickly and solidly to mounts with Losmandy interface.

Main characteristics

• Length 180 mm - suitable for short tubes
• Very stiff but low weight
• A wide range of bores and threads allows a variety of adaptations

Attachments

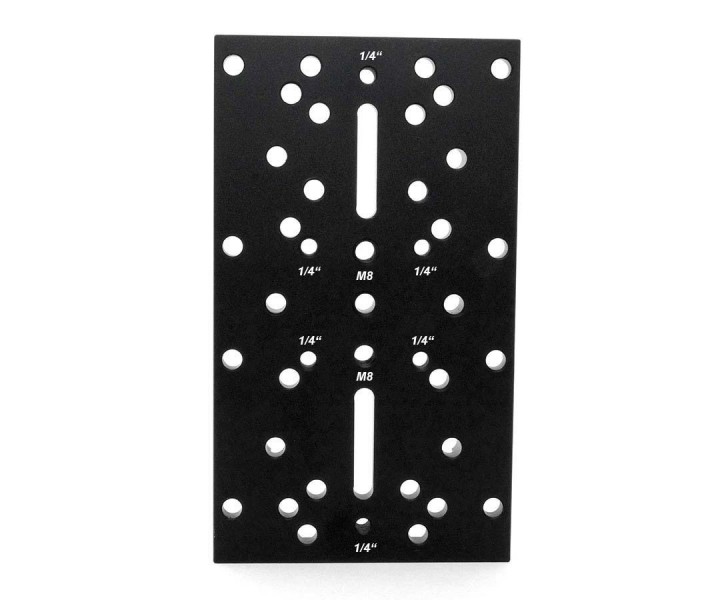

• Counter sunk holes for 1/4" and M6 screws: Distance 32 mm, 38 mm, 51 mm, 50 mm, 60 mm, 89 mm across the long center axis
• 2 slotted holes with 38 mm length each for 1/4" screws and M6 screws
• 4x M8 thread (female) centered
• 2x 1/4" thread (female) at front and rear end and 2x 1/4" thread bore each, 38 mm distance (across the long center axis)

Delivery contents

• Dovetail bar
