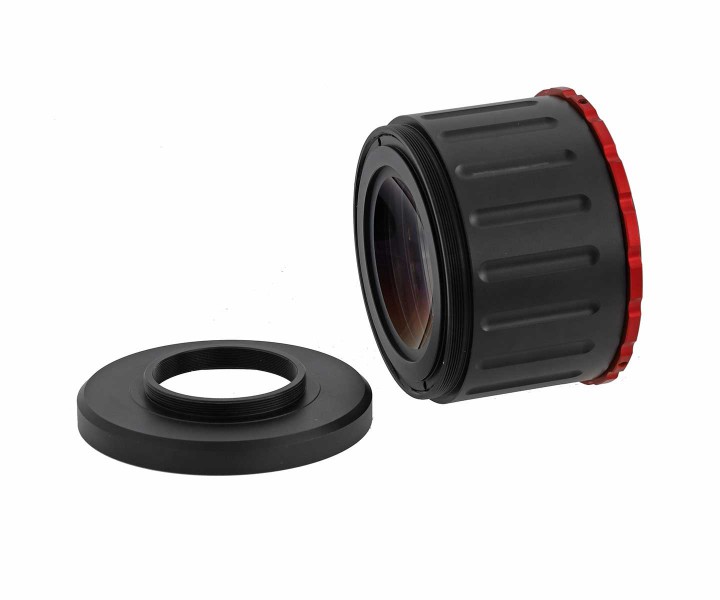

TS-Optics 0.75x REFRACTOR Reducer Corrector for TS 106 mm f/6.6 Apo The corrector is screwed to the focuser via the M63x1 thread. Teleskop-Service has put a lot of emphasis on a very good solution for this corrector.
- 0.75x shortening factor - focal length is reduced from 700 mm to 525 mm, focal ratio is improved to fast f/4.95;
- 55 mm to 60 mm working distance - finely adjustable with 0.05 mm accuracy - from the M48x0.75 thread;
- 64.8 mm to 69.8 mm working distance from M82.5x0.75 male thread - special adapters can be manufactured by TS.
- Adapter from M82.5x0.75 to M48x0.75 with 9.8 mm overall length included for individual adaptations;
- 3-element design with ED special glass;
- Multi-coating and field stops avoid reflections and improve contrast
Scope of Delivery:
Products specifications
| Connection to telescope | M63 Gewinde |
| Reduction: | 3-Element 0,75x Korrektor |
| Working distance from the camera thread | 55-60 mm, fein justierbar |
