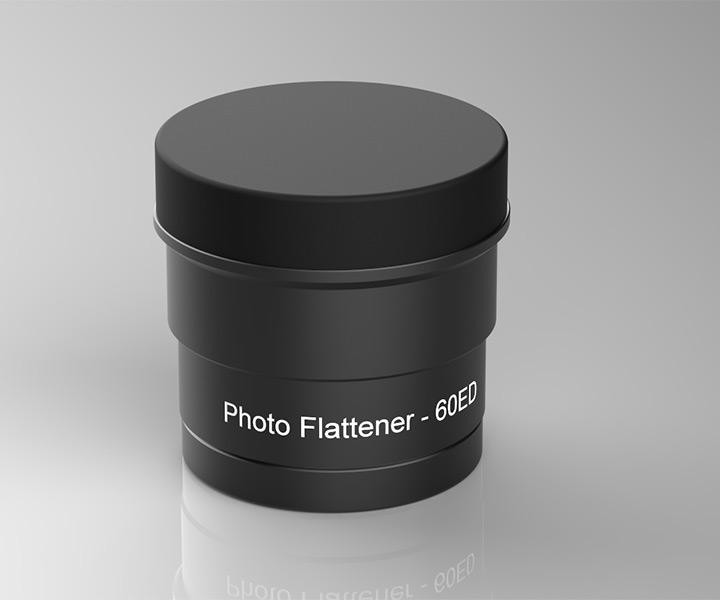

TS-Optics 1.0x Flattener für TSMPT60 und 60mm f/6 2-Element Apos und ED Refraktoren

TS-Optics 1.0x Flattener für TSMPT60 und 60mm f/6 2-Element Apos und ED Refraktoren

The 1.0x image field corrector is designed for refractor telescopes with 60mm aperture and 360mm focal length and flattens the image field for astrophotography.

  • Designed for the TSMPT60 60mm f/6 ED refractor for optimal results.
  • Can be used on all 60mm f/6 refractors
  • Connection telescope side M54x0.75 male thread
  • Connection camera side M48x0.75 male thread
  • Working distance from camera thread to sensor is 55 mm - optimal for DSLR system and astro cameras
Manufacturer : TS Optics
SKU : TSO-TSMPT60-Flat
Price: 137.82 € excl tax
Delivery date : 1-4 days
Product description

TS 1.0x Flattener and Corrector for 60mm f/6 ED and Apo Refractors

The corrector levels the field of view, allowing photography through the compact and fast telescopes with good sharpness performance over the entire field. The corrector can be used without restrictions up to and beyond the APS-C format. Even cameras with full format can be used, a FLAT compensates for possible edge shading.

The use on the TSMPT60 ED refractor

The corrector has been developed for this multifunction telescope. It performs very well with this 2-element objective and converts the telescope into a full APO tele with 360 mm focal length and the focal ratio of f/6. The connection is simple.

  • The internal extension of the refractor is extended and screwed in place.
  • The 1.25" "Non-Rotating-Helical" is unscrewed.
  • The TSMPT60-Flat corrector is screwed onto the M54x0.75 thread.
  • The working distance is now 55 mm from the M48 thread of the corrector.
  • Focusing is done by turning the objective - the counter ring is used to fix the focus position.



Scope of Delivery:

  • Flattener



Products specifications
Connection to cameraM48x0.75 external thread
Working distance from the camera thread55 mm from male M48 thread
Connection to telescopeM48x0.75 male
