TS Optics 1,25" Ultra Wide Angle eypiece UWAN 16mm 82°

TS Optics 1,25" Ultra Wide Angle eypiece UWAN 16mm 82°

The ultimate high power eyepiece for ultra wide field views!
Manufacturer : TS Optics
SKU : TSO-UWAN16
Price: 159.00 € incl tax 19% (Germany)
Delivery date : 1-4 days
Product description

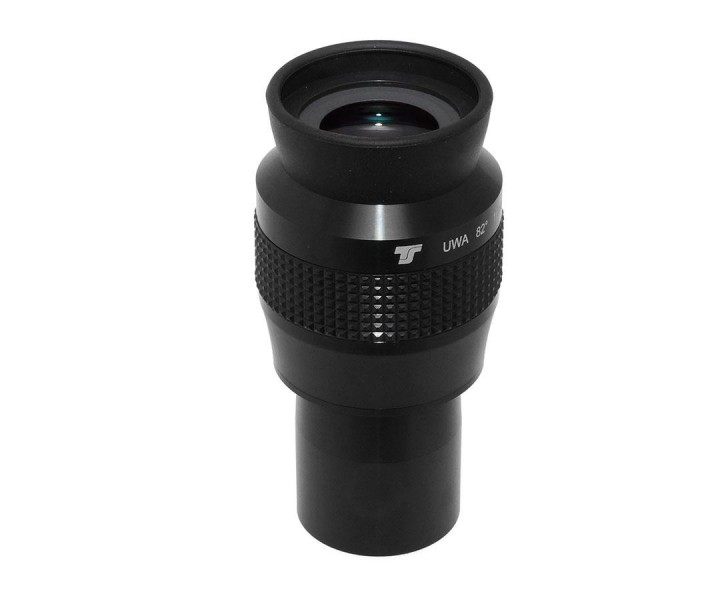

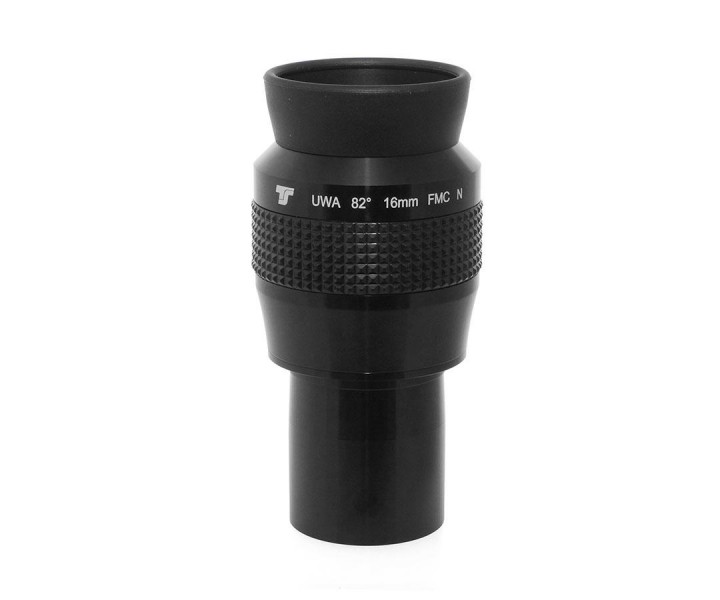

TS Optics UWAN 16 mm 82° Ultra Wide Angle Eyepiece

The UWAN eyepieces from Teleskop Service offer an extreme field of view of 82°. They are the latest generation of his class of eyepieces. We have set particularly great store on a better view, more contrast and suitability for binoviewers. The UWAN 16 mm from TS Optics sets standards for large field eyepieces.

The UWAN 16mm is an eyepiece with medium magnification at maximum field of view. It is a planetary eyepiece for telescopes with higher focal length and an exciting deep-sky eyepiece at the same time. The UWAN 16 supplies maximum field of view possible with 1.25" barrel size. It is an excellent eyepiece especially for observations near towns where eyepieces with higher focal length show the sky already too bright. The UWAN 16mm combines a higher magnification, suppression of the light pollution AND a large field of view. Image brightness and contrast are guaranteed by multi-coating and clean inner blackening.

Features and advantages of the TS UWAN 16mm:
  • Large, easily accessible field of view of 82°
  • Fully suitable for binoviewers thanks to tapered construction at the eyepiece side
  • Soft rubber eyecup - easily foldable for spectacle wearers
  • Special glasses and high-quality multi-coating ensure a bright image with high contrast.
  • The 1.25" barrel is tapered at the upper part, thus safe locking without tilting is ensured
  • The TS UWAN is very long-lasting. Water and even moisture cannot penetrate into the interior of the eyepiece, the good optical performance is preserved even after years

Delivery contents

  • TS UWAN 16mm
  • Dust caps at both ends
  • Cleaning cloth
  • Stable cardboard storage box with foam inlay
Products specifications
Eye relief12 mm
CoatingMulticoated
Barrel size / Filter thread1 1/4" with filterthread
Focal length16 mm
Field of view82°
Lenses / groups7 / 4
Diametermax. 45mm
SpecialWaterproof and nitrogen-filled
Height91mm
Weight169g
