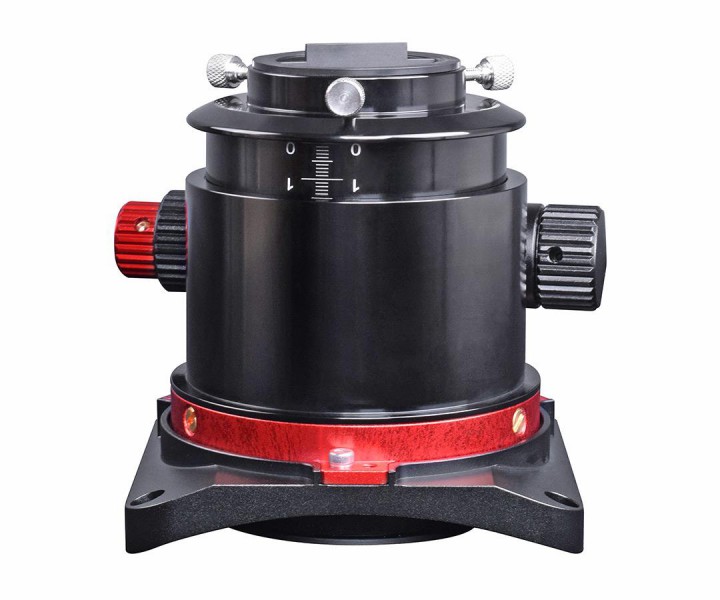

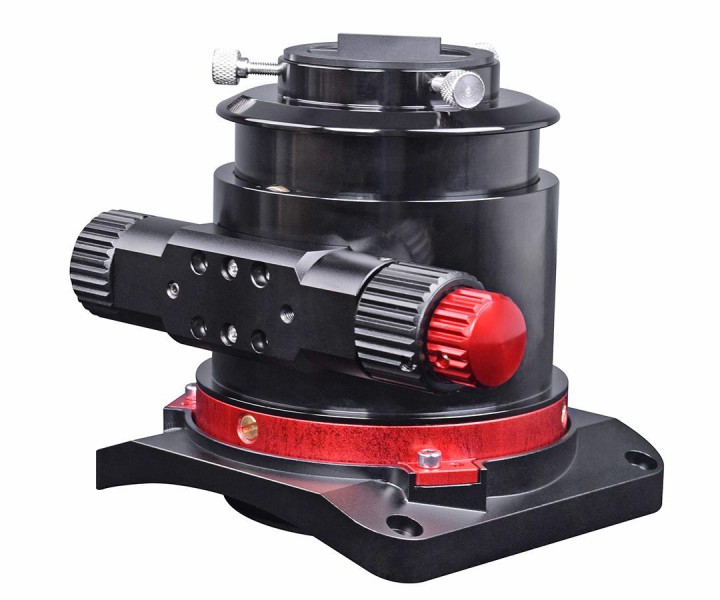

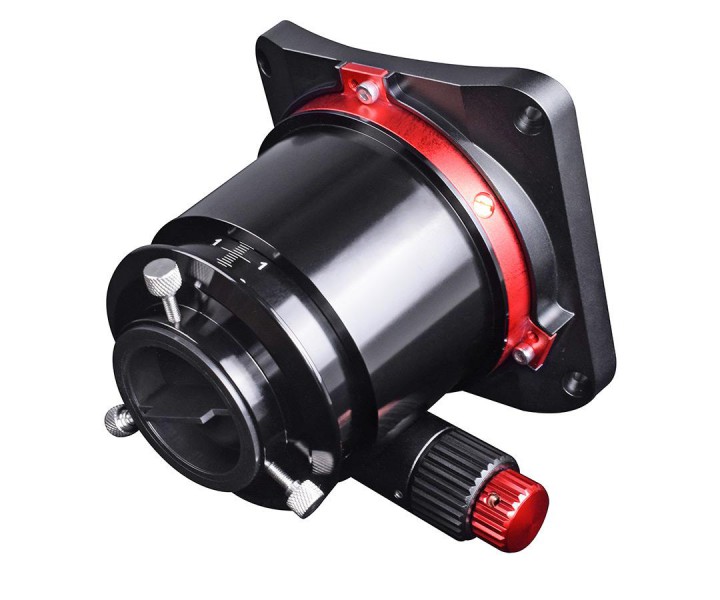

The focuser is intended for self-building or improving existing Newtonian telescopes. Astrophotography is the main focus of this focuser. Large correctors can be screwed on directly via the M82x1 auxiliary thread.
Besides the 360° rotation, a special feature is the built-in tilting. This allows a precise tilting of the focuser in order to perfectly adapt the image field to the camera sensor. Especially large sensors with high resolution can thus deliver their full performance.
Products specifications
| Focuser type | 3" Rack and Pinion Focuser |
| Reduction | 1 : 10 Micro Focusing |
| Plug connection | 2 Inch |
| Suitable for | Newtonian telescopes with 230-250mm tube diameter. |
| Connection to camera | M82x1 female and 2" |
| Draw Tube Travel | 39mm |
