TS-Optics 60 mm f/6 ED Refractor - Finder and Guide Scope - extendable for astrophotography

TS-Optics 60 mm f/6 ED Refractor - Finder and Guide Scope - extendable for astrophotography

A versatile ED refractor telescope for observation and photography - usable as APO spotting scope, guiding scope and super finder scope.

  • aperture 60 mm / focal length 360 mm / focal ratio f/6
  • 2-element APO objective with Nissan Super ED glass as APO element
  • Usable as angled finder with optional 1.25" star diagonal or Amici prisms with 1.25" helical focuser (non rotating)
  • 360° rotation on the eyepiece and camera side
  • Can be used as a straight view finder with 1.25" helical focuser - the extension is integrated and screwed into the tube
  • 1.25" "non-rotating" helical focuser - screw-on - with locking screw
  • With the optional TSMPT60-Flat 1.0x corrector, the ED refractor becomes a full 360 mm f/6 telephoto lens for photography and astrophotography with objective focusing
  • Includes adjustable clamps and dovetail bar for finder holder with 1/4" female thread for photo tripods
Manufacturer : TS Optics
SKU : TSO-TSMPT60
Price: 318.49 € excl tax
Delivery date : 1-4 days
Product description

TS 60 mm f/6 MPT ED Refractor
This compact ED refractor is one of the most versatile telescopes we know. The refractor offers versatile expansion possibilities up to a compact APO telephoto lens with integrated 1.0x corrector. The basis is the 60 mm ED objective with 360 mm focal length. The multi-coated lens offers a sharp and high-contrast image. The ED element corrects chromatic aberrations very well. However, the versatile use is due to the sophisticated mechanics.

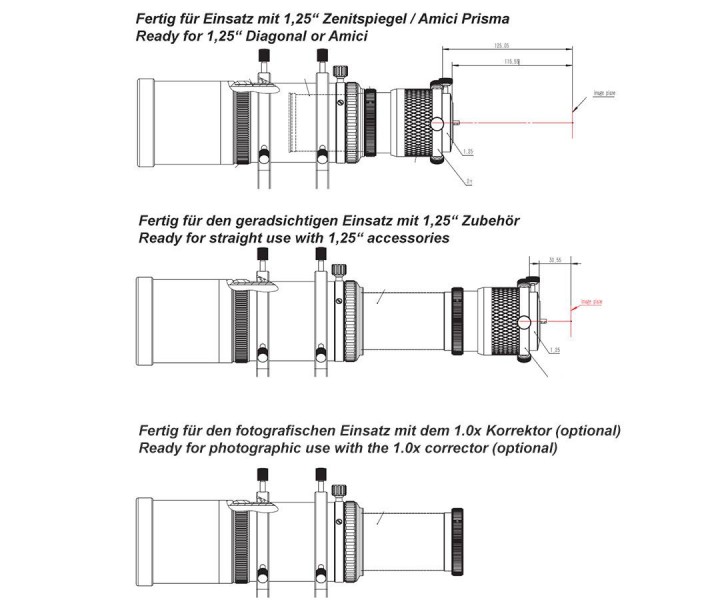

The mechanics of the TSMPT60 allow versatile use

  • Use as angle finder with 1.25" star diagonal or Amici prism:
    The internal extension is screwed in. The 1.25" helical focuser is connected. Focusing with all commercially available 1.25" eyepieces is no problem in conjunction with a 1.25" star diagonal.
  • Use as a straight-view finder or guiding telescope:
    The internal extension is extended. The 1.25" helical focuser is connected. The connection of autoguiding cameras via 1.25" adapter and of eyepieces is possible.
  • Use as 360 mm f/6 APO telephoto lens for photography and astrophotography:
    The internal extension is extended. The 1.25" helical focuser is unscrewed. The optional 1.0x corrector is screwed on instead. (See accessories section). The working distance from the M48 thread on the corrector is 55 mm. Focusing is achieved by twisting the mount of the ED objective. This focusing is extremely accurate, the focus can be set to within 0.005 mm for perfect imaging on axis and in the field.



Scope of Delivery:

  • TS 60 mm MPT ED Apo
  • 1.25" non-rotating helical focuser
  • Adjustable tube rings
  • Dovetail bar with photo tripod connection - fits standard finder shoes
  • Dust caps
Products specifications
Focal ratiof/6
LensDoublet ED-Apo
Connection to eyepiece1.25"
Aperture60 mm
Focuser1 1/4"
Focal length360mm
Type of telescopeAPO ED Refr.
Backfokus72 mm and 30 mm (depending on the position of the extension)
