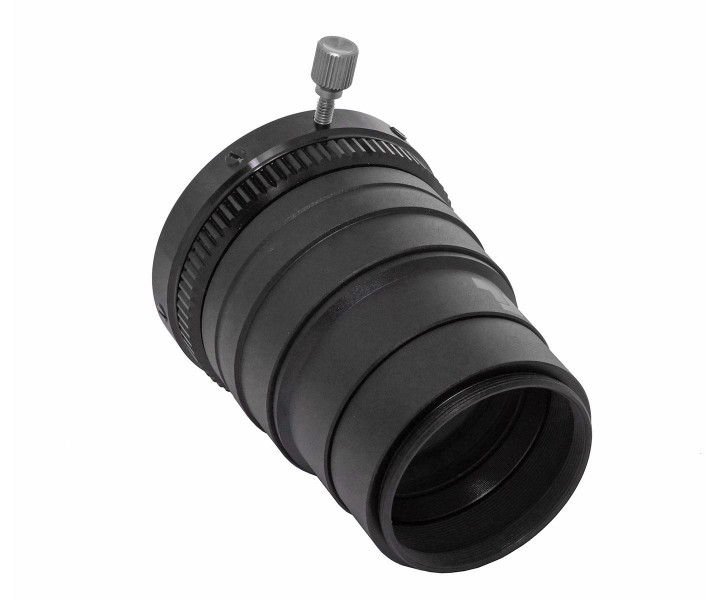

TS-Optics Flattener / Field Corrector for PhotoLine apochromats with 60 mm aperture The corrector is especially designed for the compact PhotoLine apochromats with 60 mm aperture from Teleskop-Service and provides optimal results with these telescopes. Even the use of cameras with full frame size sensors is possible. The corrector is especially suited for:
- TS-Optics PhotoLine 60 mm f/5.5 Apo
- TS-Optics PhotoLine 60 mm f/6 Apo
Advantages - Connection at the telescope side via the male M54x0.75 thread. The corrector fits directly into the female thread of the focusers. No push fit and therefore no tilting.
- Inkluding 360° rotation system with M54 connection at both ends for perfect positioning of the camera to the object. The flattener can also be screwed directly to the focuser, without the rotation system.
- The corrector is designed especially for the compact and fast travel apochromats and provides optimal results with these telescopes.
- M48x0.75 photo thread at the camera side provides 15% better illumination than T2 and also allows using full frame size sensors.
- Working distance of 55 mm from the M48 thread. With a suitable T-adapter you can automatically reach the optimal distance when using a DSLR camera. If you remove the extension tube, you increase the working distance to 70 mm for adapting any astro camera.
- The corrector is fully multi-coated. Additionally, absolute absence of reflections is achieved through a matte-black internal anti-reflex coating. The image thus offers a very high contrast which is also helpful at daylight photography (landscape, birds, etc.).
Delivery contents Products specifications
| Fully corrected field | 42 mm |
| Magnification | 1.0 x |
| Coating | multi coating |
| Working distance from the camera thread | 55 mm from male M48 thread |
| Fully illuminated field | 42 mm |
| Connection to telescope | M54x0,75 male thread |
| Connection to camera | M48x0,75 male thread, length 4 mm |
| Lenght | 66 mm |
| Accessory | 360° rotation, length 19.5 mm |
| Made for | PhotoLine Apos with 60 mm aperture |
