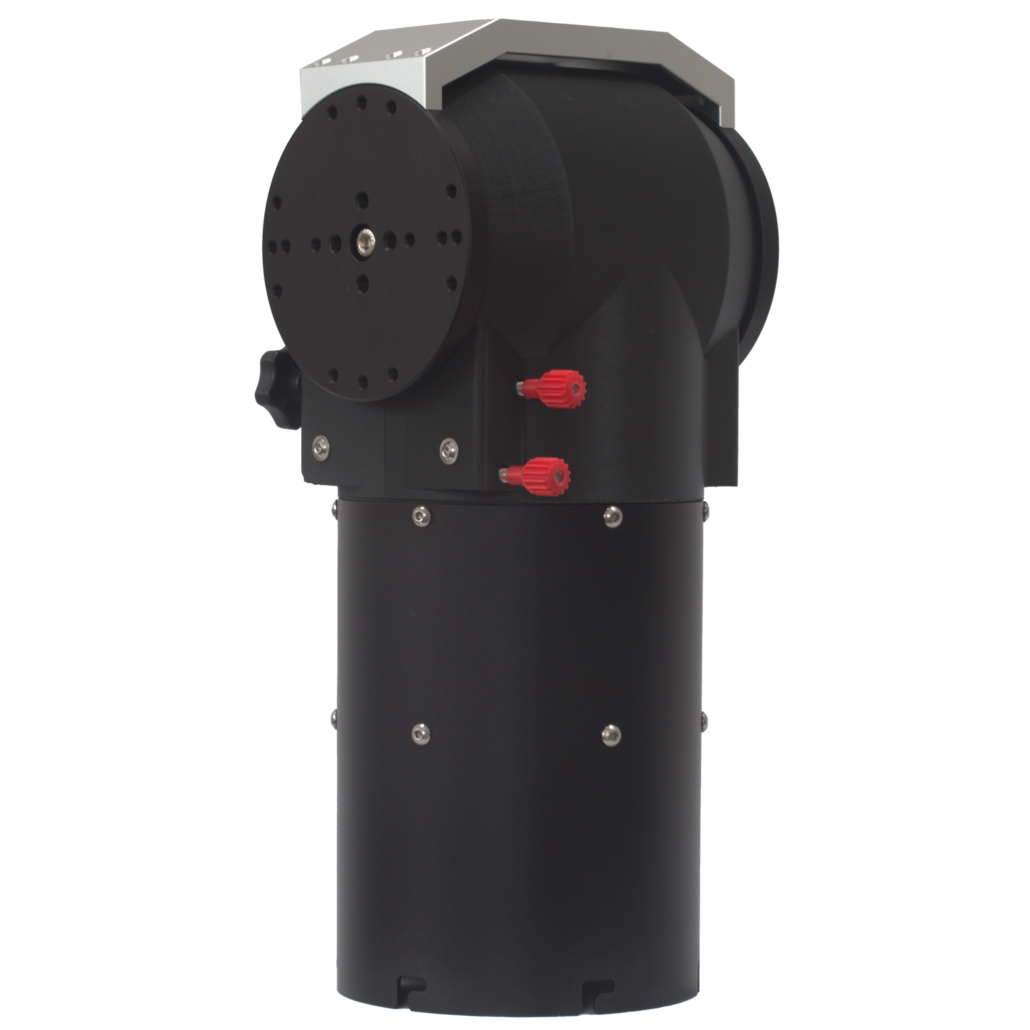

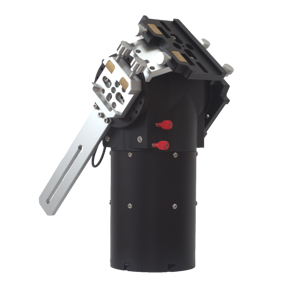

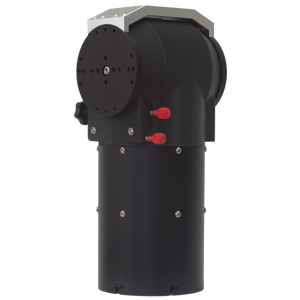

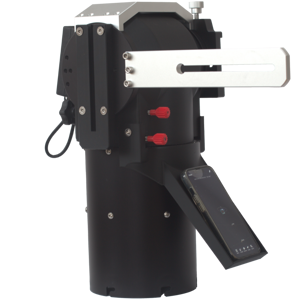

Weighing just 7 kg, the TTS-160 Panther Lite is crafted from anodized aluminium, stainless steel, and a durable plastic cover—delivering both portability and durability. Despite its lightweight, it boasts an impressive capacity: up to 28 kg side-mounted or 25 kg top-mounted telescopes.

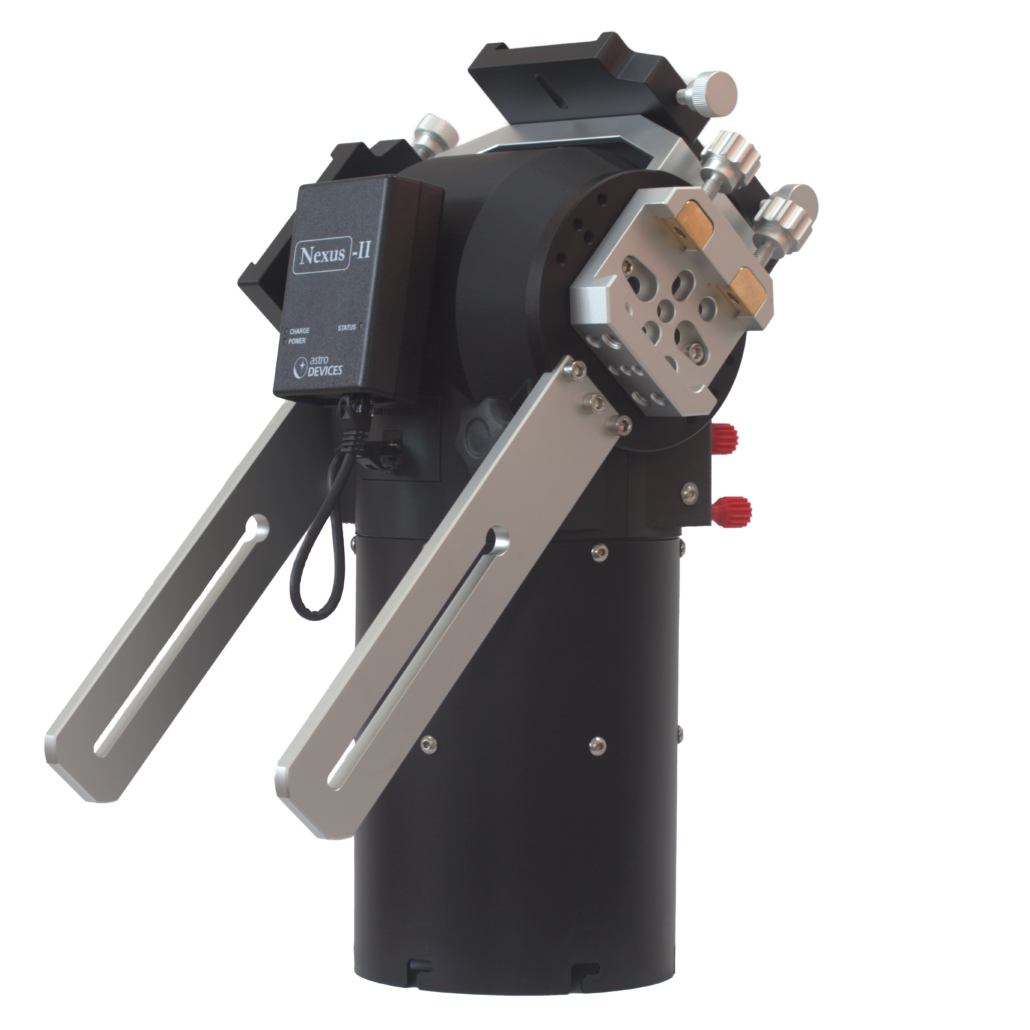

The Panther Lite is equipped with optical encoders offering 79,888 pulses per revolution (16 arcseconds per pulse), easily connectable via an RJ45 connector for seamless integration with Nexus DSC units. Smooth and precise control is assured with adjustable slide clutches on both axes and an altitude axle lock for secure setup and configuration changes.

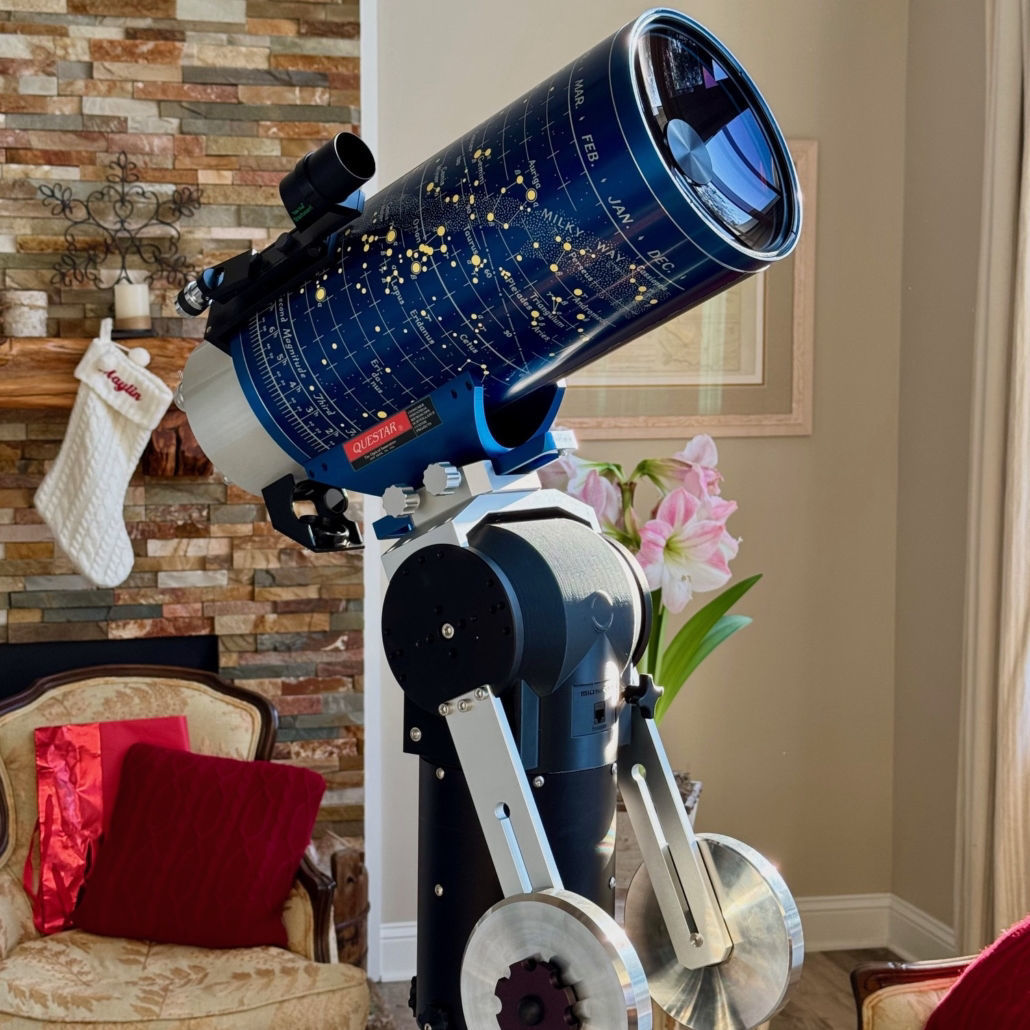

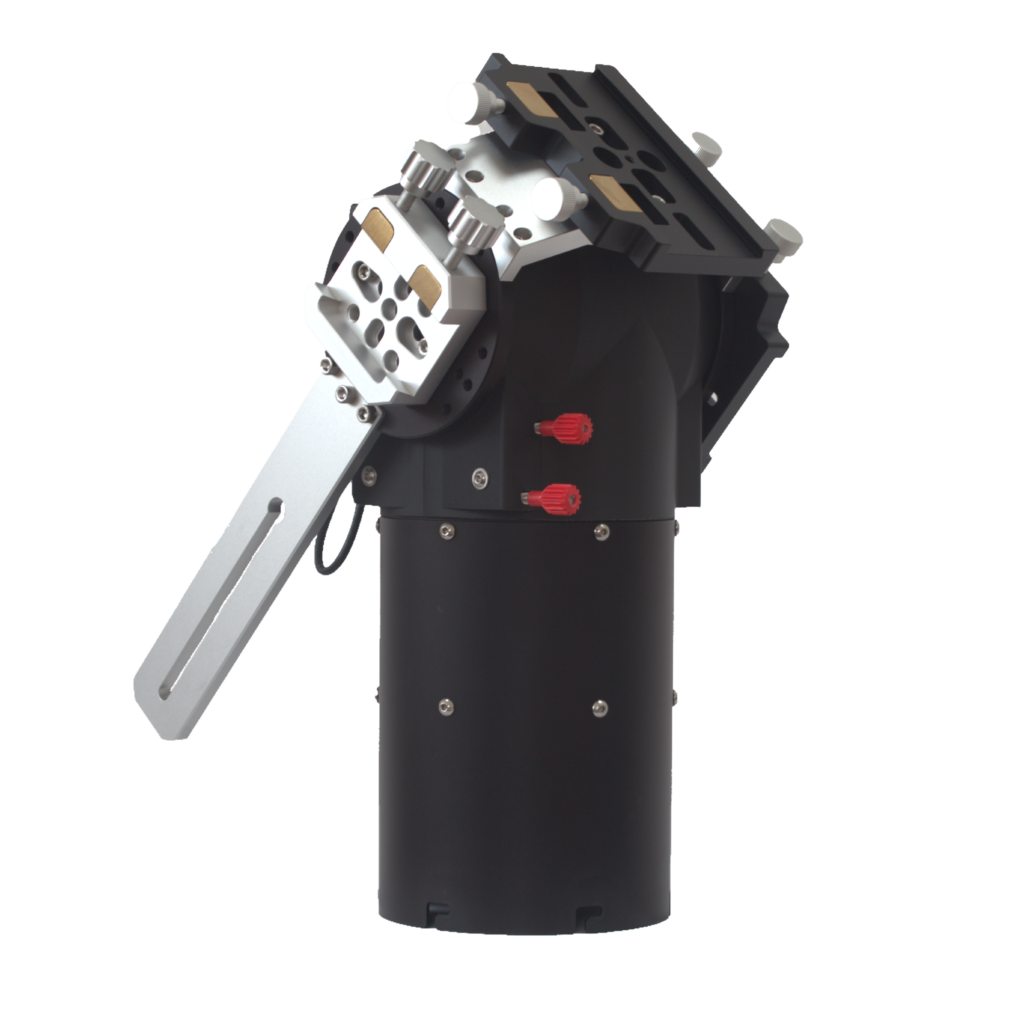

Designed for flexibility, the mount accommodates dovetail saddles with M8 and M6 thread patterns for easy installation. For additional balance, two counterweight arms can be configured for top-mounted setups or eyepiece comfort balancing during side-mounted use.
With options for tripod and pier adapters and mounting holes for accessory trays, the Panther Lite delivers unparalleled versatility and precision for serious visual astronomers.
Read more about the TTS-160 Panther Lite and its features here: The TT S-160 Panther Lite Telescope Mount Article
VERSATILE MOUNTING

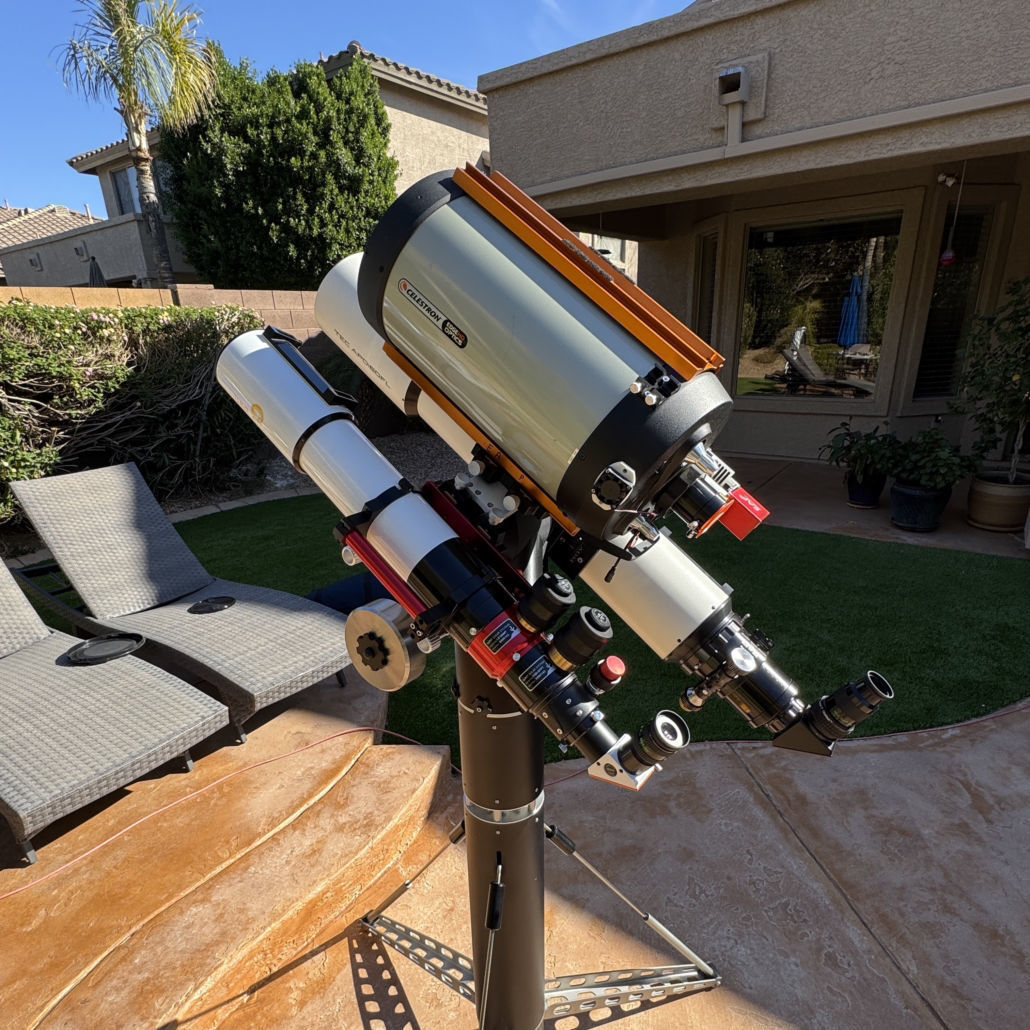

It can accommodate up to three telescopes simultaneously, offering unparalleled flexibility.

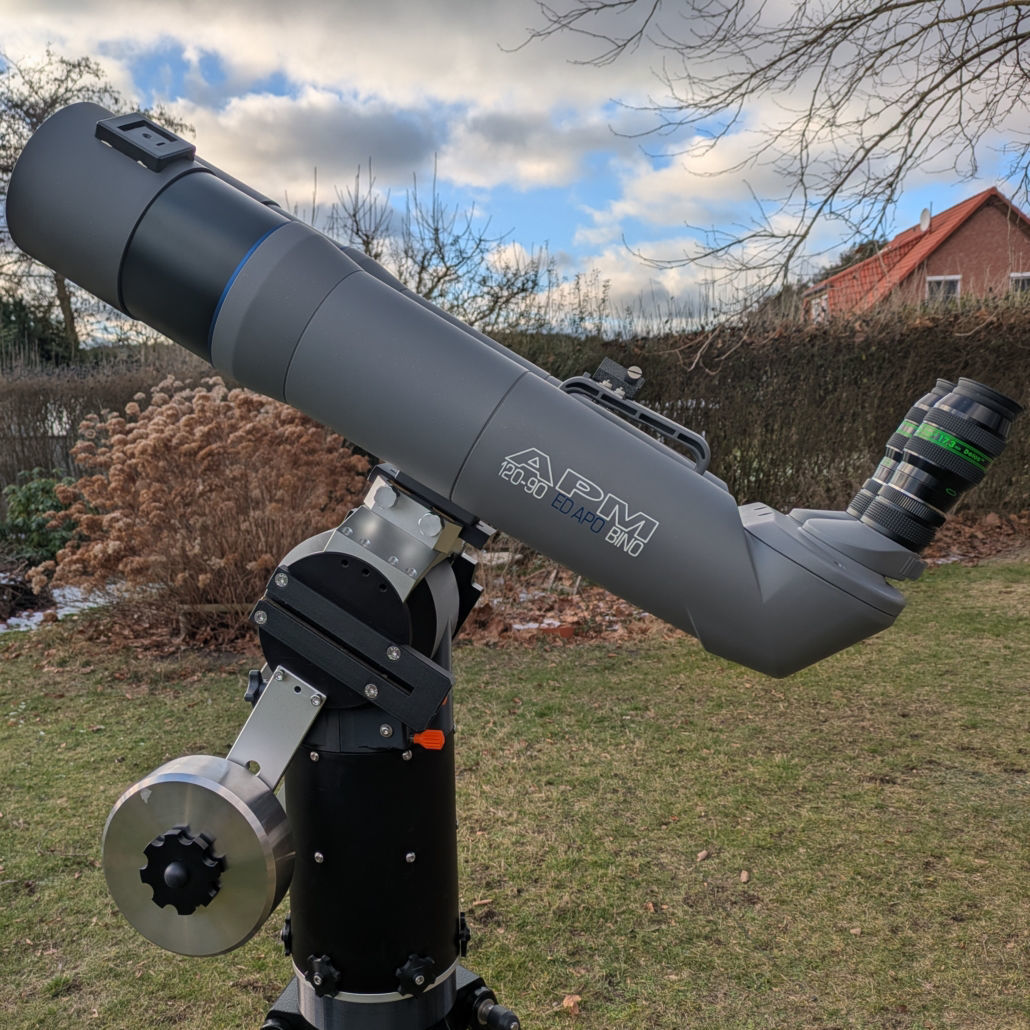

COMFORT BALANCING
An innovative back-balancing system ensuring consistent and comfortable eyepiece height for extended viewing sessions.
SMOOTH MANUAL OPERATION
Adjustable slide clutches and a two-axis balancing system provide precise, effortless pointing.
NO ELECTRONIC HASSLE
Designed for simplicity, the Panther Lite eliminates the need for screens, cables, or power, allowing for pure, uninterrupted stargazing.
LIGHTWEIGHT & COMPACT
Weighing only 7 kg (15.4 lbs), the Panther Lite is perfect for astronomers who need a travel-friendly solution or an easy and fast setup in the backyard without sacrificing performance.
ENCODERS
The built-in encoders provide a seamless way to boost your observing experience.
| Materials | Aluminum - Anodized black and silver, Stainless steel, Plastic cover. |
| Telescope Capacity | Side mounted: 1x28kg or 2x20kg, Topmounted: 1x25kg (note that
large diameter and long OTA's puts higher pressure on the mount) |
| Dovetail saddle bolt pattern | M8 thread in diamond shape 35mm between holes.
M6 Thread in linear pattern distance 60mm and 100mm
(see drawing under "User manuals") |
| Encoders | Optical encoders are installed on both axis. They have 79888
Encoder pulses per revolution. This is equivalent to 16 arcsec
per pulse. |
| Encoder connector | The RJ45 connector has a wiring matching the Nexus DSC units from
Astro Devises. A standard Ethernet cable can be used for the connection. |
| Tripod, Pier Interface | The mount head attaches to the adapter with 6 pcs M5 finger screws.
Adapters for the TTS 160 Panther folding pier is available as well a an
adapter for 3/8" 16tpi attachment |

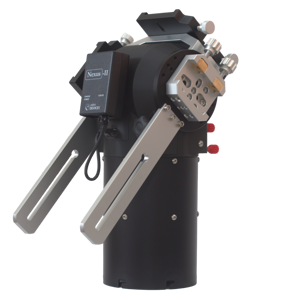

| Counterweight arms | The mount head comes with two counterweight arms in Natural
Anodized Aluminium. These can be installed for top mounted
telescopes or installed for Eyepiece comfort balancing of side
mounted telescopes. |
| Axle clutches | Both axles are equipped with an adjustable slide clutch. These can
be fine tuned to achieve perfect smooth movement eliminating the
need for fine adjustment handles. |
| Altitude axle lock | The altitude axle is equipped with a locking device securing the
telescope when setting up and when changing heavy eyepiece
configurations. |

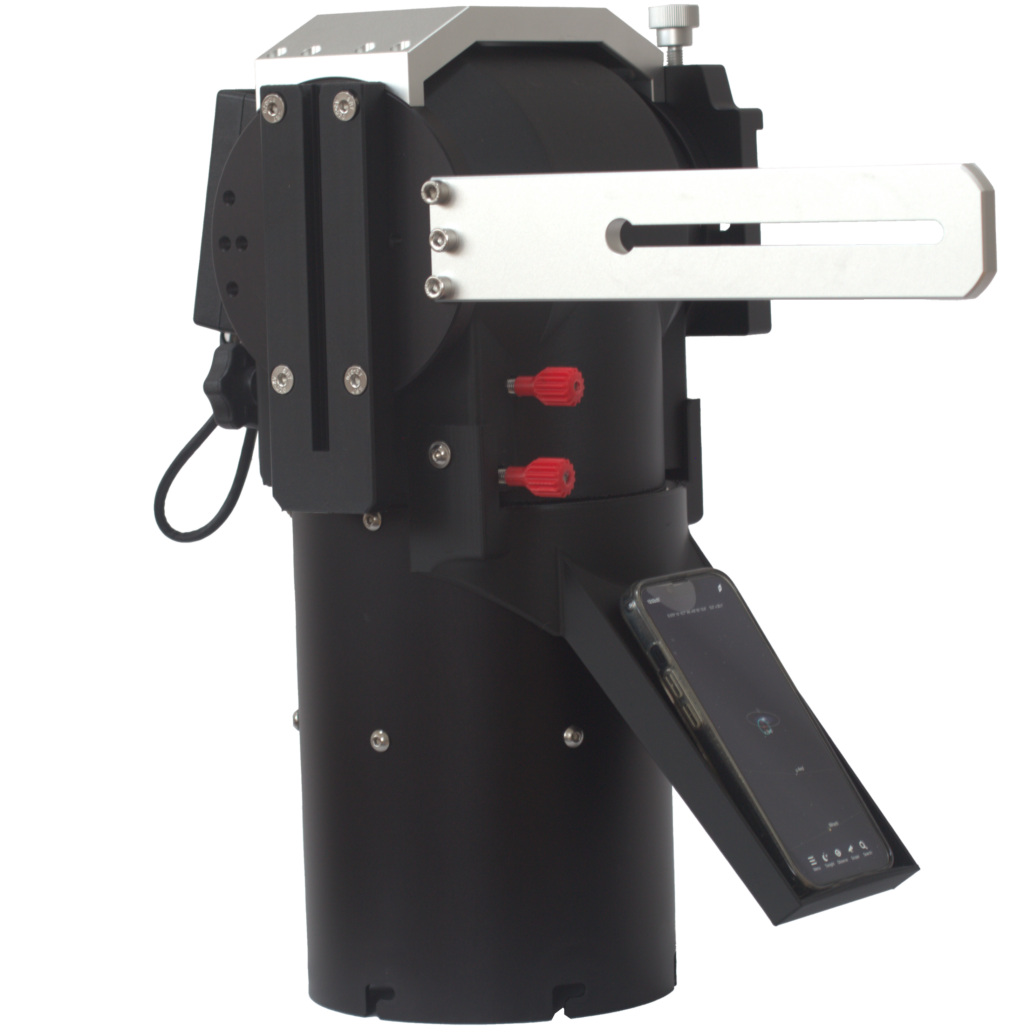

| Accessory tray | Mounting holes for optional trays for Phones or Eyepieces, etc. |
