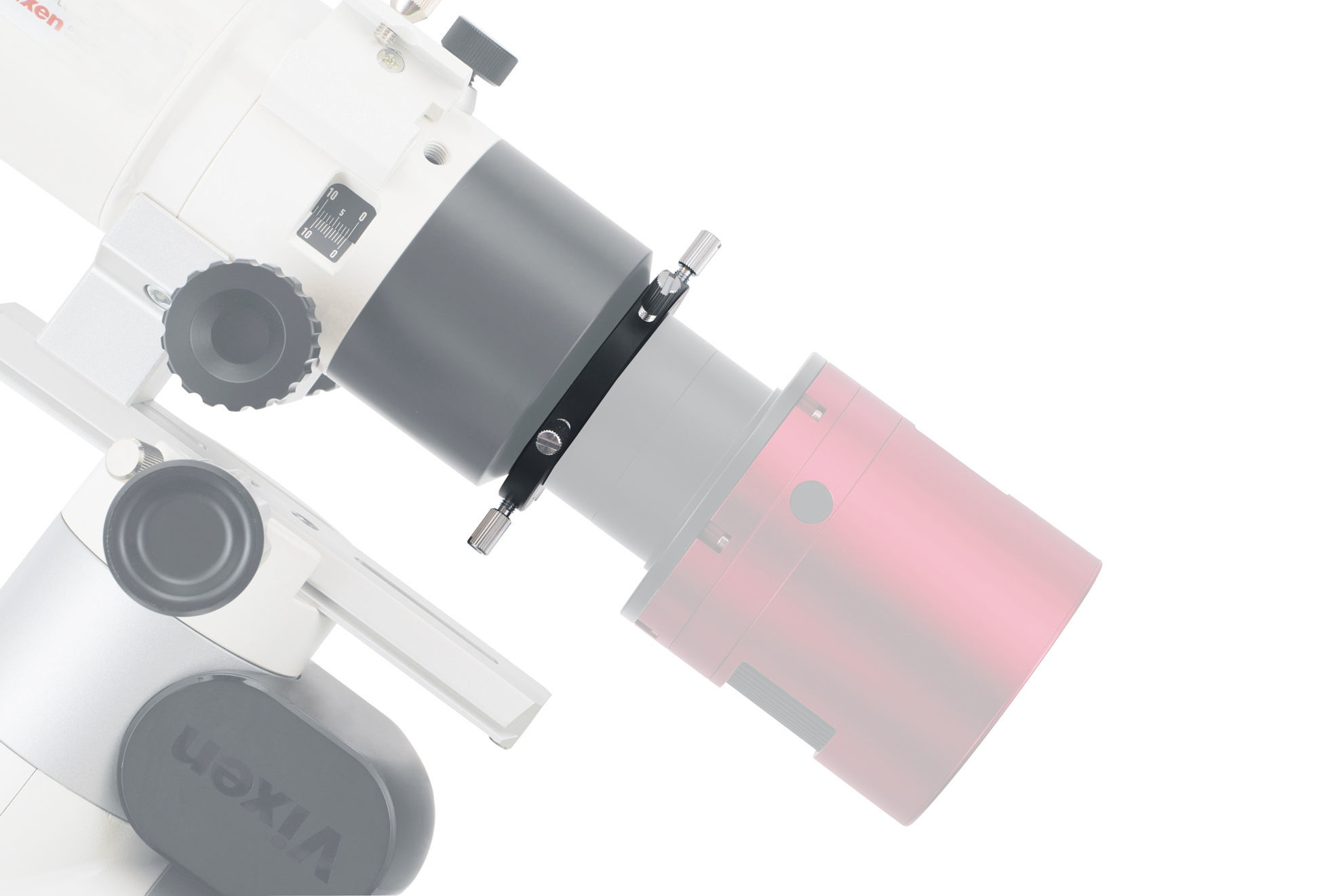

The Vixen 60 mm to M48 camera adapter is used to mount an astronomical CMOS camera to Vixen telescopes with a 60 mm focuser.
The adapter is suitable for cameras or accessories with an M48 × 0.75 internal thread. You can directly connect third-party CMOS cameras and other products with an M48 thread.
(Depending on the CMOS camera, an extension tube (optional) may be required.)
The adapter can be freely rotated by loosening the clamping screws to orient the image as desired.
Using the optional M56 Filter Conversion Adapter 48/52, you can attach 48 mm / 52 mm third-party photographic filters.
Note:
When using the M56 Filter Conversion Adapter 48/52, the PH corrector, PH extender, Coma Corrector 3 and SDP Reducer cannot be used.
FEATURES

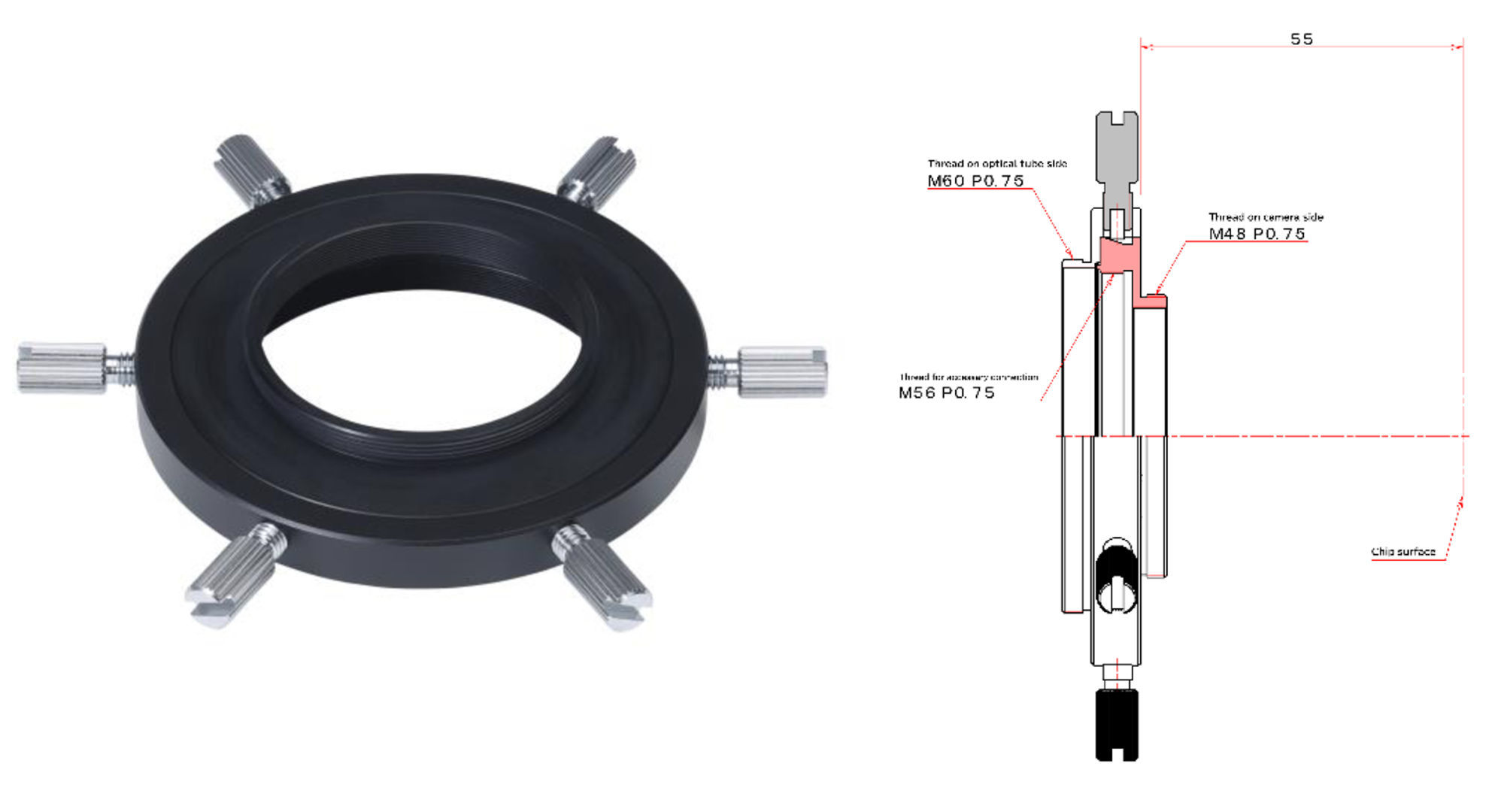

- Camera adapter: 60 mm to M48
- Telescope side connection: 60 mm, P = 0.75 mm
- Accessory side (internal): M56 × 0.75 (female)
- Camera side (internal): M48 × 0.75 (female)
- Adapter: rotatable
SCOPE OF DELIVERY
- 60 mm to M48 camera adapter
Products specifications
| Technical Data | | Colour: | black |
|---|
| Material: | Aluminium |
|---|
| Type of connection thread: | 60 mm |
|---|
| Casing material: | Aluminium |
|---|
|
