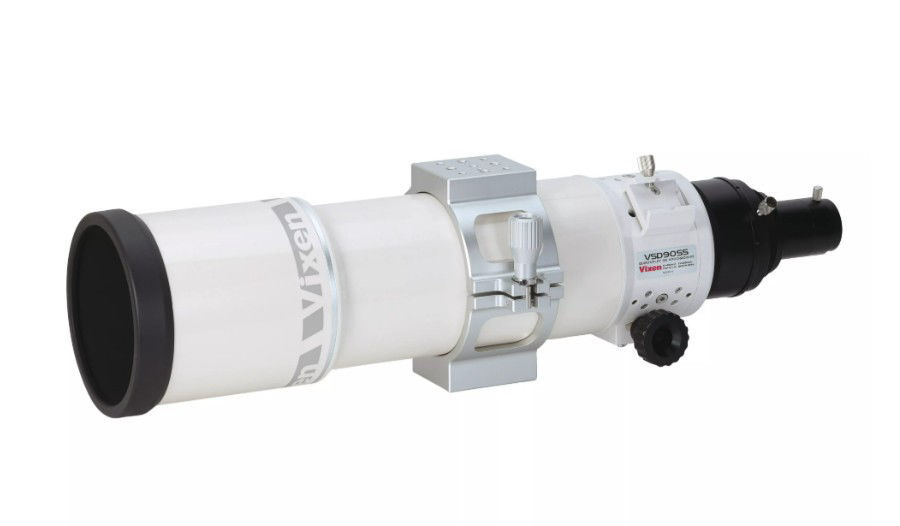

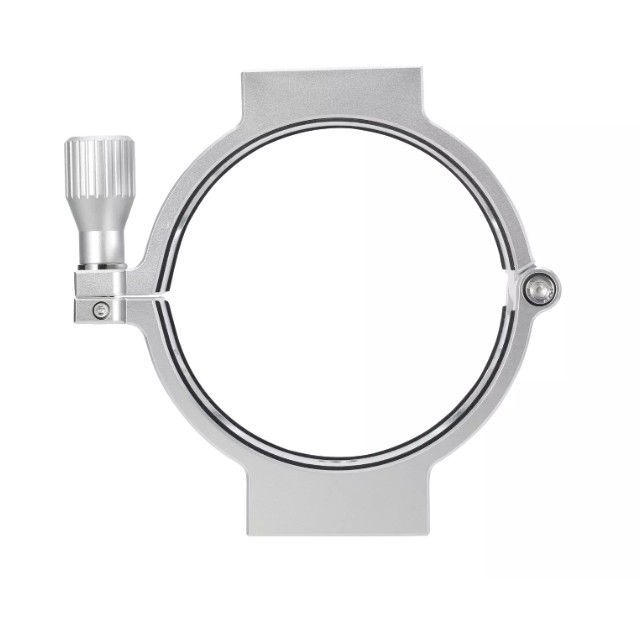

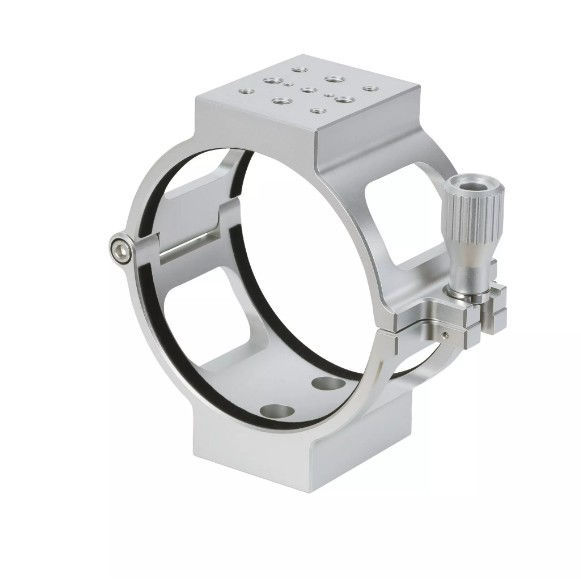

This high-quality tube clamp made in Japan is used to mount the VSD90ss f 5.5 astrograph. The base plate has M6 and M8 holes and can therefore be used on almost all mounts.

FEATURES

• Supplied with various holes as standard
• High-quality CNC-milled aluminium tube clamp with non-slip locking screw
• Felt on the inside, prevents scratches on the VSD tube
• Threaded screw holes bottom: M8 holes x 2 (spacing 35 mm), M6 holes x 2 (spacing 35 mm) x 2 rows, 1/4-inch holes x 3 (inside 30 mm), 1/4-inch holes x 3 (interval 30 mm)
• Threaded screw holes top: M8 holes x 2 (spacing 35 mm) x 2 sets, M6 holes x 2 (spacing 35 mm) x 2 rows, 1/4-inch hole x 1 in the centre, M4 holes x 2 (spacing 20 mm)
• Dimensions: 162 × 71 × 155 mm

SCOPE OF DELIVERY

• VSD tube clamp
