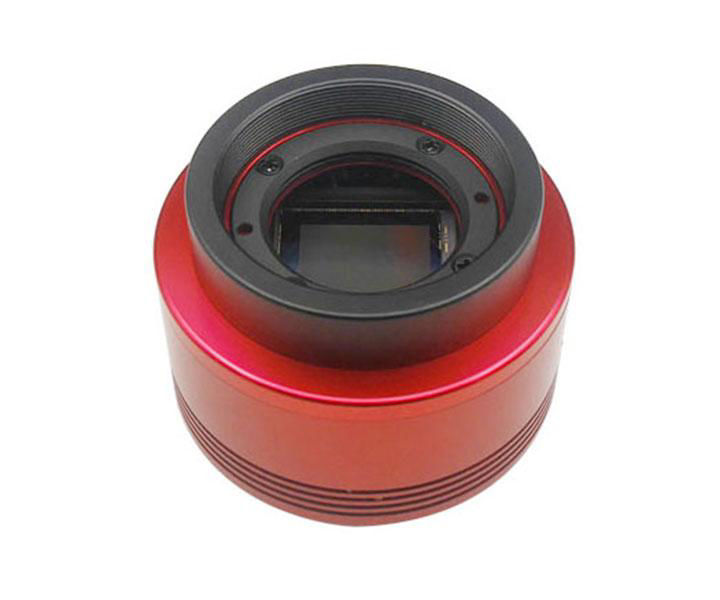

ZWO ASI294MC USB3.0 Colour CMOS Camera - Sensor D=23.2 mm, 4.63 mm Pixel Size

ZWO ASI294MC USB3.0 Colour CMOS Camera - Sensor D=23.2 mm, 4.63 mm Pixel Size

The ASI 294MC is the first camera with the newest Sony sensor IMX294CJK. Ideal astro camera for solar, lunar and planetary photography and for deep sky.

  • Sensor: Sony 4/3" CMOS Color Sensor IMX294CJK

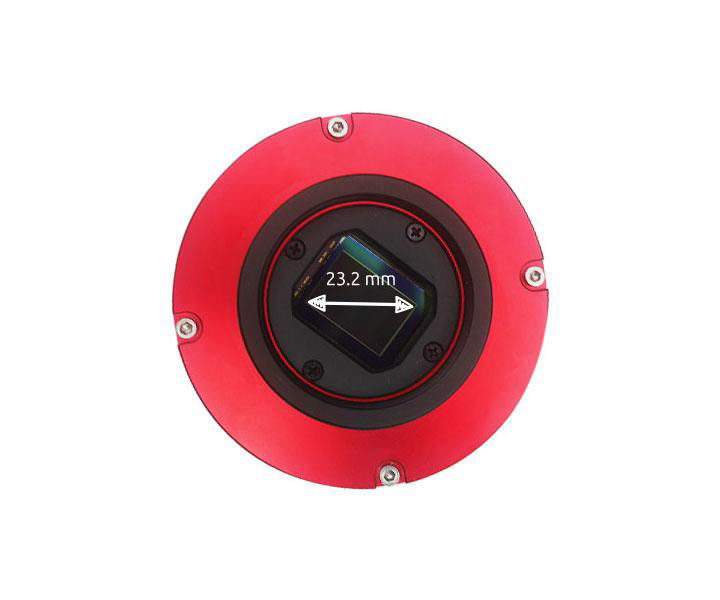

  • Sensor diagonal 23.2 mm (measured by ZWO)
  • Pixel: 4.63 µm pixel size - 4144 x 2822 pixels
  • Short download time through USB 3.0 - can also be used with USB 2.0
  • AR protection window built-in - full transmission even in infrared
  • Connection: T2, 1,25" and 2"
  • Extremely high sensitivity through "back-illuminated" sensor. QE more than 75%
  • You can photograph dim nebulae and galaxies with only 30 seconds exposure time.
  • Extremely short exposure times allows high-resolution images of sun, moon and planets. The seeing is "frozen".
  • Extensive scope of delivery
SKU : TSO-ASI294MC
Price: 899.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days (valid for new orders)
Product description

ASI cameras stand for very good workmanship and have modern CMOS sensors installed. This camera uses the state-of-the-art "back-illuminated" Sony IMX294CJK sensor.Sony specifies a sensor diagonal of 21.63 mm. However, measurements by ZWO have shown a true diagonal of 23.2 mm. The 4.3 µm pixels of the ZWO ASI294MC make this camera an all-rounder with highest sensitivity for short exposure times.The "single shot" color camera offers more comfort, compared with monochrome cameras. Not everyone wants to follow through the laborious L-RGB technique for beautiful colored nebula or planetary images. The color cameras offer a possibility to get beautiful images without changing filters.

Advantages and features of the ASI 294MC color camera:

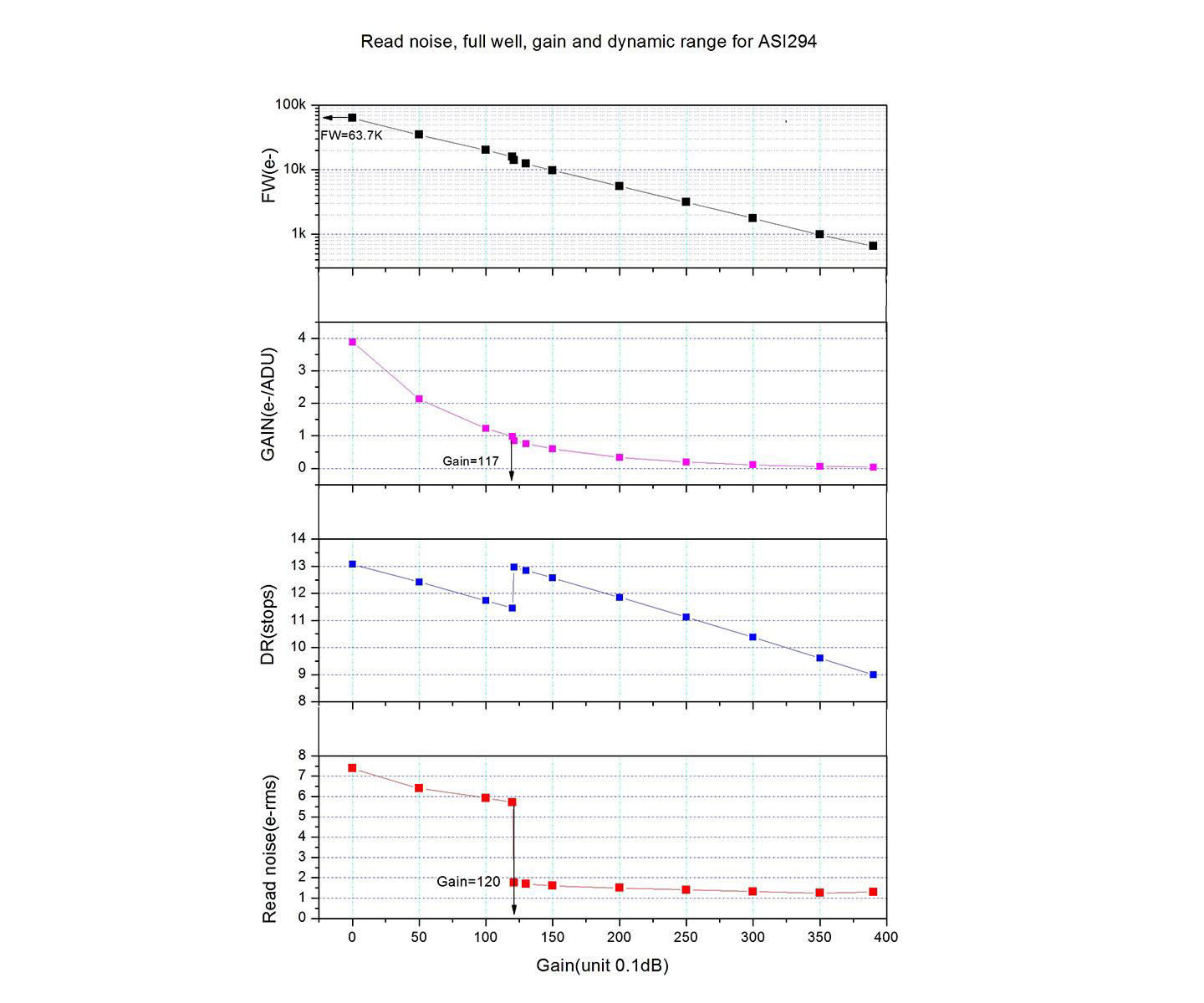

USB 3.0 for a fast download - can also be used with USB 2.0 Sensitive CMOS sensor with 23.2 mm diagonal Good resolution through 4.6 µm pixels Distance from T2 connection thread (female)to camera sensor: 17.5 mm Comes with AR protection window - full transmission also in IR. If infrared should be blocked, an IR-cut filter is necessary. Very high sensitivity - QE more than 75% - ideal astronomy camera for dim objects 14bit ADC HCG mode - if gain is higher than 120 (12 dB), read noise is reduced below 2e - result: low-noise images despite extremely high sensitivity. Full well capacity 63700e - even bright stars do not burn out anymore, you get a better signal-to-noise ratio. Adaptions, cables, ... are included in the scope of delivery

Application ranges of the camera:

  • Solar, lunar and planetary images: extremely short exposure times (due to high sensitivity) freeze the seeing.
  • Through the high resolution of the sensor, many details can be reproduced even at shorter focal length.
  • Video astronomy is also possible. Deep-sky images (nebulae and galaxies): Due to the high sensitivity, nebulae and galaxies are captured after only a few seconds.
  • Despite the camera is uncooled, it is possible to obtain low-noise images with high resolution.
  • By increasing gain (like the ISO setting of DSLR cameras), you can reduce exposure times below 30 seconds.
  • Effects from seeing or inaccuracies of the drive are eliminated.

Optimal support by APM Telescopes  before and after purchase:

We work with the cameras ourselves and can offer you optimal advice. Which camera matches your telescope, how do you achieve optimal adaption .... Due to our contacts, we offer best possible service also after purchase.

Downloads, drivers:

ZWO provides software and drivers online for free download.Software and drivers for all ZWO cameras

Frequently asked questions about ZWO cameras:

The FAQ area is constantly updated by ZWO, here you will find answers to many questions.FAQ about ZWO camerasZWO Users Forum

Manuals for ZWO products:

The manuals page is constantly updated by ZWO, here you can find user guides for ZWO products.Link to the manuals

How to clean my ZWO camera:

The manufacturer provides a manual that covers how to clean an ASI camera and regenerate the desiccant tablets: Please click here.

Astrophotographic results obtained with this camera on Astrobin

Here you can find some astrophotographs made with this camera model: Link to Astrobin

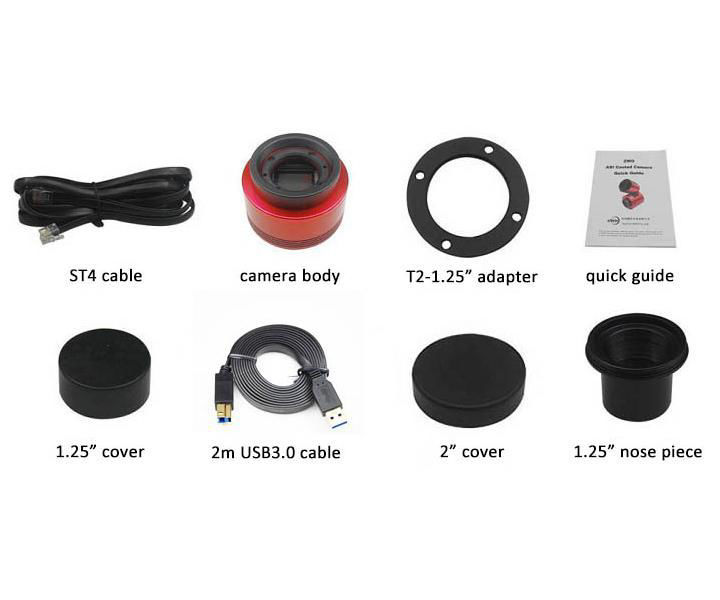

Scope of Delivery:

  • ASI camera
  • 1.25" nosepieceT2 - 1.25" thread adapter
  • Covers 1.25" and 2"
  • ST4 cable
  • USB3.0 cable
  • Quick quide
Sensor:4/3" CMOS Sony IMC294CJK
Resolution:11.7 megapixels, 4144*2822
Pixel size:4.63 µm
Sensor size:19.1 mm x 13.0 mm - 23.2 mm diagonal
Exposure time:32 µs to infinity
Sensor protection:Protective AR glass
Software demands:USB 3.0 should be supported by operating system
Bit rate:14 bit output
Telescope connection:T2, 2" and 1.25"
Distance T2-thread (female) to sensor:17.5 mm

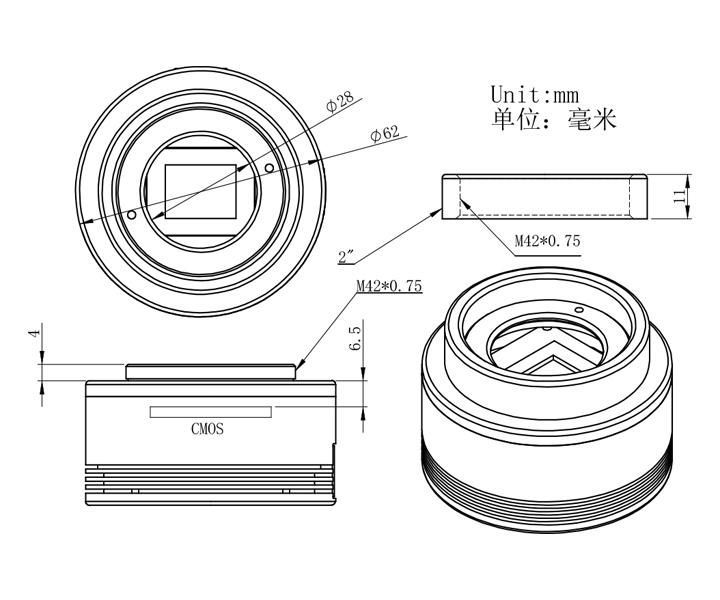

Dimensions:62 mm diameter and 36 mm length
Weight:120 grams
