Apochromatic Refractors

TS PHOTOLINE 96 mm f/6 triplet apochromat with color-clean image - high quality triplet objective from Japanese production.

• Aperture 96 mm / focal length 576 mm / focal ratio f/6
• Multi-coated 3-element lens with FCD100 APO element (similar to FPL53) from Hoya (Japan) for a color-pure image
• Lens including cell is made in Japan
• Internal baffles for higher contrast and against reflections
• 2.5" RAP dual-speed focuser with improved draw tube bearing - carries accessories up to 10 kg without shifting
• Connection for screw adaptations via M63x1 female thread, 2" and 1.25" receptacle
  Retractable dew shield for transport
• CNC tube rings, Vixen/EQ5 style dovetail bars on both sides and finder shoe are included in delivery
• Each apo is tested and optimized at our optical bench before shipping

TS PHOTOLINE 85 mm f/6 triplet apochromat with color-clean image - high quality triplet objective from Japanese production.

• Aperture 85 mm / focal length 510 mm / focal ratio f/6
• Multi-coated 3-element lens with FCD100 APO element (similar to FPL53) from Hoya (Japan) for a color-pure image
• Lens including cell is made in Japan
• Internal baffles for higher contrast and against reflections
• 2.5" RAP dual-speed focuser with improved draw tube bearing - carries accessories up to 10 kg without shifting
• Connection for screw adaptations via M63x1 female thread, 2" and 1.25" receptacle
• Retractable dew shield for transport
• CNC tube rings, Vixen/EQ5 style dovetail bars on both sides and finder shoe are included in delivery
• Each apo is tested and optimized at our optical bench before shipping

TS PHOTOLINE 106 mm f/6.6 triplet apochromat with color-clean image with high-quality triplet lens from Japanese production

• Aperture 106 mm / focal length 700 mm / focal ratio f/6.6
• Multi-coated 3-element lens with FCD100 APO element (similar to FPL53) from Hoya (Japan) for a color-pure image
• The lens including cell is made in Japan
• Lens is adjustable with pull and push screws
• Internal baffles for higher contrast and fewer reflections
• 3.5" dual-speed RAP focuser with improved bearing of the draw tube - supports cameras up to 10 kg without shifting
• Connection for screw adaptions via M63x1 female thread - 2" and 1.25" receptacle
• Powerful telescope also for observing with clear, high contrast image
• Retractable dew shield for transport
• CNC tube rings, Vixen/EQ5 style dovetail bar, carrying handle and finder shoe are included in the scope of delivery
• Each Apo is visually and mechanically inspected and tested before shipment
• Includes 3" 0.75x field corrector - improves focal ratio to f/4.95 with full correction to full frame


TS PHOTOLINE 106 mm f/6.6 triplet apochromat with color-clean image with high-quality triplet lens from Japanese production

• Aperture 106 mm / focal length 700 mm / focal ratio f/6.6
• Multi-coated 3-element lens with FCD100 APO element (similar to FPL53) from Hoya (Japan) for a color-pure image
• The lens including cell is made in Japan
• Lens is adjustable with pull and push screws
• Internal baffles for higher contrast and fewer reflections
• 3.5" dual-speed RAP focuser with improved bearing of the draw tube - supports cameras up to 10 kg without shifting
• Connection for screw adaptions via M63x1 female thread - 2" and 1.25" receptacle
• Powerful telescope also for observing with clear, high contrast image
• Retractable dew shield for transport
• CNC tube rings, Vixen/EQ5 style dovetail bar, carrying handle and finder shoe are included in the scope of delivery
• Each Apo is visually and mechanically inspected and tested before shipment

The TS 4-element 62mm aperture refractor is a versatile spotting scope and telescope, a 520mm telephoto objective and a powerful guide scope for astrophotography.

• aperture 62 mm
• Focal length 520 mm -- Focal ratio f/8.4
• 4-element design for sharp imaging of moon, planets and deep-sky objects, but also daytime observing
• a versatile travel telescope for observing and photography due to a flat field of view
• sensitive Crayford focuser for precise focusing with locking screw
• 1.25" connector and T2 connector for screw adaptations
• sufficient working distance for use of 1.25" amiciprism, zenith prism and of course photo adapters
• finder shoe for direction finders, optical finders or mini guide scopes
• Carrying case with plenty of space for accessories
• Retractable dew cap - transport length only 310 millimeters
• High quality workmanship "Made in Taiwan"

A versatile ED refractor telescope for observation and photography - usable as APO spotting scope, guiding scope and super finder scope.

• aperture 60 mm / focal length 360 mm / focal ratio f/6
• 2-element APO objective with Nissan Super ED glass as APO element
• Usable as angled finder with optional 1.25" star diagonal or Amici prisms with 1.25" helical focuser (non rotating)
• 360° rotation on the eyepiece and camera side
• Can be used as a straight view finder with 1.25" helical focuser - the extension is integrated and screwed into the tube
• 1.25" "non-rotating" helical focuser - screw-on - with locking screw
• With the optional TSMPT60-Flat 1.0x corrector, the ED refractor becomes a full 360 mm f/6 telephoto lens for photography and astrophotography with objective focusing
• Includes adjustable clamps and dovetail bar for finder holder with 1/4" female thread for photo tripods

The fast 50 mm refractor with the improved ED 50 mm objective can be used as a travel telescope, spotting scope and guiding scope.

• Excellent image due to the 50 mm f/4 ED lens with blackened edges
• Straight view and adaptation of star diagonal mirrors or Amici prisms possible due to detachable tube
• High-quality Crayford focuser with 1.25" compression ring and T2 connection - supports up to 2 kg
• CNC tube rings with multi-function plate included
  Telescope fits in standard finder shoes (Skywatcher, Vixen, GSO, TS-Optics ...)
• 3/8" photo thread is available at the base. With a 1/4" reducer the adaption to any tilt and ball heads is also possible

The TS 110 mm ED with 770 mm focal length is a transportable telescope for astrophotography and for observing with good color correction.

• Aperture 110 mm / focal length 770 mm / focal ratio f/7
• ED Dublet objective with glass from Ohara (Japan)
• Good correction of color error by ED element up to magnifications around 220x
• Stable 2.5" RAP focuser with 2", 1.25" ring clamp and auxiliary thread for screw adaptions
  Dual-speeed and 360° rotation of the focuser - important for astrophotography
• 0.8x reducer and corrector for astrophotography specially calculated for the TS 110 mm f/7 ED available
• Only 65 cm transport length and 6.8 kg weight - is well supported by a mount of the EQ5 class
• Optimized CNC tube with retractable dew cap and CNC clamps with M6 female thread connection
• Vixen level dovetail bar with photo tripod connection thread included

The fast 110 mm ED APO offers good chromatic correction through two special glasses, it is designed for observation and astrophotography.

• Aperture 110 mm / focal length 660 mm / focal ratio f/6
• 2-element APO objective with FPL51 and Lanthanum glass from Ohara-Optics
• Full multicoating for high contrast
• 2.7" RAP focuser with ball bearing, 360° rotation and micro reduction
• M74x1 female thread for screw adaptions
• CNC tube rings - aluminium tube - retractable dew shield
• Aluminium carrying case
• Made in Taiwan

An ultimate and compact APO refractor for astrophotography and observation.

• Aperture 110 mm / focal length 528 mm / focal ratio f/4.8
• FCD100 triplet lens with f/6 - chromatic correction comparable to FPL53 triplet
• 4-element 0.8x corrector with M48 camera connection and working distance of 55 mm included - designed for this lens for highest field sharpness
• 2" filter thread and 360° rotation included
• 2" Visual-Back can be screwed to the focuser instead of the corrector for observation - working distance suitable for 1.25" and 2" accessories
• Delivery in high-quality carrying case
• Each apo is tested (cosmetics, optics and mechanics) at Teleskop-Service before shipment, the optics are collimated. The apo is shipped with a checklist.

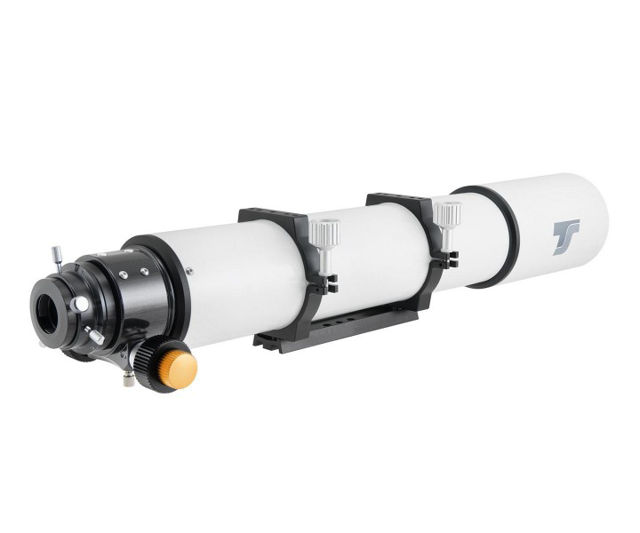

The TS 102 mm f11 SDP Apo offers excellent chromatic aberration correction by pairing FPL53 with additional special glass

• Very good correction of chromatic aberrations by a 2-element APO lens with FPL53 from Ohara and an additional special glass
• Very good correction also in the violet color range, where faster SD-Apos give in a bit
• Even at 250-300x sharpness is maintained
• Adjustable lens mount
• Improved 2.5" rack and pinion RAP focuser with photo thread, 2" and 1.25" adaption
• Retractable dew shield for better transport and optimal protection against stray light
• Deluxe finder holder for adapting finder telescopes
• Binoviewers can be used without path compensation
• CNC tube rings and EQ5 style dovetail bar included
• With only 4.6 kg the ED is well supported by mounts like the Skywatcher EQ5
• Each TS Apo is individually tested before shipping (optics, mechanics, cosmetics), a checklist is attached.

The compact FS-60CB Apo can be upgraded to a 60/600 f/10 quadruplet Apo with this 1.7x Q module. Optically, this version is superior to the FS-60CB ...

• Extension factor: 1.7x
• Number of lenses: 2

Takahashi offers matching 1:7 microfocusers for all telescopes with normal focusers.

• TOA-130(N)S
• TSA-102, TSA-120
• FC-76DS, FC-76DC
• FS-60CB, FS-60Q, FS-60C, FOA-60(Q)
• FS-60CB, FC-76DP
• SKY90
• FS-78, 102, 128N
• FC-65, 76, 100, 100N, 125N
• FCT-65
• MT-130, 160, 200
• Epsilon 130, 160, 180
• Mewlon mit Okularauszug TKA00700

Takahashi Extension Tube (FL), Short Distance Ring

• Connection (object side): M56x0,75(neg)
• Connection (observer side): M56x0,75(pos)
• lightpass: 17,5mm
• Shipping weight:  1kg

Takahashi offers rotating camera mounts for its telescopes, which are necessary because most of the company's focusers are not rotatable. However, this rotator also makes sense visually, as it allows the ZSP or other accessories to be conveniently rotated into the desired position. The quality is so high that there is no play even when the screw is loosened.

• Connection on the telescope side: M56x0.75 internal thread
• Connection on the camera side: M56x0.75 external thread
• Light path: 12.3 mm
• Weight: 110 g

This extender is suitable for the Takahashi fluorite apochromats FS-60CB, FS-60Q, FC-76D (both versions), FC-76Q, and FC-100D (all versions). However, it is also compatible with the older Sky-90 and FSQ-106 fluorite models, which are no longer manufactured. Of course, it can also be used with many other devices as a moderate focal length extension.

•  Connection: M43x0.75(pos)
• Extension factor: 1.6x
• Number of lenses: 5

The powerful ED apo is suitable for observing and astrophotography with an high-contrast image.

• 150 mm aperture, 1200 mm focal length, focal ratio f/8
• High image quality thanks to extra-low dispersion glass FPL53 (Ohara, Japan) and matching glass from Schott
• Highly effective coating for maximum transmission and minimum reflections
• Large rack and pinion focuser with 11:1 reduction for sensitive focusing
• 360° rotation adapter
• Tube in traditional white - heats up less during the day and is more visible at night

• Objective Lens Diameter: 80mm
• Telescope Focal Length: 600mm (f/7.5)
• Dual-Speed 11:1 2” Crayford Focuser (Backlash-Free)
• 2.8" Indexed Focuser Drawtube with 360º Rotatable Adaptor
• Multi-Coated Objective Lens with MHTC coatings
• Image Height 30mm (with optional reducer/flattener)
• Retractable Dew Shield
• Drawtube Adaptor to accept 2" Star Diagonal
• Finderscope Mounting Shoe (compatible with ALL Sky-Watcher finderscopes)
• Supplied with Tube Rings with Carrying handle

120mm (4.75”) f/900 ED Apochromatic Refractor Telescope

• 120 mm aperture, 900 mm focal length, focal ratio f/7.5
• High image quality thanks to extra-low dispersion glass FPL53 (Ohara, Japan) and matching glass from Schott
• Highly effective coating for maximum transmission and minimum reflections
• Large Crayford focuser with 11:1 reduction for sensitive focusing
• 360° rotation adapter
• Tube in traditional white - heats up less during the day and is more visible at night

100 mm (4”) f/700 ED apochromatic refractor telescope

• Maximum useful magnification: 200x
• Aperture: 100 mm
• Focal length: 700 mm (f/7)
• Dual-speed 11:1 2" Crayford focuser
• 2.8" extension tube with scale and 360º rotation adapter
• Multi-coated lens with MHTC coating
• Slide-in dew cap
• 2" eyepiece connection
• Viewfinder shoe compatible with all Sky-Watcher viewfinders
• Tube rings with handle
• 45 mm prism rail
• Aluminium OTA with light shields
• OTA length: 570 mm (dew cap inserted), 675 mm (dew cap extended)
• OTA weight: 5.5 kg

Translated with DeepL.com (free version)

The Esprit-70EDX from Skywatcher offers the highest optical and mechanical quality and is optimized for astrophotography.

• Aperture 70 mm
• Focal length 490 mm (f/7)
• Triplet apo objective with FCD100 ED element
• Improved 2.8" dual-speed focuser for high payload
• 360° rotation
• 2" connection with additional thread for screw adaptations
• Retractable dew shield
• Carrying handle, Vixen GP style dovetail bar, carrying case

The Esprit-150EDX from Skywatcher offers the highest optical and mechanical quality and is optimized for astrophotography.

• Aperture 150 mm
• Focal length 1050 mm (focal ratio f/7)
• Triplet apo objective with FPL53 ED element
• Improved 3" dual-speed focuser for high payload
• 360° rotation
• 2" connection with additional thread for screw adaptations
• Retractable dew shield
• Carrying handle, Losmandy style dovetail bar, carrying case

The Esprit-120EDX from Skywatcher offers the highest optical and mechanical quality and is optimized for astrophotography.

• Aperture 120 mm
• Focal length 840 mm (focal ratio f/7)
• Triplet apo objective with FPL53 ED element
• Improved 3" dual-speed focuser for high payload
• 360° rotation
• 2" connection with additional thread for screw adaptations
• Retractable dew shield
• Carrying handle, Losmandy style dovetail bar, carrying case

The Esprit-100EDX from Skywatcher offers the highest optical and mechanical quality and is optimized for astrophotography.

• Aperture 100 mm
• Focal length 550 mm (focal ratio f/5.5)
• Triplet apo objective with FPL53 ED element
• Improved 3" dual-speed focuser for high payload
• 360° rotation
• 2" connection with additional thread for screw adaptations
• Dew shield (fixed)
• Carrying handle, Losmandy style dovetail bar, carrying case
